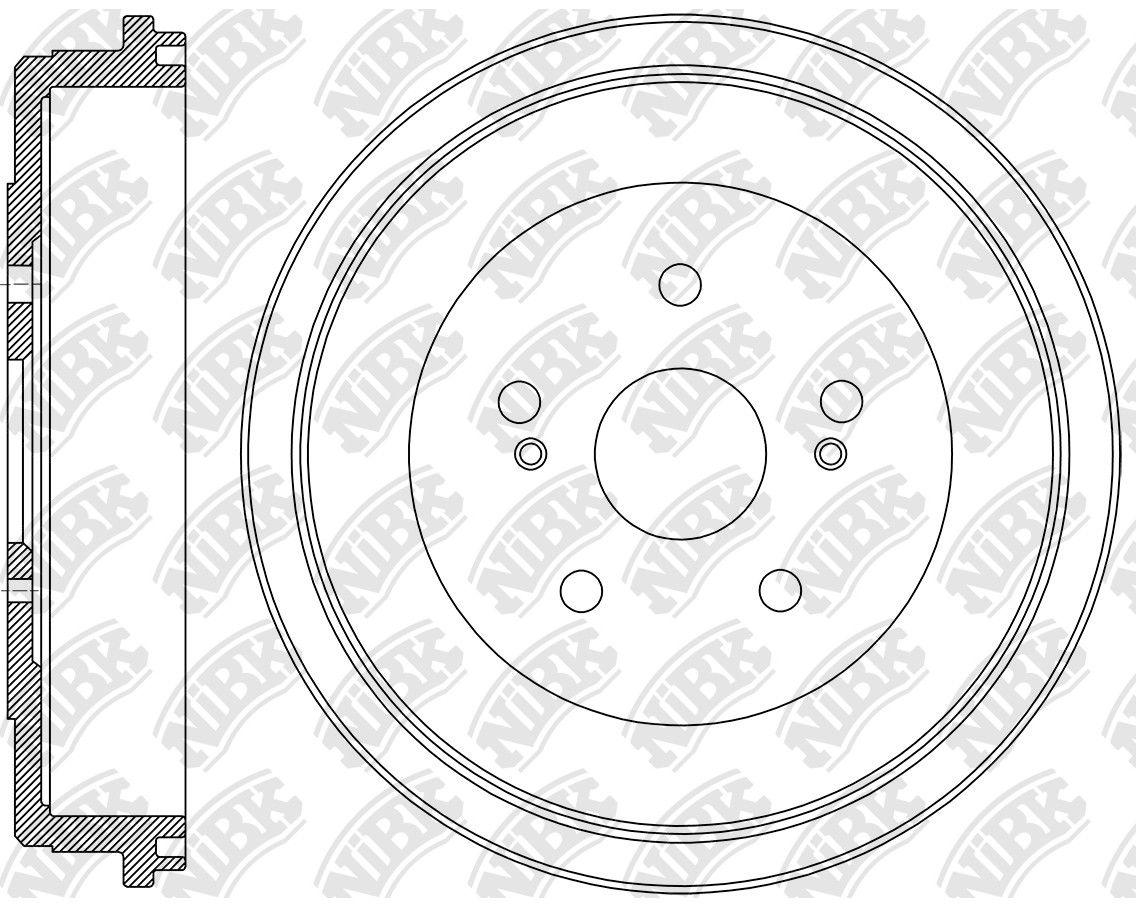

DRUM BRAKE » DN1406

DN1406

Specification

Outter Ø
302
Num. of holes
5
Hole Ø
12.7
Centering Diameter
62
Height
61.3
Pitch Circle Ø
114.3
Drum Ø
254
Structure Material
G3000

Cross Reference

SUZUKI
43511-65J00
SUZUKI
43511-65J00-000
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

SUZUKI   »   Grand Vitara

04.05~08.12 1600 M16A JB416X RN1371V PN9802 DN1406 FN9970
08.08~08.12 1600 M16A JB416X-4 RN1371V PN9802 DN1406 FN9970
08.12~07.16 1600 M16A JB416X-7 RN1371V PN9802 DN1406 FN9970
09.05~08.08 2000 J20A JB420W-2 RN1371V PN9802 DN1406 FN9970
06.05~07.16 2000 J20A JTD54V RN1371V PN9802 DN1406 FN9970
01.06~01.14 2000 J20A JTE54V RN1371V PN9802 DN1406 FN9970
01.05~12.15 2000 J20A TD54V RN1371V PN9802 DN1406 FN9970
06.01~09.08 2700 H27A JTD94V RN1371V PN9802 DN1406 FN9970

SUZUKI   »   Grand Vitara (USA)

09.05~01.09 2700 H27A TE94 RN1371V PN9802 DN1406 FN9970
