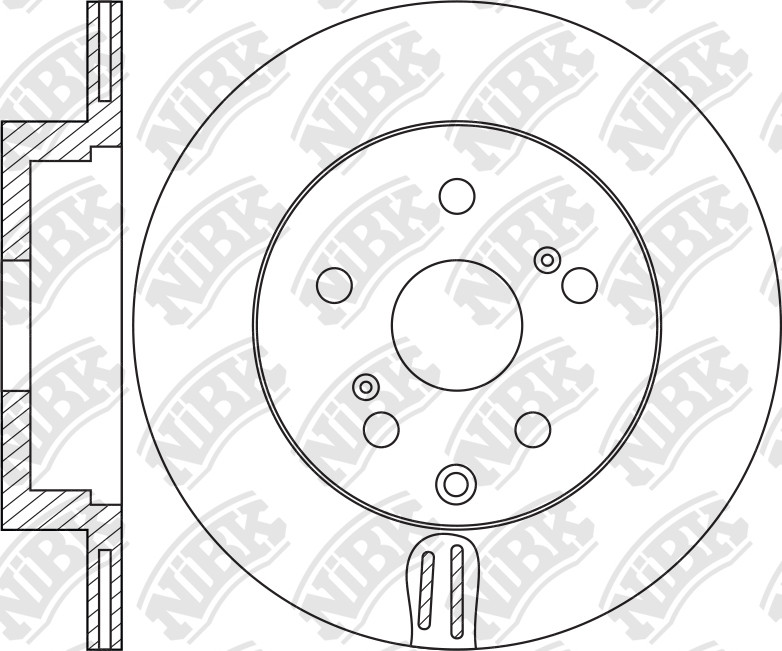

ROTOR DISC » RN1522V
Specification
Type
Vented
Disc Thickness (Max)
16
Num. of holes
5
Height
57
Centering Diameter
62
Front/Rear
Front
Pitch Circle Ø
114.3
Outter Ø
308
Drum Ø:
200
Disc Thickness (Min)
14
Structure Material
G3000
Variation
Cross Reference
SUZUKI
55611-77K00
SUZUKI
55611-77K01
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 04.05~08.08 | 1900 | F9Q# | TD44 | RN1371V | PN9802 | RN1522V | PN2466 | FN0662 |
| 08.08~07.19 | 2000 | J20A | GR NOMADE | RN1371V | PN9802 | RN1522V | PN2466 | FN0662 |
| 08.08~07.12 | 2000 | J20A | JB420W-5 | RN1371V | PN9802 | RN1522V | PN2466 | FN0662 |
| 07.12~07.19 | 2000 | J20A | JB420W-8 | RN1371V | PN9802 | RN1522V | PN2466 | FN0662 |
| 01.10~07.19 | 2400 | J24B | GR NOMADE | RN1371V | PN9802 | RN1522V | PN2466 | FN0662 |
| 01.06~07.16 | 2400 | J24B | JB424W RHD | RN1371V | PN9802 | RN1522V | PN2466 | FN0662 |
| 08.08~01.10 | 2400 | J24B | JB424W-4 LHD | RN1371V | PN9802 | RN1522V | PN2466 | FN0662 |
| 01.10~08.12 | 2400 | J24B | JB424W-5 LHD | RN1371V | PN9802 | RN1522V | PN2466 | FN0662 |
| 08.12~03.14 | 2400 | J24B | JB424W-7 LHD | RN1371V | PN9802 | RN1522V | PN2466 | FN0662 |
| 03.14~08.16 | 2400 | J24B | JB424W-8 LHD | RN1371V | PN9802 | RN1522V | PN2466 | FN0662 |
| 03.14~08.16 | 2400 | J24B | JB424W-8 LHD 3DR | RN1371V | PN9802 | RN1522V | PN2466 | FN0662 |
| 01.09~08.16 | 2400 | J24B | JB424X-6 | RN1371V | PN9802 | RN1522V | PN2466 | FN0662 |
| 03.08~08.12 | 3200 | N32A | TD1D LHD | RN1371V | PN9802 | RN1522V | PN2466 | FN0662 |
| 08.08~08.12 | 3200 | N32A | TDB4V RHD | RN1371V | PN9802 | RN1522V | PN2466 | FN0662 |
