MOTORCYCLE BRAKE PADS » PM538

PM538

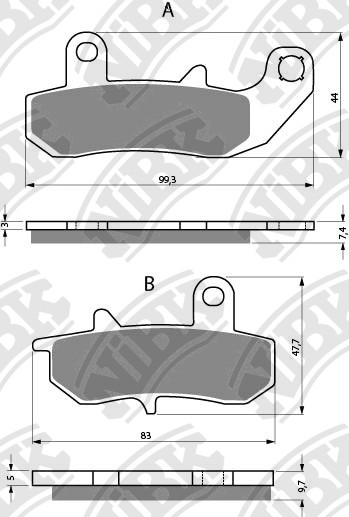

Specification

Length-1
99.3
Width-1
44
Thick-1
7.4
Length-2
83
Width-2
47.7
Thick-2
9.7
TYP
R

Cross Reference

SUZUKI
69100 12B10
SUZUKI
69100 44860
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

SUZUKI   »   DR-600

01.89~ 600 PM106 PM538

SUZUKI   »   DR-650

01.90~01.95 650 PM106 PM538
01.92~ 650 PM106 PM538

SUZUKI   »   DR-750

01.89~01.90 750 PM106 PM538

SUZUKI   »   DR-800

01.90~01.90 800 PM106 PM538

SUZUKI   »   RG-125

01.92~ 125 PM058PM529 PM538PM039

SUZUKI   »   RG-200

01.91~ 200 PM058 PM538

YAMAHA   »   DT-125

01.89~01.90 125 PM534 PM538

YAMAHA   »   DTZ-125

01.90~ 125 PM538
