NiBK Brakes:: Application Cross Reference and Image for NiBK : BRAKE PADS : PN0426

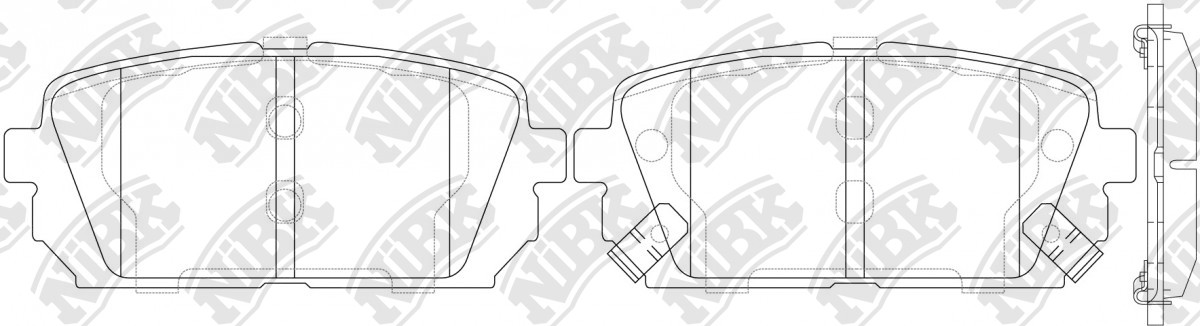

BRAKE PADS » PN0426

Specification

Length-1

100.6

Width-1

44

Thickness-1

15

Pcs In Set

4

Brake System

Mando

Cross Reference

BENDIX AUS

DB2175

FMSI

D1296-8413

HYUNDAI

58302-1DA50

HYUNDAI

58302-3SA30

KASHIYAMA

D11233M

KIA

58302-1DA00

KIA

58302-1DA01

KIA

58302-1DE00

KIA

58302-1DE01

WVA

24491

WVA

24492

WVA

24493

years	Eng	Eng No	Body	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

HYUNDAI » i45

01.10~04.14

2400

G4KJ

EC41 ARL

RN1348V

PN0052

RN1476

PN0426

FN11008

KIA » Carens

06.10~12.12	1600	D4FB	UN	RN1412V RN1174V	PN0052		PN0426	FN0731
08.09~12.12	1600	G4FC	UN	RN1412V RN1174V	PN0052		PN0426	FN0731
10.06~12.12	2000	D4EA	FG	RN1174V	PN0052		PN0426	FN0731
01.06~11.06	2000	G4KA	BK	RN1174V	PN0052		PN0426	FN0731
10.06~12.12	2000	G4KA	FG LHD	RN1174V	PN0052		PN0426	FN0731
10.06~12.12	2000	G4KA	FG RHD	RN1174V	PN0052		PN0426	FN0731

KIA » Rondo

06.06~01.12	2400	G4KE	UN06	RN1174V	PN0052		PN0426	FN0731
06.06~01.12	2700	G6EA	UN06	RN1174V	PN0052		PN0426	FN0731
