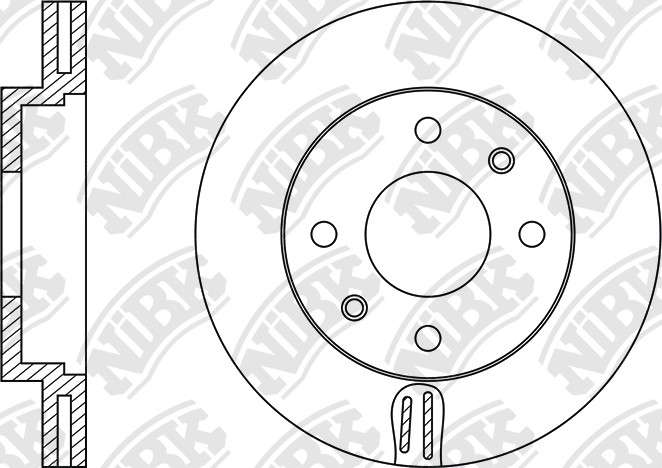

ROTOR DISC » RN1230V

Specification

Type
Vented
Disc Thickness (Max)
24
Num. of holes
4
Height
46.7
Centering Diameter
69
Pitch Circle Ø
114.3
Front/Rear
Front
Outter Ø
257
Drum Ø:
142
Disc Thickness (Min)
22.4
Structure Material
G3000

Cross Reference

BENDIX EUR
562459B
HYUNDAI
51712-2D300
HYUNDAI
51712-38300
HYUNDAI
517122D310
HYUNDAI
517122D370
HYUNDAI
5171238100
KIA
51712-2F000
KIA
51712-3C000
KIA
51712-3C100
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
04.00~12.07 2000 D4EA XD RN1230V PN0788 RN1130 PN2130
04.00~03.06 2000 G4GC XD RN1230V PN0788 DN1478RN1130DN1467 FN11158PN2130
01.90~05.95 1600 G4CR J1 RN1230V PN0788PN0419 DN1461RN1130 FN11158PN2130
02.01~11.06 1600 G4ED PN81 RN1230V PN0788 DN1478 FN11158
11.06~01.11 1600 G4ED PN81 RN1230V PN0788 DN1478 FN11158
02.01~11.06 1800 G4GB PN81 RN1230V PN0788 DN1478 FN11158
11.06~01.11 1800 G4GB PN81 RN1230V PN0788 DN1478 FN11158
03.98~02.01 2000 G4JP EF RN1230V PN2245PN0377 RN1175DN1449 FN0612PN0539 FN0661
02.01~06.06 2000 G4JP EF RN1230V PN2245PN0377 RN1175 PN0436PN0539 FN0661
03.98~02.01 2500 G6BV EF RN1230V PN2245 RN1175 PN0539
01.04~01.06 1600 G4ED FE22 RN1799VRN1230V PN0788PN0060 DN1501 PN2130FN11189
01.04~01.08 1600 G4ED FE24 RN1230VRN1799V PN0788PN0060 DN1501 FN11189PN2130
03.04~01.09 1600 G4FC FE24 RN1799VRN1230V PN0060 DN1501 PN2130FN11189
03.00~04.06 2000 G4JP GD RN1230V PN2245PN0377 FN0612
03.00~04.06 2500 G6BV GD RN1230V PN2245PN0377 RN1175DN1449 PN0539FN0612 FN0661

Exemption from liability: the catalog data is advisory and can be used for reference only
