ROTOR DISC » RN1088V

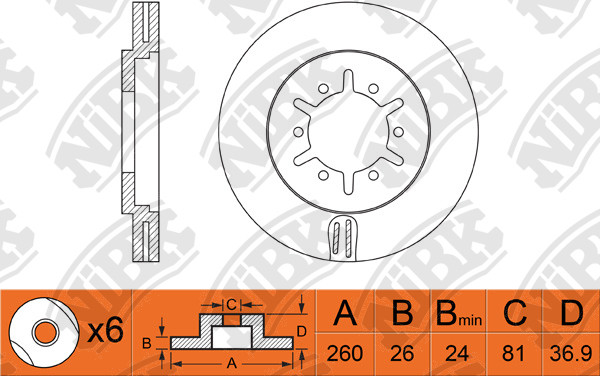

Specification
Type
Vented
Disc Thickness (Max)
26
Num. of holes
6
Height
36.9
Centering Diameter
81
Front/Rear
Front
Pitch Circle Ø
103
Outter Ø
260
Drum Ø:
142
Disc Thickness (Min)
24
Structure Material
G3000
Cross Reference
NISSAN
40206-02N00
NISSAN
40206-02N01
NISSAN
40206-09G01
NISSAN
40206-09G02
NISSAN
40206-5T500
NISSAN
4020609G03
NISSAN
40206VY10A
NISSAN
D0206-02N0M-VA
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 06.99~06.07 | 2000 | KA20DE | H2F23 | RN1088V | PN2344 | DN1296 | FN1174FN1163 | |
| 06.95~06.99 | 2500 | TD25 | N4F23 | RN1088V | PN2344 | DN1303 | FN1163 | |
| 01.92~08.04 | 2700 | TD27 | P_F23 | RN1893VRN1333VRN1088V | PN2105PN2204PN2344 | DN1296DN1303 | FN2280FN1163FN1174FN1179 |
| 07.92~01.03 | 2700 | TD27 | F23 | RN1088V | FN1159PN2204 | DN1303 | FN1163 | |
| 10.97~01.11 | 3200 | QD32 | F23 | RN1893VRN1088V | PN2204PN2344 | DN1303 | FN1163 |
| 08.90~05.97 | 2700 | TD27 | VRE24 | RN1333VRN1088V | PN2105PN2344 | DN1289DN1296 | FN1171FN1174 | |
| 05.97~05.01 | 3200 | QD32 | CWGE24 | RN1452VRN1088V | PN2344 | DN1296 | FN1174 | |
| 08.96~04.01 | 3200 | QD32 | VWE24 | RN1452VRN1088V | PN2344 | DN1296 | FN1174 |
| 01.97~06.99 | 2400 | KA24E | FMD22 | RN1088VRN1028V | PN2344 | DN1296DN1302 | FN1189FN1174 | |
| 06.99~08.02 | 2700 | TD27 | LBD22 | RN1088V | PN2344 | DN1296 | FN1174 |
| 09.09~11.09 | 2400 | KA24DE | LCD22T | RN1088VRN1452VRN1028V | PN2344 | DN1302DN1296 | FN1189FN1174 | |
| 09.09~11.09 | 2500 | YD25DDTI | LCD22T | RN1226VRN1452VRN1088V | PN2344PN0372 | DN1302DN1296 | FN1189FN1174 |
| 11.01~01.08 | 2400 | KA24DE | D22 | RN1226VRN1452VRN1088V | PN2344PN0372 | DN1302DN1296 | FN1174FN1189 | |
| 04.92~02.98 | 2400 | KA24E | D21 | RN1088VRN1028V | PN2344 | DN1296DN1302 | FN1174FN1189 | |
| 02.98~11.01 | 2400 | KA24E | D22 | RN1028VRN1088VRN1452V | PN2344 | DN1296DN1302 | FN1189FN1174 | |
| 02.98~11.01 | 2500 | TD25 | D22 | RN1452VRN1088V | PN2344 | DN1296 | FN1174 | |
| 11.01~11.11 | 2500 | YD25DDTI | D22 LHD | RN1452VRN1088VRN1226V | PN2344PN0372 | DN1296DN1302 | FN1174FN1189 | |
| 11.01~11.11 | 2500 | YD25DDTI | D22 RHD | RN1088VRN1226VRN1452V | PN2344PN0372 | DN1296DN1302 | FN1189FN1174 | |
| 01.08~01.12 | 2500 | YD25DDTI | LCD22 | RN1452VRN1088VRN1226V | PN2344PN0372 | DN1302DN1296 | FN1174FN1189 |
| 02.97~03.12 | 2400 | KA24DE | D22 | RN1452VRN1815VRN1333VRN1028VRN1088V | PN2344PN2105 | DN1296DN1302 | FN1174FN1189 | |
| 02.97~07.05 | 2400 | Z24S | D22 GL | RN1815VRN1088VRN1452VRN1028VRN1333V | PN2344PN2105 | DN1302DN1296 | FN1174FN1189 | |
| 11.01~03.12 | 2500 | YD25DDTI | D22 GR | RN1226VRN1088V | PN0372PN2344 | DN1296DN1302 | FN1174FN1189 |
| 01.08~11.21 | 2400 | KA24 | LCD22S | RN1226VRN1088VRN1028V | PN0372PN2344 | DN1296DN1302 | FN1189FN1174 | |
| 10.09~08.18 | 2700 | TD27 | D22SS | RN1088V | PN2344PN2105 | DN1296 | FN1174 |
| 01.97~12.06 | 2400 | KA24DE | D22 | RN1028VRN1088V | PN0372PN2344 | DN1296 | FN1189FN1174 | |
| 11.85~09.94 | 2400 | KA24E | D21 | RN1088VRN1333V | PN2344PN2105 | FN1189FN1174 | ||
| 09.94~09.97 | 2400 | KA24E | D21U | RN1088VRN1333V | PN2344PN2105 | FN1174FN1189 | ||
| 01.97~06.99 | 2400 | KA24E | D22 | RN1088VRN1028V | PN2344 | DN1302DN1296 | FN1174FN1189 | |
| 01.97~12.06 | 2500 | YD25DDTI | D22 | RN1226VRN1088V | PN2344PN0372 | DN1302DN1296 | FN1174FN1189 | |
| 01.97~12.04 | 2700 | TD27 | D22 | RN1088VRN1333V | PN2105PN2344 | DN1296 | FN1174 |
| 11.85~08.89 | 3000 | VG30 | D21 | RN1088VRN1028V | PN2344 | DN1289DN1303DN1296 | FN1171FN1163FN1174FN1162 | |
| 08.89~09.94 | 3000 | VG30E | D21 | RN1028VRN1088V | PN2344 | DN1302DN1296DN1289 | FN1189FN1174 | |
| 09.94~01.96 | 3000 | VG30E | D21U | RN1088VRN1028V | PN2344 | DN1302DN1296 | FN1189FN1174 |
| 01.86~06.97 | 2000 | NA20S | E24 | RN1333VRN1088V | PN2105PN2344 | DN1296 | FN1174 | |
| 11.86~12.97 | 2300 | TD23 | E24 | RN1333VRN1088V | PN2105PN2344 | DN1289DN1296 | FN1174FN1171 | |
| 05.89~11.95 | 2400 | Z24I | E24 | RN1088V | PN2344 | DN1296 | FN1174 | |
| 01.86~12.97 | 2400 | Z24S | E24 | RN1088V | PN2344PN2105 | DN1296 | FN1174FN1171 | |
| 01.86~12.97 | 2500 | TD25 | E24 | RN1088VRN1333V | PN2344PN2105PN2475 | DN1296DN1289 | FN1174FN1171 | |
| 01.97~12.02 | 2700 | TD27 | VE24 | RN1088V | PN2344 | DN1296 | FN1174 |
