ROTOR DISC » RN1027V

RN1027V

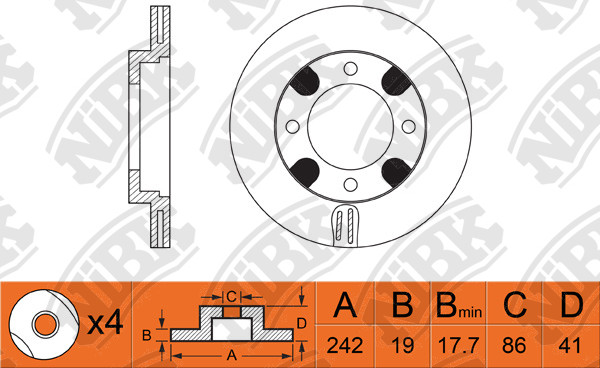

Specification

Type
Vented
Disc Thickness (Max)
19
Num. of holes
4
Height
41
Centering Diameter
86
Front/Rear
Front
Outter Ø
242
Pitch Circle Ø
104
Drum Ø:
119.5
Disc Thickness (Min)
17.5
Structure Material
G3000
Hole Ø:
M10x1.25

Cross Reference

BENDIX
561521B
BENDIX EUR
561521B
HYUNDAI
5171221350
HYUNDAI
5171221B00
HYUNDAI
5171224100
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

HYUNDAI   »   Accent

04.94~08.99 1300 G4EH X3 RN1027V PN0091 DN1469DN1466 FN11162
04.02~06.06 1500 D3DA C# RN1027V PN0091 FN11909
09.99~10.02 1500 G4#K CF RN1027V PN0091 FN11909
09.99~10.02 1500 G4#K CG RN1027V PN0091 DN1473DN1471 FN11189FN11909
04.94~08.99 1500 G4EK 4DR SDN LHD RN1027V PN0091 DN1466DN1469 FN11162
04.94~08.99 1500 G4EK 4DR SDN RHD RN1027V PN0091 DN1469DN1466 FN11162
04.94~08.99 1500 G4EK 5DR HB LHD RN1027V PN0091 DN1466DN1469 FN11162
04.94~08.99 1500 G4EK 5DR HB RHD RN1027V PN0091 DN1466DN1469 FN11162

HYUNDAI   »   Accent (USA)

01.00~01.04 1600 G4ED-G LC RN1027V PN0091 FN11909

HYUNDAI   »   Pony

09.94~12.99 1300 G4EH X2 RN1027V PN0091 FN11162
09.94~12.99 1500 G4EK X2 RN1027V PN0091 FN11162
09.94~12.99 1500 G4EK X3 RN1027V PN0091 FN11162

HYUNDAI   »   S-Coupe

09.92~06.96 1500 G4EK VE3N RN1027V PN0091 DN1500 FN11162
