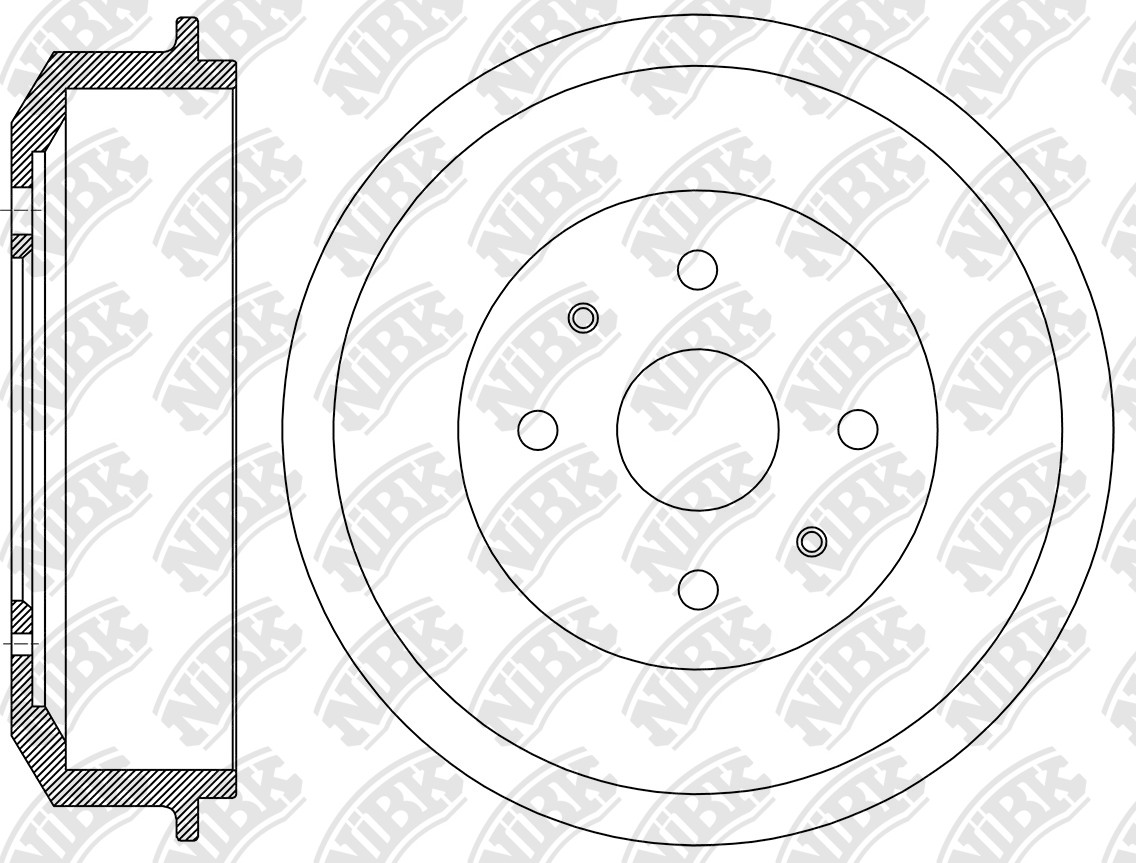

DRUM BRAKE » DN1466

Specification

Outter Ø
216
Num. of holes
4
Hole Ø
12.8
Centering Diameter
90
Height
58.6
Pitch Circle Ø
114.3
Drum Ø
180
Structure Material
G3000

Cross Reference

HYUNDAI
58411-22000
HYUNDAI / KIA
58411-22010
HYUNDAI / KIA
58411-22020
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
04.94~05.96 1300 G4EH X3 RN1027V PN0091 DN1466DN1469 FN11162
04.94~05.96 1500 G4EK 4DR SDN LHD RN1027V PN0091 DN1466DN1469 FN11162
04.94~05.96 1500 G4EK 4DR SDN RHD RN1027V PN0091 DN1469DN1466 FN11162
04.94~05.96 1500 G4EK 5DR HB LHD RN1027V PN0091 DN1466DN1469 FN11162
04.94~05.96 1500 G4EK 5DR HB RHD RN1027V PN0091 DN1469DN1466 FN11162

Exemption from liability: the catalog data is advisory and can be used for reference only
