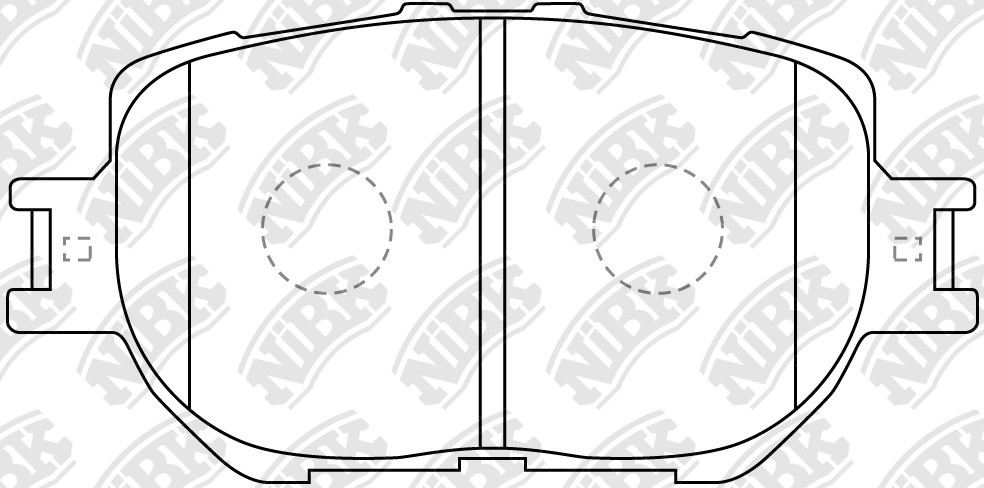

BRAKE PADS » PN1550
Specification
Length-1
117.6
Width-1
58.5
Thickness-1
17.3
Pcs In Set
4
Cross Reference
AKEBONO
AN-636K
FMSI
D1733-8957
HITACHI
NDP399
KASHIYAMA
D2193
KASHIYAMA
D219302
KASHIYAMA
D2193H
KASHIYAMA
D2242
KASHIYAMA
D224202
TOYOTA
04465-30280
TOYOTA
04465-30300
TOYOTA
04465-30330
TOYOTA
04465-30480
TOYOTA
04465-30480-79
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 04.13~08.15 | 2500 | 4GR-FSE | GSE30L | RN1258V | PN1829PN1550 | RN1438 | PN1846 | FN0659 |
| 04.13~08.15 | 2500 | 4GR-FSE | GSE30R | RN1258V | PN1550 | RN1438 | PN1846 | FN0659 |
| 04.13~08.15 | 2500 | 4GR-FSE | GSE35 | RN1258VRN1150V | PN1324PN1550PN1829 | RN1438 | PN1846PN1421 | FN0659 |
| 04.13~ | 2500 | 2AR-FSE | AVE30 | RN1258V | PN1550PN1829 | RN1438 | PN1846 | FN0659 |
| 08.15~09.20 | 2500 | 2AR-FSE | AVE35 | RN1244VRRN1258VRN1244VSETRN1244VL | PN1547PN1550 | RN1438 | PN1868PN1846 | FN0659 |
| 10.98~07.05 | 2000 | 1G-FE | GXE10 | RN1305VRN1150V | PN1550PN1228PN1324 | RN1485RN1225 | PN1421 | FN0692 |
| 06.01~07.05 | 2000 | 1G-FE | GXE10W | RN1305VRN1150V | PN1324PN1550 | RN1485RN1225 | PN1421 | FN0692 |
| 10.98~07.05 | 2000 | 3S-GE | SXE10 | RN1150VRN1305V | PN1324PN1550 | RN1485RN1225 | PN1421 | FN0567 |
| 05.01~06.07 | 2500 | 1JZ-FSE | JCG10 | RN1305V | PN1550 | RN1485 | PN1421 | FN0692 |
| 05.01~06.07 | 3000 | 2JZ-FSE | JCG11 | RN1305V | PN1550 | RN1485 | PN1421 | FN0692 |
| 09.99~12.03 | 2000 | GS171W | PN1550 | PN1421 | ||||
| 08.99~12.03 | 2000 | 1G-FE | GS171 | PN1550 | PN1421 | |||
| 09.15~04.18 | 2000 | 8AR-FTS | ARS210 | RN1258V | PN1550 | RN1438 | PN1846 | FN0659 |
| 07.14~04.18 | 2500 | 2AR-FSE | AWS211 | RN1258V | PN1550 | RN1438 | PN1846 | FN0659 |
| 06.01~12.11 | 2500 | 4GR-FSE | GRS200 | RN1258V | PN1550 | RN1438 | PN1494 | FN0659 |
| 02.08~12.12 | 2500 | 4GR-FSE | GRS201 | PN1479PN1550 | PN1494 | |||
| 08.01~06.07 | 3000 | JKS175 | PN1550 | PN1421 | ||||
| 09.99~12.03 | 3000 | 2JZ-FSE | JZS175W | RN1305V | PN1550 | RN1485 | PN1421 | |
| 01.00~12.03 | 3000 | 2JZ-GE | JZS175R | RN1305V | PN1550 | RN1485 | PN1421 | FN0692 |
| 02.08~12.12 | 3000 | 3GR-FE | GRS202R | RN1258V | PN1550 | RN1438 | PN1494 | FN0659 |
| 02.08~12.12 | 3000 | 3GR-FSE | GRS202 | PN1550 | PN1494 | FN0659 | ||
| 02.08~12.12 | 3000 | 3GR-FSE | GRS203 | PN1550 | PN1494 |
| 09.99~12.03 | 2500 | 1JZ-G## | JZS171 | RN1305VRN1150V | PN1324PN1550 | RN1225RN1485 | PN1421 | FN0692FN0567 |
| 09.99~12.03 | 2500 | 1JZ-G## | JZS171W | PN1324PN1550 | PN1421 | |||
| 12.03~02.08 | 2500 | 4GR-FSE | GRS180 | RN1536VRN1258VRN1536VSET | PN1550PN1479 | RN1665V | PN1494 | |
| 12.03~02.08 | 2500 | 4GR-FSE | GRS181 | RN1536VRN1258V | PN1479PN1550 | RN1438RN1665V | PN1494 | FN0659 |
| 09.99~12.03 | 3000 | 2JZ-FSE | JZS175 | RN1305V | PN1550 | RN1485 | PN1421 | FN0692 |
| 11.04~02.08 | 3000 | 3GR-FSE | GRS182 | RN1536VRN1258V | PN1550PN1479 | RN1438RN1665V | PN1494 | FN0659 |
| 09.03~02.08 | 3000 | 3GR-FSE | GRS182R | RN1258V | PN1550 | RN1438 | PN1494 | FN0659 |
| 01.03~01.08 | 3000 | 3GR-FSE | GRS183 | RN1258V | PN1550 | RN1438 | PN1494 | FN0659 |
| 12.12~04.18 | 2500 | 4GR-FSE | GRS210 | RN1258V | PN1550 | RN1438 | PN1494 | FN0659 |
| 02.08~11.11 | 2500 | 4GR-FSE | GWS204 | RN1258V | PN1550 | RN1438 | PN1494 | FN0659 |
| 12.09~01.15 | 2500 | 5GR-FE | GRS208 | RN1258V | PN1550 | RN1438 | PN1494 | FN0659 |
| 02.08~11.11 | 3000 | 3GR-FSE | GRS202 | RN1258V | PN1550 | RN1438 | PN1494 | FN0659 |
| 02.08~12.12 | 3000 | 3GR-FSE | GRS203 | RN1258V | PN1550 | RN1438 | PN1494 | FN0659 |
| 10.00~06.07 | 2000 | 1G-FE | GX110 | RN1305V | PN1550 | RN1485 | PN1421 | FN0692 |
| 10.00~11.04 | 2500 | 1JZ-FSE | JZX110 | RN1305V | PN1550 | RN1485 | PN1421 | FN0692 |
| 10.00~06.07 | 4000 | 1G-FE | GX110W | PN1550 | PN1421 |
| 10.00~06.07 | 2000 | 1G-FE | GX110W | RN1305V | PN1550 | RN1485 | PN1421 | FN0692 |
| 01.00~06.07 | 2500 | 1JZ-##E | JZX110 | RN1305VRN1150V | PN1324PN1550 | RN1225RN1485 | PN1421 | FN0567 |
| 11.04~09.09 | 2500 | 4GR-FSE | GRX120 | RN1536VSETRN1258VRN1536V | PN1479PN1550 | RN1438RN1665V | PN1494 | FN0659 |
| 10.06~09.09 | 2500 | 4GR-FSE | GRX125 | RN1258V | PN1550 | RN1438 | PN1494 | FN0659 |
| 10.09~08.15 | 2500 | 4GR-FSE | GRX130 | RN1258V | PN1430 | RN1438 | PN1494 | FN0659 |
| 11.04~09.09 | 3000 | 3GR-FSE | GRX121 | RN1258VRN1536V | PN1550PN1479 | RN1665VRN1438 | PN1494 | FN0659 |
