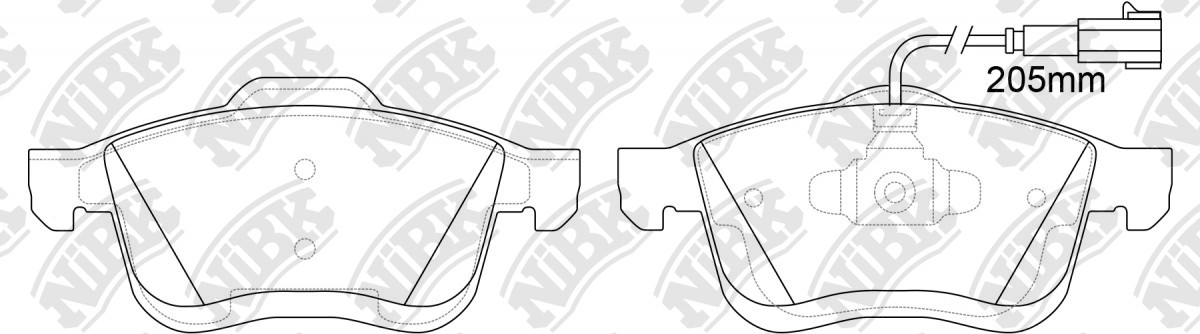

BRAKE PADS » PN0748W

Specification

Length-1
156.3
Width-1
71.5
Length-2
155.1
Width-2
69
Thickness-1
20
Thickness-2
20
Pcs In Set
4
Wire-Sensor
2

Cross Reference

AKEBONO
AN-4652WK
BENDIX
511127
CHRYSLER
68211488AA
CHRYSLER
68281390AA
CHRYSLER
68351926AA
CHRYSLER
77366590
FIAT
51928529
FIAT
68261719AA
FIAT
7 736 531 1
FIAT
7 736 539 6
FIAT
77366590
FMSI
D1721-8945
FMSI
D1721-9142
LANCIA
7 736 492 9
LANCIA
7 736 579 6
OPEL
16 05 164
OPEL
16 05 182
OPEL
16 05 293
OPEL
9 551 137 8
OPEL
95 515 028
OPEL
95 518 219
OPEL
95 525 468
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
01.13~ 1400 312 B3.000 352 RN3007V PN0748W PN41001W
01.09~01.15 1300 199 A3.000 263.122.0.5 RN1022V PN0748WPN0187W DN1697 FN41002
01.09~01.15 1400 843 A1.000 263.111.0.5 RN1022V PN0187WPN0748W DN1697 FN41001
01.09~01.16 1600 263 A5.000 263.216.0.5 RN3007V PN0187WPN0748W DN1697 FN41001
02.10~ 1400 843 A1.000 152.731.0.5 RN3007V PN0748W FN41001
10.15~ 1600 263 A5.000 263.216.1.5 RN1022VRN3007V PN0187WPN0748W FN41001
10.15~ 1600 263 A5.000 263.226.1.5 RN3007V PN0748W FN41001
10.15~ 1600 263 A8.000 263.223.1.5 RN3007V PN0748W FN41001
01.12~01.18 1300 A13FD X12 PN0748W FN41002
01.12~01.18 1400 A14F# X12 PN0748W FN41002
01.12~01.18 1400 A14FP X12 PN0748W FN41002
01.12~01.18 1600 A16FDH X12 RN3007V PN0748W FN41001
01.12~01.18 1600 A16FDL X12 RN3007V PN0748W FN41001
01.12~01.18 2000 A20FD X12 PN0748W FN41002
09.14~ 2400 ED6 VM PN0748W DN1638 FN41001

Exemption from liability: the catalog data is advisory and can be used for reference only
