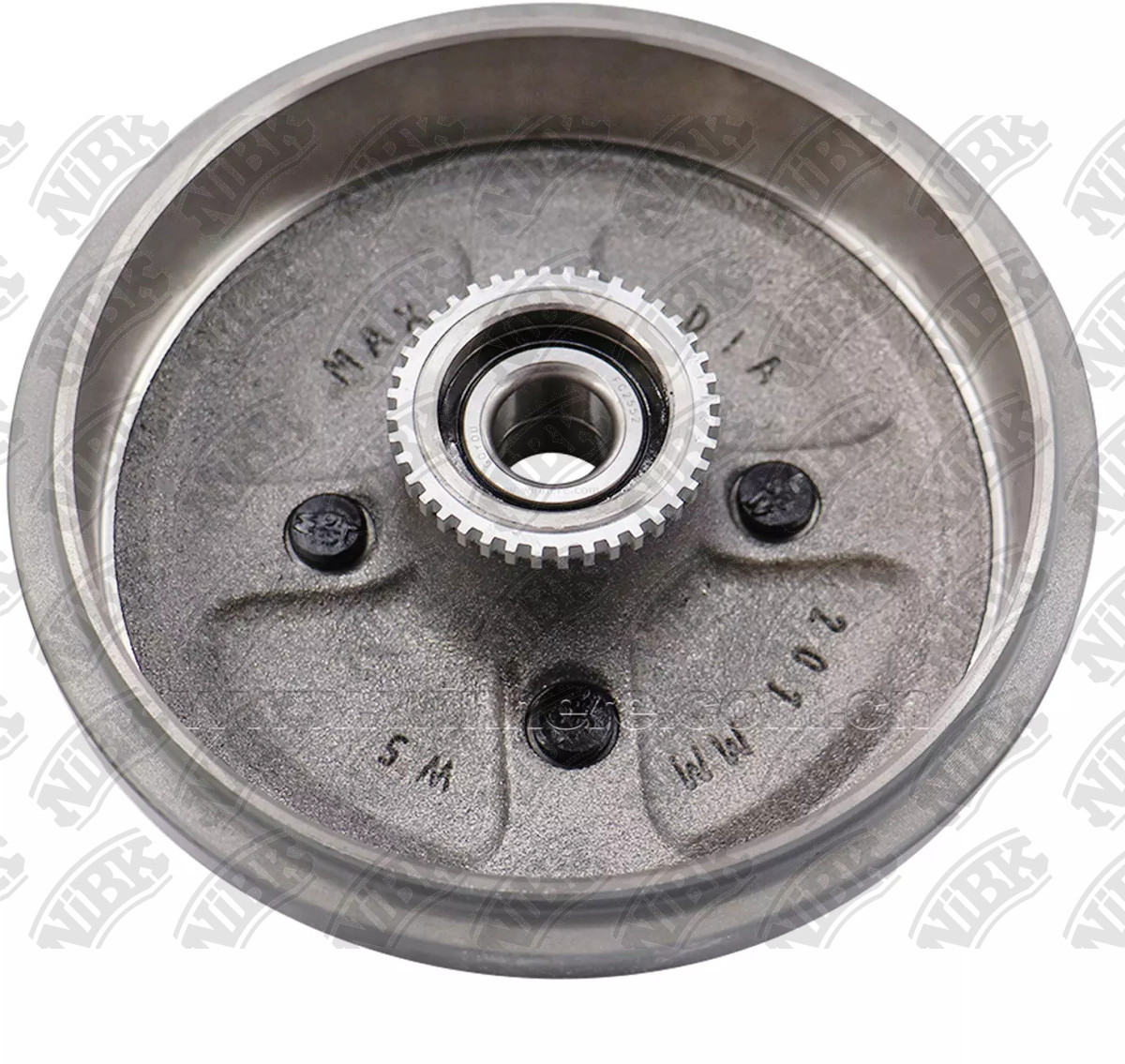

DRUM BRAKE » DN1668H

DN1668H

Specification

Outter Ø
230
Num. of holes
4
Hole Ø
12
Centering Diameter
51.9-52.5
Height
70
Pitch Circle Ø
100
Drum Ø
200
Structure Material
G3000
Notes
w/Wheel Bearing, w/ABS Sensor Ring

Variation

DN1668[NiBK]

Cross Reference

CHEVROLET
96386900
DAEWOO
96386901
GM
95903584
GM
95903585
GM
96386900
GM
96386901
GM
96471276
GM
96471277
GM
96471278
GM
96471279
GM
96471783
GM
96471784
GM
96473233
GM
96473234
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

CHEVROLET (GM)   »   Aveo (T200)

03.02~01.08 1400 F14D3 / L14 SA48 5DR HB RN1206V PN0374PN0370 DN1668 FN11174
03.02~01.08 1400 F14D3 / L14 SDN CHL RN1206V PN0374PN0370 DN1668 FN11174
03.02~02.08 1500 F15S3 / LX6 SA48 5DR HB RHD RN1206V PN0370 DN1668DN1680 FN11174
03.02~02.08 1500 F15S3 / LX6 SF69 RN1206V PN0370 DN1680DN1668 FN11174

CHEVROLET (GM)   »   Aveo (T300)

10.11~10.15 1600 LXV 1TD69 SDN RN2117V PN0374 DN1668DN1680 FN11174
