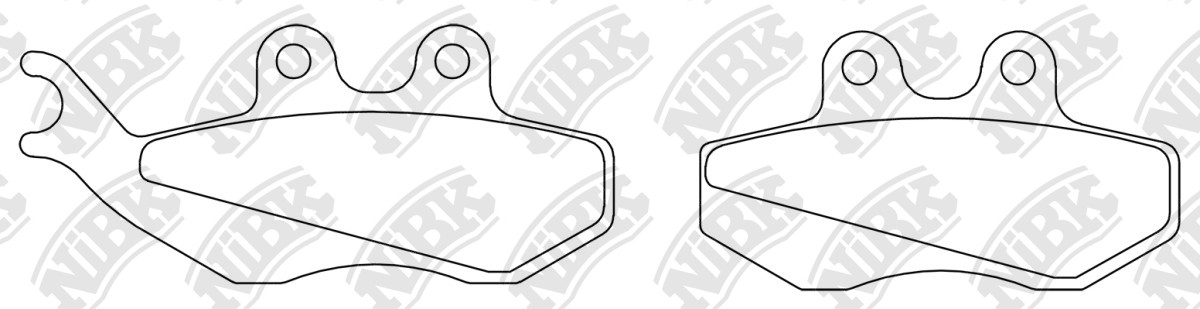

MOTORCYCLE BRAKE PADS » PM045

PM045

Specification

Length-1
94.6
Width-1
42
Thick-1
8
Length-2
76.8
Width-2
42
Thick-2
8
TYP
M

Cross Reference

DERBI
00H04703141
PIAGGIO
494628
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

AJP   »   MX-200

01.09~ 200 PM045 PM015

AJP   »   PR3-125

01.08~ 125 PM045 PM562
01.10~ 125 PM045 PM562

AJP   »   PR3-200

01.08~ 200 PM045 PM562
01.10~ 200 PM045 PM562

AJP   »   PR4-125

01.10~ 125 PM045 PM179

AJP   »   PR4-200

01.10~ 200 PM045 PM179

APRILIA   »   ETX-125

01.99~01.01 125 PM045 PM167

APRILIA   »   MX-50

01.03~01.05 50 PM045 PM032

APRILIA   »   RS-50

01.99~01.06 50 PM045 PM032

APRILIA   »   RX-125

01.92~01.00 125 PM045 PM167

APRILIA   »   RX-50

01.93~01.04 50 PM045 PM032
01.04~01.06 50 PM045 PM032

APRILIA   »   SR-50

01.05~ 50 PM045 PM558

BENELLI   »   Velvet-150

01.08~01.11 150 PM045 PM619

BETA   »   ALP-125

01.05~ 125 PM045

BETA   »   ALP-200

01.05~ 200 PM045

BETA   »   ALP-350

01.04~01.06 350 PM045 PM032

BETA   »   RE-125

01.08~01.10 125 PM045 PM186

BETA   »   RR-125

01.03~ 125 PM045 PM561
01.11~ 125 PM045 PM186

BETA   »   RR-125

01.08~ 125 PM045 PM186
01.08~01.09 125 PM045 PM186

BETA   »   RR-50

01.04~ 50 PM045PM015 PM015
01.05~ 50 PM045
01.08~ 50 PM045 PM186
01.09~ 50 PM045 PM015PM186
01.11~ 50 PM045

CCM   »   SR-40

01.07~01.09 40 PM045

CPI   »   GTR-125

01.02~01.02 125 PM045 PM031

CPI   »   GTR-200

01.02~ 200 PM045 PM031

CPI   »   GTR-50

01.02~01.09 50 PM045 PM031

CPI   »   GTS-125

01.02~01.03 125 PM045 PM031

CPI   »   GTS-200

01.02~01.03 200 PM045 PM031

CPI   »   GTS-50

01.02~01.03 50 PM045 PM031

CPI   »   SX-50

01.06~01.07 50 PM045 PM015

DAELIM   »   ST-125

01.03~01.03 125 PM045

DERBI   »   DRD-125

01.07~ 125 PM045

DERBI   »   DRD-50

01.04~01.07 50 PM045 PM015
01.04~01.08 50 PM045

DERBI   »   GP1-50

01.06~ 50 PM045 PM015

FACTORY   »   RP-50

01.04~01.05 50 PM045 PM015

FACTORY   »   SM-50

01.04~01.04 50 PM045 PM015

FACTORY   »   YP-50

01.04~01.05 50 PM045 PM015

FACTORY   »   YR-125

01.05~01.05 125 PM045 PM015

GAS GAS   »   EC-50

01.05~01.05 50 PM015PM045 PM567PM561

GAS GAS   »   SM-50

01.05~01.05 50 PM045 PM561

GENERIC   »   SM-125

01.08~ 125 PM045
01.08~01.09 125 PM045 PM032

GENERIC   »   SM-50

01.06~01.09 50 PM045 PM016
01.08~01.09 50 PM265PM045 PM265PM016

GENERIC   »   X-125

01.08~01.09 125 PM045 PM032

GENERIC   »   X-50

01.06~01.09 50 PM045 PM016

GILERA   »   DNA-125

01.01~01.05 125 PM045 PM176

GILERA   »   DNA-180

01.01~01.05 180 PM045 PM176

GILERA   »   DNA-50

01.01~01.06 50 PM045 PM031

GILERA   »   FX-125

01.97~01.02 125 PM172PM045

GILERA   »   FXR-180

01.97~01.97 180 PM045
01.98~01.02 180 PM045

GILERA   »   VX-125

01.01~01.04 125 PM045PM172 PM176

GILERA   »   VXR-180

01.01~01.05 180 PM045 PM176

GILERA   »   VXR-200

01.02~01.04 200 PM045 PM176

HM   »   CRE-50

01.95~01.02 50 PM534PM045
01.01~01.02 50 PM045 PM015
01.03~01.09 50 PM045 PM154
01.07~01.08 50 PM045
01.07~01.09 50 PM045 PM185PM154

HM   »   CRE-F-125

01.09~01.09 125 PM045 PM185

HM   »   CRM-50

01.07~01.08 50 PM045

HM   »   CRM-F-125

01.09~01.09 125 PM045 PM185

HRD   »   GS-50

01.04~ 50 PM045

KEEWAY   »   TX-125

01.10~ 125 PM239PM045 PM032

KEEWAY   »   TX-50

01.10~ 50 PM045 PM032

KEEWAY   »   X RAY-50

01.07~01.09 50 PM045 PM032

MALAGUTI   »   R-125

01.04~01.07 125 PM045 PM558

MALAGUTI   »   S-200

01.04~01.04 200 PM045 PM558

MALAGUTI   »   S-250

01.04~01.07 250 PM045 PM558

MALAGUTI   »   XSM-50

01.03~ 50 PM045 PM015

MBK   »   DT-50

01.03~01.06 50 PM045 PM015

MBK   »   TZR-50

01.03~01.09 50 PM045 PM015

MOTORHISPANIA   »   RYZ-50

01.06~01.10 50 PM015PM141PM045 PM015

PEUGEOT   »   Elystar-125

01.02~01.07 125 PM045 PM198

PEUGEOT   »   LXR-125

01.10~ 125 PM045 PM216

PEUGEOT   »   LXR-200

01.10~ 200 PM045 PM216

PEUGEOT   »   Satelis -250

01.07~01.12 250 PM060PM045 PM198PM060

PEUGEOT   »   Satelis-125

01.06~ 125 PM045

PEUGEOT   »   XPS-50

01.05~01.09 50 PM045 PM015

PEUGEOT   »   XPS-6-50

01.03~01.10 50 PM045 PM015

PIAGGIO VESPA   »   GT-125

01.03~01.06 125 PM172PM045 PM176

PIAGGIO VESPA   »   GT-200

01.03~01.06 200 PM045PM172 PM176

PIAGGIO VESPA   »   GT-250

01.98~01.99 250 PM045

PIAGGIO VESPA   »   GTX-125

01.01~01.03 125 PM045 PM176

PIAGGIO VESPA   »   GTX-180

01.01~ 180 PM045 PM176

PIAGGIO VESPA   »   GTX-250

01.01~01.02 250 PM045 PM176

PIAGGIO VESPA   »   LX-125

01.98~01.99 125 PM045
01.99~ 125 PM045

PIAGGIO VESPA   »   LX-150

01.98~01.99 150 PM045

PIAGGIO VESPA   »   LX4-125

01.98~01.99 125 PM045

PIAGGIO VESPA   »   LXT-180

01.98~01.99 180 PM045

PIAGGIO VESPA   »   ST-125

01.00~01.04 125 PM045PM172

PIAGGIO VESPA   »   ST-150

01.00~01.04 150 PM045PM172

RIEJU   »   MRX-50

01.04~01.08 50 PM045 PM015

RIEJU   »   RS2-50

01.05~01.05 50 PM045
01.06~01.09 50 PM045 PM015

RIEJU   »   SMX-50

01.04~01.07 50 PM045 PM015
01.06~01.08 50 PM045

SACHS   »   ZX-125

01.01~01.02 125 PM045 PM167

SACHS   »   ZZ-125

01.99~01.02 125 PM045 PM167

SHERCO   »   EN-50

01.08~01.08 50 PM045 PM154
01.08~01.09 50 PM045 PM154

SHERCO   »   SE-125

01.10~ 125 PM045 PM154

SHERCO   »   SM-125

01.10~ 125 PM045 PM154

SHERCO   »   SM-50

01.08~01.08 50 PM045 PM154
01.08~01.10 50 PM045 PM154

SIAMOTO   »   SX 1-125

01.04~01.04 125 PM045 PM015

YAMAHA   »   DT-50

01.04~01.06 50 PM045 PM015

YAMAHA   »   TZR-50

01.03~01.08 50 PM045 PM015

YAMAHA   »   XT-125

01.05~ 125 PM154PM045 PM154
