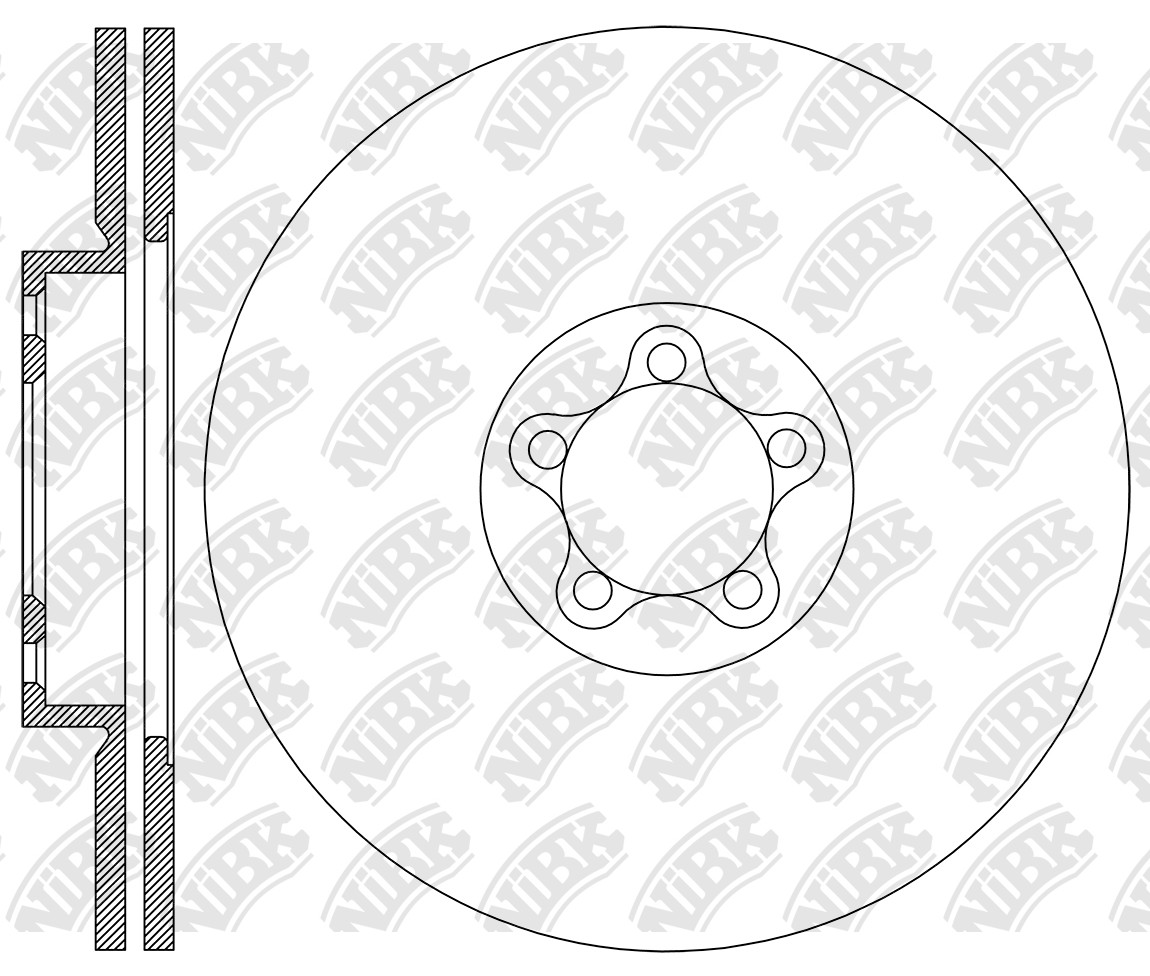

ROTOR DISC » RN2452V

RN2452V

Specification

Type
Vented
Outter Ø
237.7
Num. of holes
5
Disc Thickness (Max)
25
Disc Thickness (Min)
24
Height
41.9
Centering Diameter
69
Pitch Circle Ø
88
Front/Rear
Front
Structure Material
G3000

Cross Reference

DAIHATSU
43512-BZ090
DAIHATSU
43512-BZ090-001
DAIHATSU
43512-BZ100
TOYOTA
43512-BZ100
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

DAIHATSU   »   Gran Max

10.07~ 1300 K3-DE S401 RN2452V PN1847 DN1123 FN2398
11.07~ 1500 3SZ-VE S402 TR RN2452V PN1847 DN1123 FN2398
11.07~ 1500 3SZ-VE S402LVB FOURGON RN2452V PN1847 DN1123 FN2398

DAIHATSU   »   Luxio

01.09~ 1500 3SZ-VE S402RG RN2452V PN1847 DN1123 FN2398

TOYOTA   »   Lite/Townace

01.08~ 1500 3SZ-VE S402M RN2452V PN1847 DN1123 FN2398

TOYOTA   »   Liteace

06.10~ 1500 3SZ-VE S412M RN2452V PN1847 DN1123 FN2398

TOYOTA   »   Liteace Truck

01.08~ 1500 3SZ-VE S402U RN2452V PN1847 DN1123 FN2398
06.10~ 1500 3SZ-VE S412U RN2452V PN1847 FN2398

TOYOTA   »   Liteace Van

01.08~ 1500 3SZ-VE S402M RN2452V PN1847 DN1123 FN2398

TOYOTA   »   Townace Truck

01.08~ 1500 3SZ-VE S402U RN2452V PN1847 DN1123 FN2398
07.10~ 1500 3SZ-VE S412U RN2452V PN1847 DN1123 FN2398
