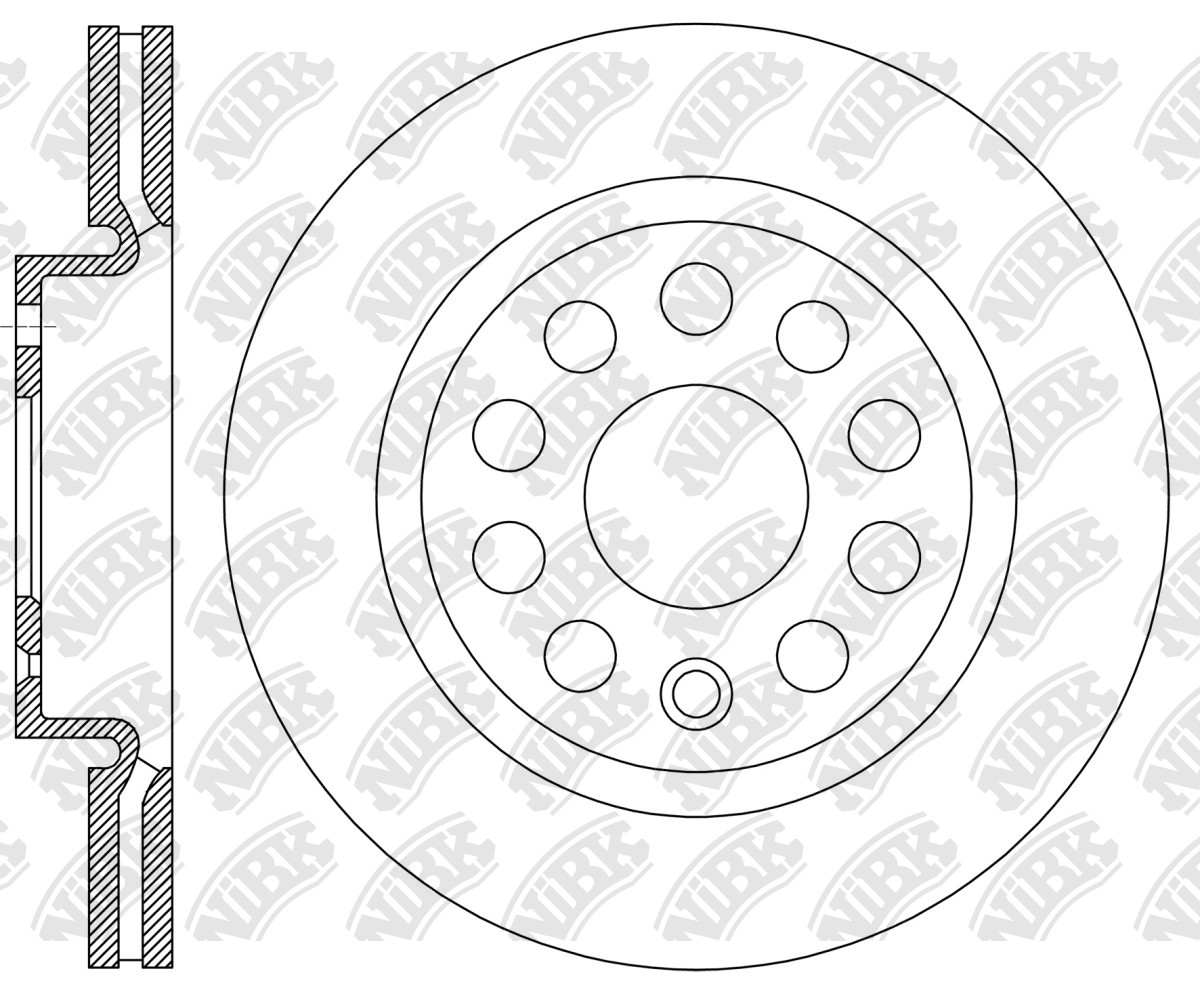

ROTOR DISC » RN2398V

Specification

Type
Vented
Outter Ø
306
Num. of holes
9
Hole Ø:
15.3
Disc Thickness (Max)
26
Disc Thickness (Min)
24
Height
49.8
Centering Diameter
65
Pitch Circle Ø
112
Drum Ø:
145.2
Front/Rear
Front
Structure Material
G3000

Cross Reference

VAG
5WA 615 301
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

Exemption from liability: the catalog data is advisory and can be used for reference only
