NiBK Brakes:: Application Cross Reference and Image for NiBK : ROTOR DISC : RN2392V

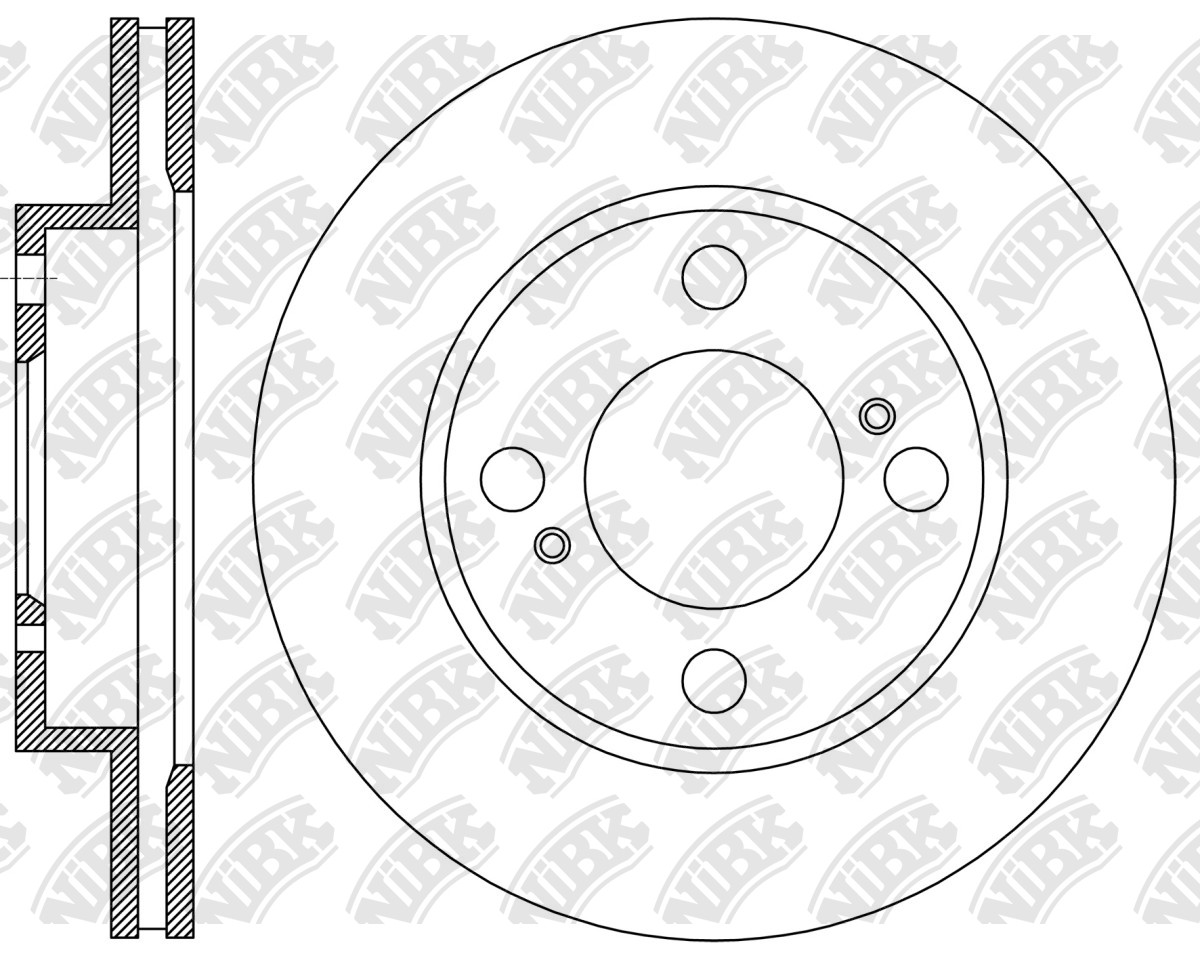

ROTOR DISC » RN2392V

Specification

Type

Vented

Outter Ø

231

Num. of holes

4

Hole Ø:

12.6

Disc Thickness (Max)

20

Disc Thickness (Min)

18

Height

45

Centering Diameter

60

Pitch Circle Ø

100

Drum Ø:

126.5

Front/Rear

Front

Structure Material

G3000

Cross Reference

SUZUKI

55311-62R00

SUZUKI

55311-62R00-000

years	Eng	Eng No	Body	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

SUZUKI » Ignis

01.16~02.20	1200	K12C	FH11S LHD	RN2392V	PN9813		FN9806
01.16~02.20	1200	K12C	FH11S RHD	RN2392V	PN9813		FN9806
09.19~	1200	K12D	ATK412	RN2392V	PN9813 PN9443		FN9806
