ROTOR DISC » RN1605V

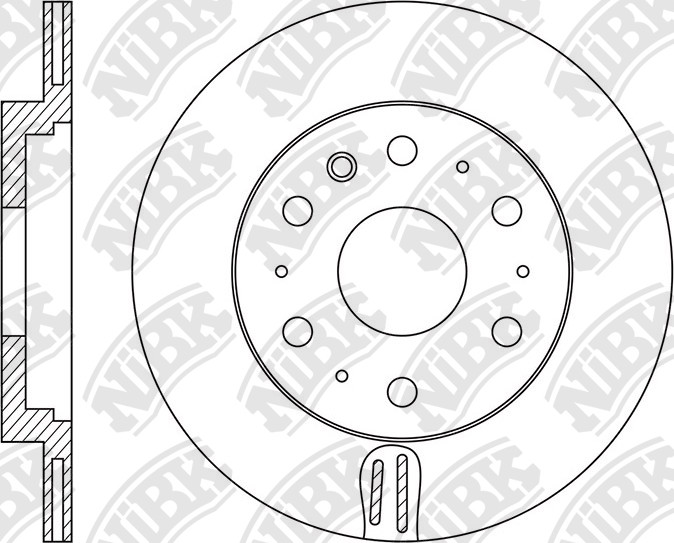

RN1605V

Specification

Type
vented
Outter Ø
290
Num. of holes
6
Disc Thickness (Max)
16
Centering Diameter
69
Disc Thickness (Min)
14
Height
67.2
Pitch Circle Ø
139.7
Drum Ø:
189
Structure Material
G3000

Cross Reference

TOYOTA
42431-26160
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

TOYOTA   »   Granvia / Grand Hiace

08.95~04.98 2700 3RZ-FE RCH11W RN1266V PN1237PN1516 RN1605VDN1115 PN1363FN2330 FN0567
08.96~05.02 3000 1KZ-TE KCH10W RN1266V PN1237PN1516 RN1605V FN2330PN1363 FN0567
05.97~05.02 3400 5VZ-FE VCH10W RN1266V PN1237PN1516 RN1605V PN1363

TOYOTA   »   Hiace Regius Touring

04.97~05.02 2700 3RZ-FE RCH41W RN1266V PN1237PN1516 RN1605V PN1363 FN0567
04.97~07.99 3000 1KZ-TE KCH40G RN1266V PN1237PN1516 RN1605V PN1363 FN0567
04.97~05.02 3000 1KZ-TE KCH40W RN1266V PN1237PN1516 RN1605V PN1363 FN0567
