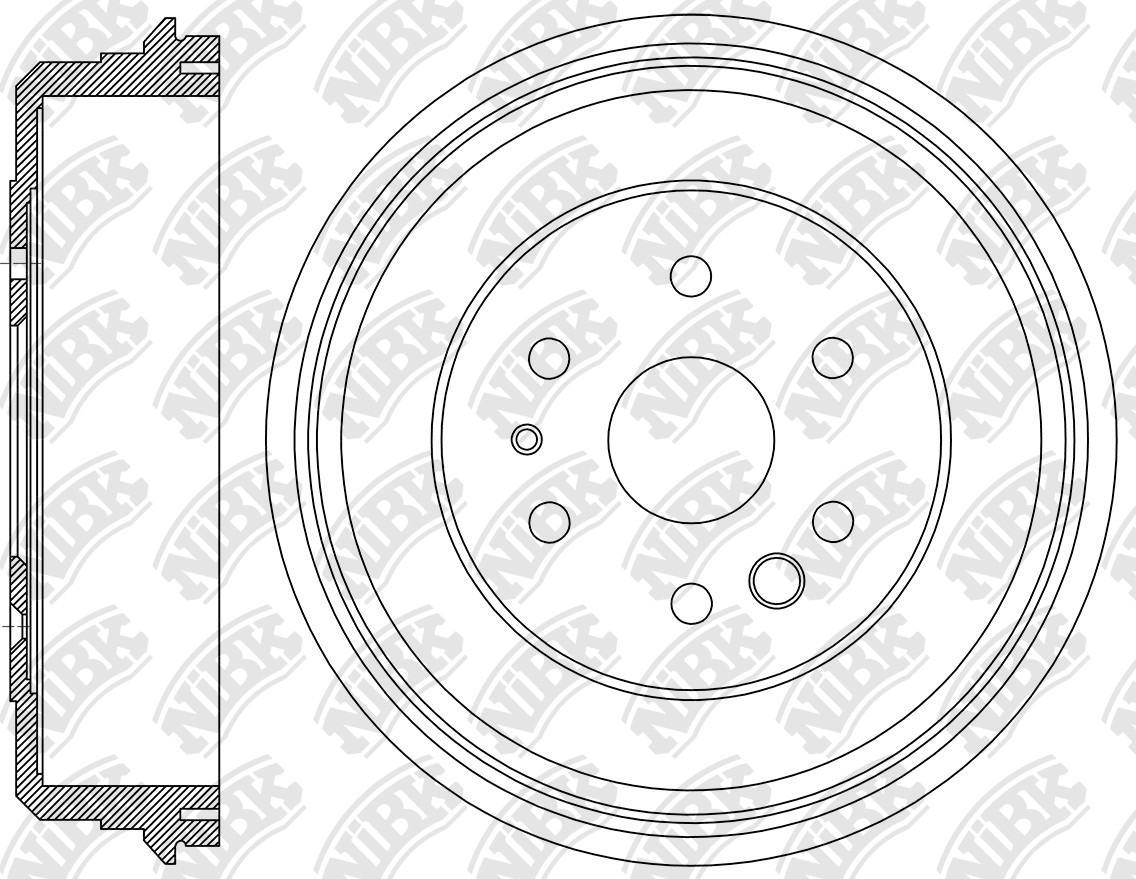

DRUM BRAKE » DN1748

DN1748

Specification

Outter Ø
328
Num. of holes
6
Centering Diameter
93
Height
80.5
Pitch Circle Ø
139.7
Drum Ø
270
Structure Material
G3000
Hole Ø
12.5

Cross Reference

FORD
1733770
FORD
1768317
FORD
3780207
FORD
XM34-1126-AA
FORD
XM34-1126-AC
FORD
XM34-1126-AD
MAZDA
UH71-26-251
MAZDA
UH71-26-251B
MAZDA
UH71-26-251C
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

FORD   »   Ranger

11.02~10.07 2200 2.2 EFI EQ RN1806V PN0163 DN1748 FN3416
02.06~12.09 2200 2.2L EFI ET RN1465VRN1806V PN0163PN5800 DN1748DN1101 FN0637FN0707FN3413
04.11~ 2200 GBVAJPF MN#F80 RN1750V PN51001 DN1748DN1101 FN3413FN3416
01.11~ 2200 T22DD0P (120PS) KD RN1750V PN51001 DN1748DN1101 FN3416FN3413
09.11~02.19 2200 T22DD0P (120PS) TKE RN1750V PN51001 DN1748DN1101 FN0637FN0707
01.11~ 2200 T22DD0P (150PS) MN#F80 RN1750V PN51001 DN1748DN1101 FN3416FN3413
09.11~ 2200 T22DD0P (150PS) TKE RN1750V PN51001 DN1748DN1101 FN0707FN0637
06.02~10.07 2500 2.5 Diesel TI (HP) EQ RN1806VRN2480VRN1465V PN0163 DN1101DN1748 FN3416FN3413
05.06~12.11 2500 2.5 Diesel TI (HP) MN#40 RN1806VRN1465V PN0163PN5800 DN1748DN1101 FN0637FN3413
06.02~10.07 2500 2.5 Diesel TI (NP) EQ RN1806V PN0163 DN1748 FN3416
06.98~07.03 2500 WL-T ER RN2480VRN1806V PN0163 DN1101DN1748 FN3416FN3413
06.02~10.07 2900 2.9L SOHC NA I4 MN#80 RN2480VRN1465VRN1806V PN0163PN5800 DN1101DN1748 FN3416
01.11~ 3200 T32DD0P MN#50 RHD TH RN1750V PN51001 DN1101DN1748 FN3413FN3416

MAZDA   »   B2200

08.02~12.06 2200 F2 ALUA06 RN1806V PN0163 DN1748 FN3413

MAZDA   »   B2500

11.98~08.02 2500 WL ABUA4 ER RN1806VRN2480V PN0163 DN1748DN1101 FN3413FN3416
08.02~01.07 2500 WL AUEA05 RN1465VRN1806V PN0163PN5800 DN1101DN1748 FN3416FN3413
02.99~08.02 2500 WL AUEA4 RN1806VRN2480V PN0163 DN1748DN1101 FN3416FN3413

MAZDA   »   B2600

11.98~01.07 2600 G6 UN RN1806V PN0163 DN1748 FN3413

MAZDA   »   BT-50

09.06~09.11 2200 F2 UN RN1806VRN1465V PN5804PN5800PN0163 DN1748DN1101DN1418 FN3413FN3378FN3416
06.11~07.15 2200 P4-AT ABUA08 RN1750V PN51001 DN1101DN1748 FN3413FN3416
01.15~ 2200 P4-AT AFUA01 GL RN1750V PN51001 DN1748DN1101 FN3413FN3416
01.15~ 2200 P4-AT AFUA01 GR RN1750V PN51001 DN1748DN1101 FN3416FN3413
10.10~07.15 2200 P4-AT MM6UP RN1750V PN51001 DN1748DN1101 FN3413FN3416
01.15~ 2500 L5 AFUA01 RN1750V PN51001 DN1748DN1101 FN3416FN3413
10.11~ 2500 L5 UP RN1750V PN51001 DN1748DN1101 FN3413FN3416
03.06~03.09 2500 WLAA ALUA07 RN1465V PN5800PN0163PN5804 DN1748DN1101 FN3413FN3416FN3378
07.08~09.12 2500 WLAA UN RN1465VRN1806V PN5804PN5800PN0163 DN1748DN1101DN1418 FN3413FN3378FN3416
09.06~07.08 2600 G6-E ALUA07 RN1465VRN1806V PN0163PN5804PN5800 DN1418DN1748DN1101 FN3413FN3378FN3416
08.06~09.11 3000 WEAT ALUA07 RN1465VRN1806V PN5804PN5800PN0163 DN1748DN1101DN1418 FN3378FN3416FN3413
07.15~ 3200 P5-AT / UH AFUA01 GL RN1750V PN51001 DN1101DN1748 FN3416FN3413
07.15~ 3200 P5-AT / UH AFUA01 GR RN1750V PN51001 DN1101DN1748 FN3413FN3416
10.10~07.15 3200 P5-AT / UH UP LHD RN1750V PN51001 DN1748DN1101 FN3413FN3416
10.10~07.15 3200 P5-AT / UH UP RHD RN1750V PN51001 DN1748DN1101 FN3416FN3413
