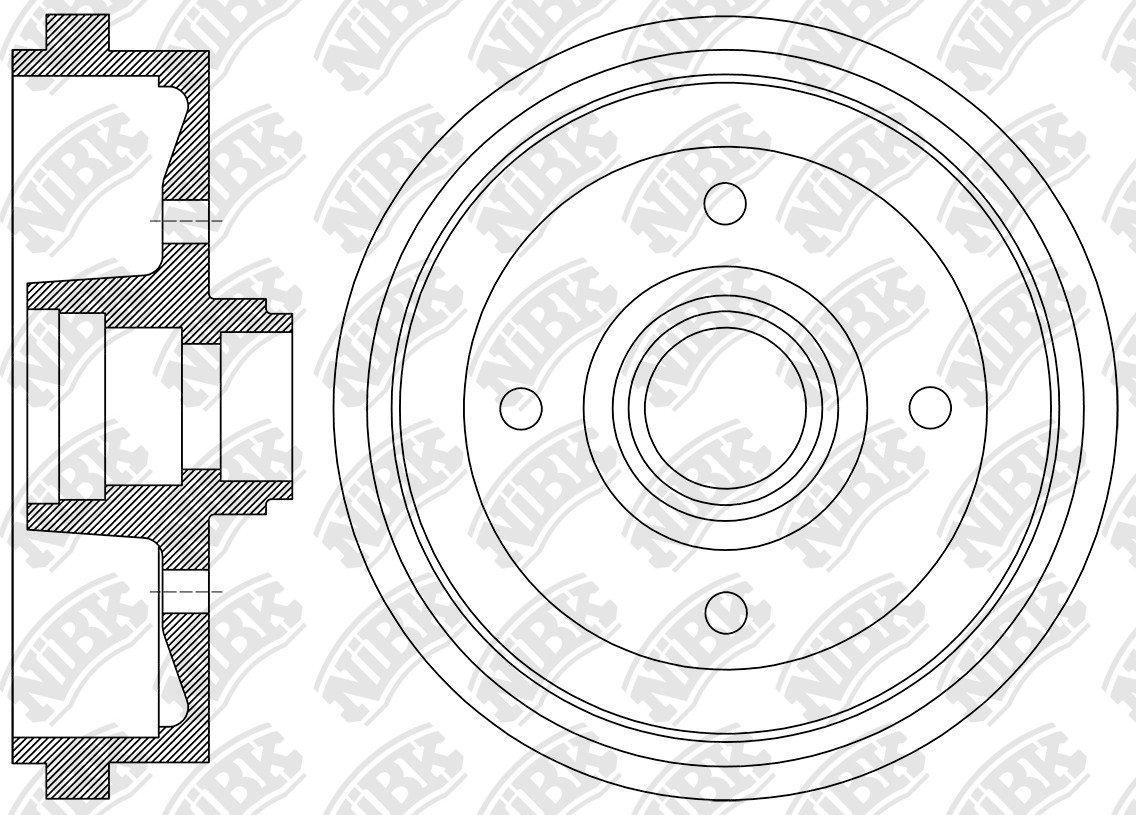

DRUM BRAKE » DN1580

DN1580

Specification

Outter Ø
212
Num. of holes
4
Hole Ø
M12x1.5
Centering Diameter
39.8-50.2
Height
74.6
Pitch Circle Ø
100
Drum Ø
180
Structure Material
G3000
Notes
w/o Wheel Bearings

Variation

DN1580H[NiBK]

Cross Reference

AUDI
171 501 615
AUDI
171 501 615 A
AUDI
171 501 615 B
AUDI
171 501 615 C
AUDI
191 501 615 B
SEAT
171501615
VAG
191 501 615
VAG
305 501 615 1
VAG
823 501 615 B
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

SEAT   »   Ibiza II

03.93~08.99 1800 ABS 3/5 DR HB RN1012RN1279V PN0113WPN2121 DN1580DN1522 FN0534FN0505

VOLKSWAGEN   »   Polo III

10.94~07.99 1300 ADX 3/5DR HB PN2121PN0113W DN1580DN1522DN1529 FN0534FN0505
10.94~07.99 1600 AEA SDN / HB / VRNT PN0113WPN2121 DN1522DN1529DN1580 FN0505FN0534
08.97~12.99 1700 AKU 6N10_4 PN0113W DN1522DN1580 FN0505FN0534
