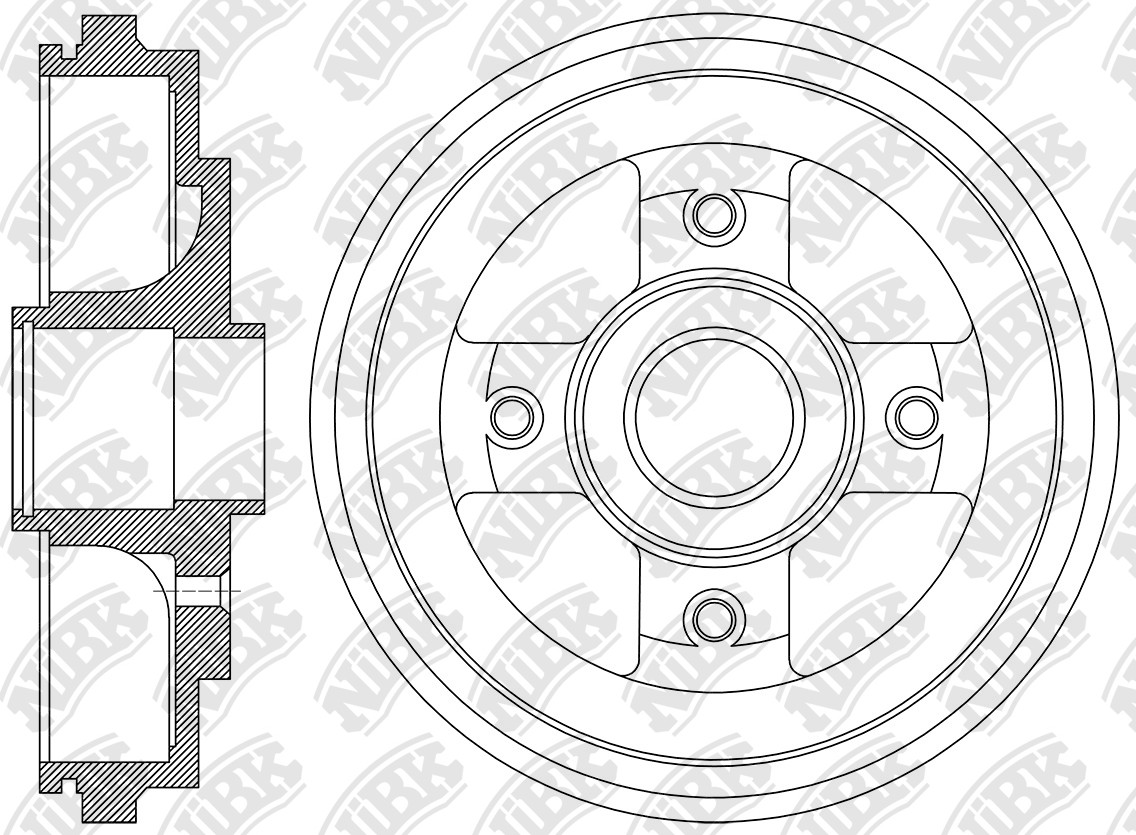

DRUM BRAKE » DN1569

DN1569

Specification

Outter Ø
232
Num. of holes
4
Hole Ø
M12x1.5
Centering Diameter
47-52.1
Height
73
Pitch Circle Ø
100
Drum Ø
200
Structure Material
G3000
Notes
w/o wheel bearing

Variation

DN1569H[NiBK]

Cross Reference

GM
9214294
OPEL
47 07 272
SUZUKI
43511-85E50
SUZUKI
43511-85E50-000
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

OPEL   »   Agila (A)

09.00~03.08 1000 Z10XE RN1131 PN9805PN9807 DN1569DN1567DN1568 FN0762FN2386
09.03~03.08 1000 Z10XE PN9807 DN1569DN1567DN1568 FN0762
09.00~08.04 1200 Z12XE RN1131 PN9805PN9807 DN1569DN1567DN1568 FN0762FN2386
07.04~03.08 1200 Z12XEP PN9807 DN1567DN1568DN1569 FN0762
09.03~03.08 1300 Z13DT PN9807 DN1567DN1568DN1569 FN0762

SUZUKI   »   Wagon R

07.01~01.07 1000 G10A RB310 RN1131 PN9807 DN1567DN1569 FN9977FN9959

SUZUKI   »   Wagon R+

02.00~01.05 1300 G13BB MMMA53S LHD RN1131 PN9807 DN1567DN1569 FN9977FN9959
