NiBK Brakes:: Application Cross Reference and Image for NiBK : DRUM BRAKE : DN1439

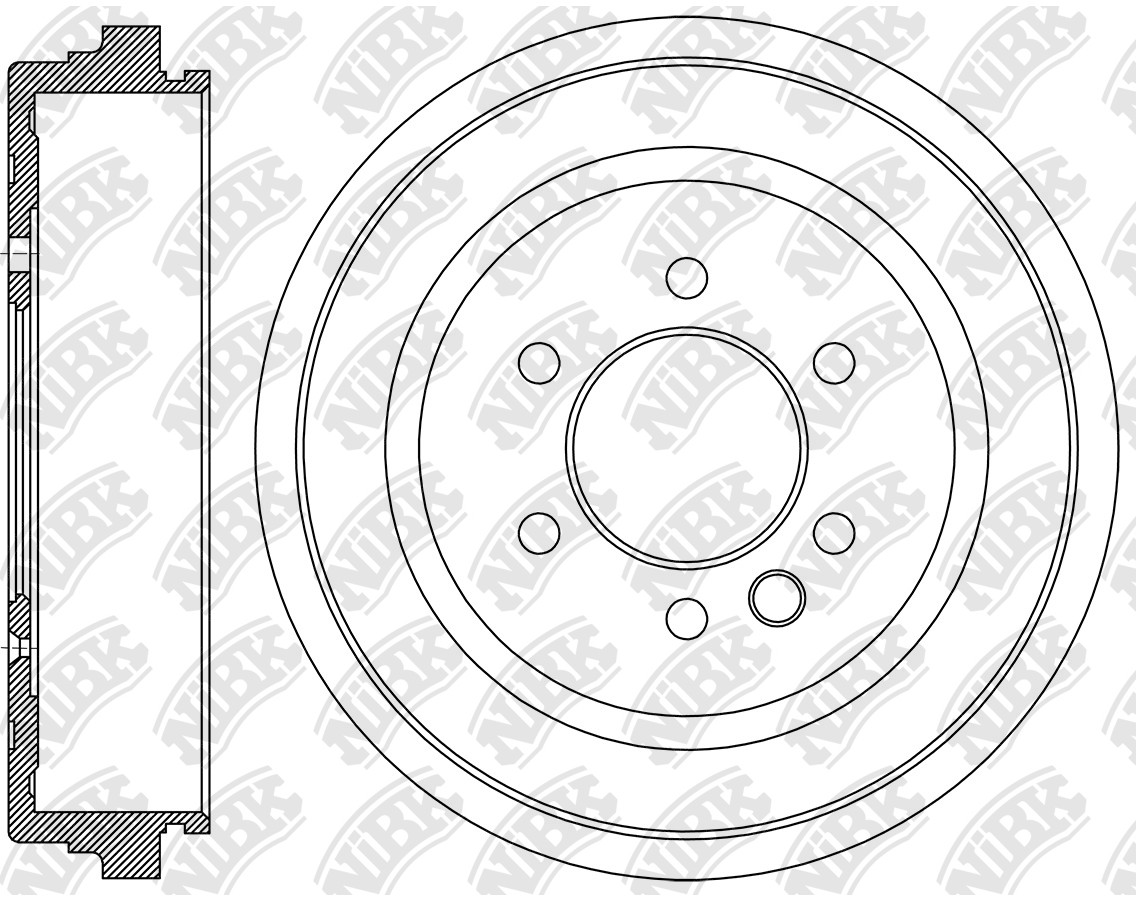

DRUM BRAKE » DN1439

Specification

Outter Ø

301

Num. of holes

6

Centering Diameter

45-47

Height

70

Pitch Circle Ø

139.7

Drum Ø

254

Structure Material

G3000

Hole Ø

12.7

Cross Reference

ISUZU

8-97238-629-0

ISUZU

8-97360-505-0

years	Eng	Eng No	Body	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

CHEVROLET (GM) » LUV

06.03~01.13

2400

LG1/C24SE

DL33P

RN1327V RN24001V

PN4801

DN1426 DN1439

FN4467 FN4470

ISUZU » D-Max

01.04~01.11

2500

4JA1-T

TF_54

RN1327V

PN0822

DN1439 DN1426

FN4470 FN4467

ISUZU » Traga

02.18~	2500	4JA1-T	PHR54		PN0938	DN1439	FN4470	FN4443
09.19~	2500	4JA1-TC	PHR54		PN0938	DN1439	FN4470	FN4443
