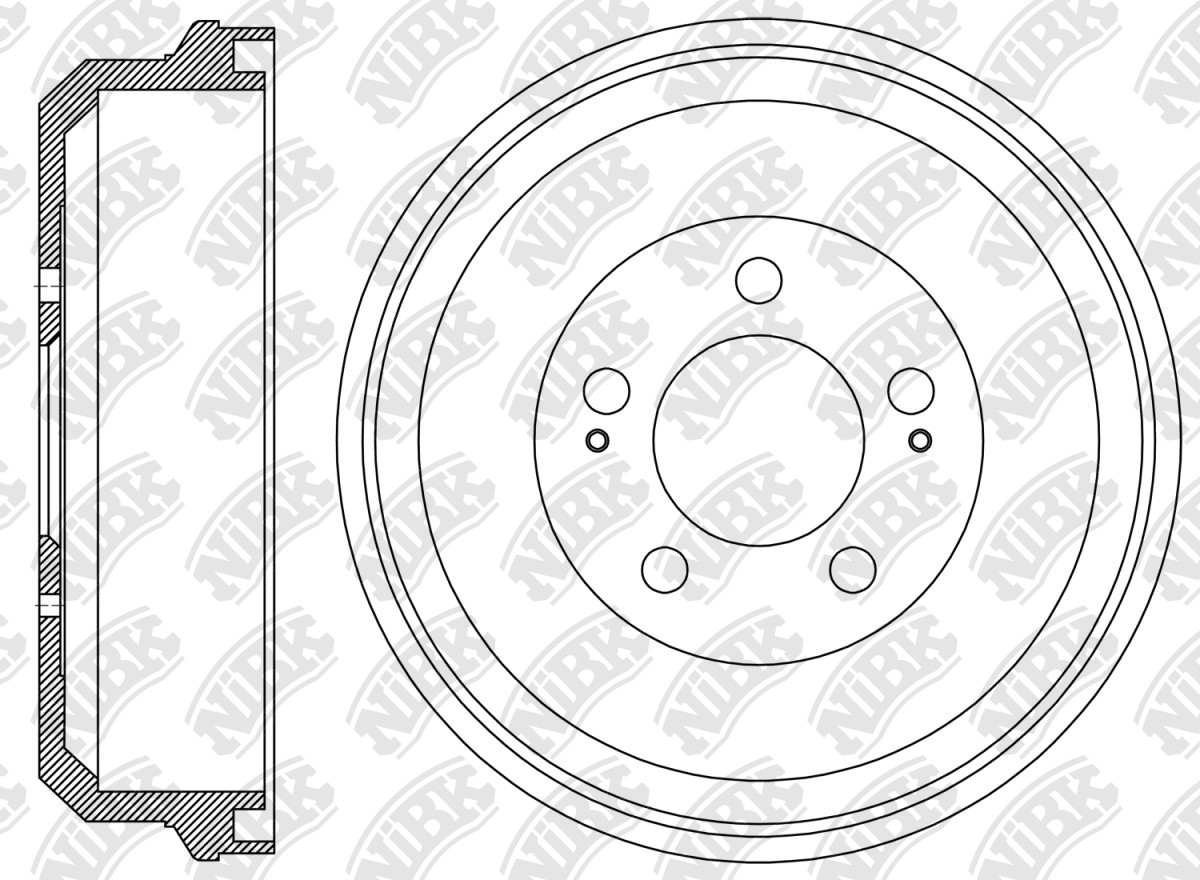

DRUM BRAKE » DN1375

DN1375

Specification

Outter Ø
303
Num. of holes
5
Hole Ø
12.4
Centering Diameter
75
Height
83
Pitch Circle Ø
114.3
Drum Ø
254
Structure Material
G3000

Cross Reference

MITSUBISHI
4615A204
MITSUBISHI
MN102438
MITSUBISHI
MN102438T
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

MITSUBISHI   »   L200

06.06~03.15 2400 4G64 KA5T RN1247VRN2360V PN3809 DN1104DN1375 FN6741FN6715
05.05~04.15 2500 4D56 KA4T RN2360V PN3809 DN1375 FN6715

MITSUBISHI   »   Triton

01.15~ 2400 4G64 KJ4T RN2360V PN3809 DN1375 FN6706
01.15~ 2500 4D56 KJ3T RN2360V PN3809 DN1375 FN6706
