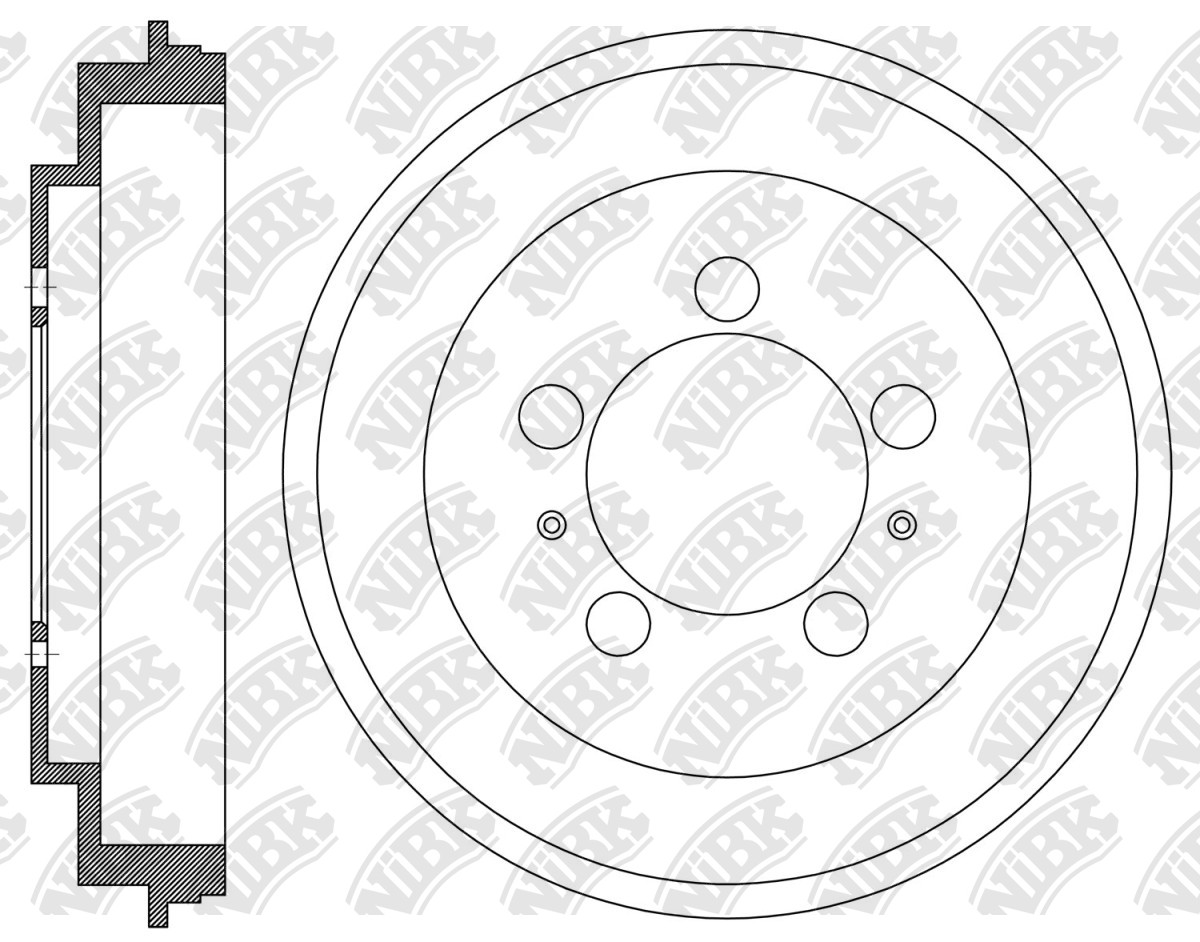

DRUM BRAKE » DN1358
Specification
Outter Ø
279
Num. of holes
5
Hole Ø
12.9
Centering Diameter
90
Height
60.2
Pitch Circle Ø
114.3
Drum Ø
228.6
Structure Material
G3000
Cross Reference
MITSUBISHI
MR307746
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 03.01~09.05 | 2000 | 4G63 | CU2W | RN1365V | PN3469 | DN1358 | FN6723 | |
| 03.01~10.05 | 2400 | 4G64 | CU4W | RN1365V | PN3469 | RN1242DN1358 | PN3502FN6723 | FN6704 |
| 08.97~08.03 | 2400 | 4G64 | N84W | RN1365V | PN3469 | DN1358 | FN6723 | |
| 01.98~05.03 | 2400 | 4G64 | N94W | RN2179V | PN3419 | DN1358 | FN6723 |
| 11.98~03.05 | 1600 | 4G18 | H65W GEN LHD | RN1256V | PN3417 | DN1358 | FN6723 | |
| 11.98~03.05 | 1600 | 4G18 | H65W GEN RHD | RN1256V | PN3417 | DN1358 | FN6723 | |
| 08.99~05.00 | 1800 | 4G93 | H61W | RN1256V | PN3417 | DN1358 | FN6723 | |
| 03.98~09.02 | 1800 | 4G93 | H66W | RN1256V | PN3417 | DN1358 | FN6723 | |
| 08.99~06.00 | 1800 | 4G93 | H71W | RN1256V | PN3417 | DN1358 | FN6723 | |
| 03.98~06.07 | 1800 | 4G93 | H76W | RN1256V | PN3417 | DN1358RN1242 | FN6723PN3174 | FN0808 |
| 06.98~06.07 | 1800 | 4G93 | H76W JPN | RN1256V | PN3417 | DN1358 | FN6723PN3174 | FN0808 |
| 05.00~09.02 | 2000 | 4G94 | H62W | RN1256V | PN3417 | DN1358 | FN6723 | |
| 05.00~07.04 | 2000 | 4G94 | H67W | RN1256V | PN3417 | DN1358 | FN6723 | |
| 05.00~09.02 | 2000 | 4G94 | H72W | RN1256V | PN3417 | DN1358 | FN6723 | |
| 05.00~06.07 | 2000 | 4G94 | H77W | RN1256V | PN3417 | DN1358 | FN6723 | |
| 02.00~12.05 | 2000 | 4G94 | H77W GEN | RN1256V | PN3417 | DN1358 | FN6723 | |
| 05.00~06.07 | 2000 | 4G94 | H77W JPN | RN1256V | PN3417 | DN1358 | FN6723 |
| 10.98~06.12 | 660 | 4A30 | H53A | RN2039V | PN3417 | DN1358 | FN6723 | |
| 10.98~12.05 | 660 | 4A30 | H58A | RN2039V | PN3417 | DN1358 | FN6723 |
