DRUM BRAKE » DN1288

DN1288

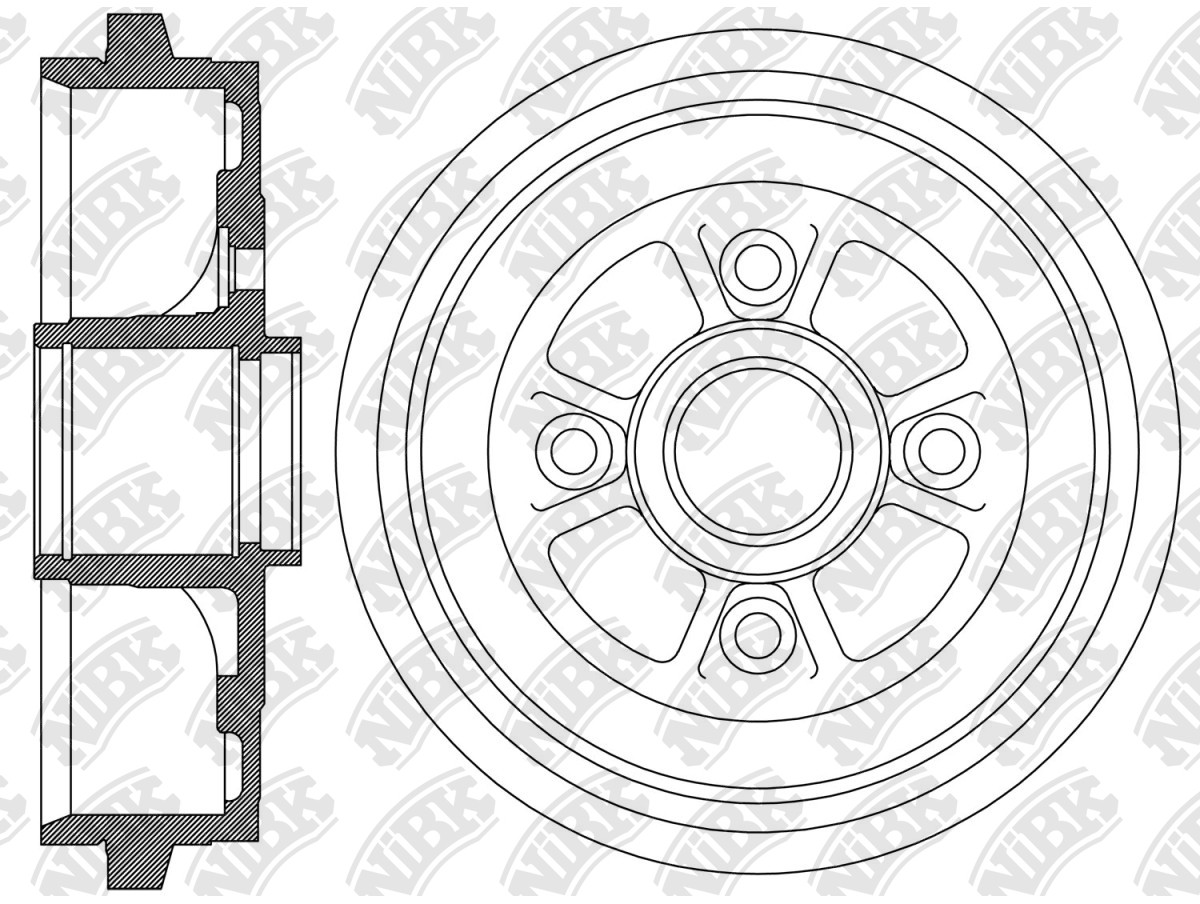

Specification

Outter Ø
243.7
Num. of holes
4
Centering Diameter
54.9
Height
75.1
Pitch Circle Ø
100
Drum Ø
203.2
Structure Material
G3000
Hole Ø
12.5

Variation

DN1288H[NiBK]

Cross Reference

NISSAN
43206-1HA0A
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

NISSAN   »   Micra

07.10~10.15 1200 HR12DE K13K RN1887VRN22003V PN9805PN0397 DN1288DN1305 FN0619FN1289
03.11~ 1200 HR12DR K13K RN1887V PN9805PN0397 DN1288 FN0619FN1280FN1264
05.11~10.15 1500 HR15DE K13K RN1887V PN9805 DN1288 FN0619

NISSAN   »   Sunny

12.11~06.15 1500 HR15DE N17K RN1887V PN9805 DN1288 FN0619
06.15~ 1500 HR15DE N17KK GL RN1887V PN9805 DN1288 FN0619

NISSAN   »   Versa

09.11~06.15 1500 HR15DE N17K RN1887V PN9805 DN1288 FN0619
