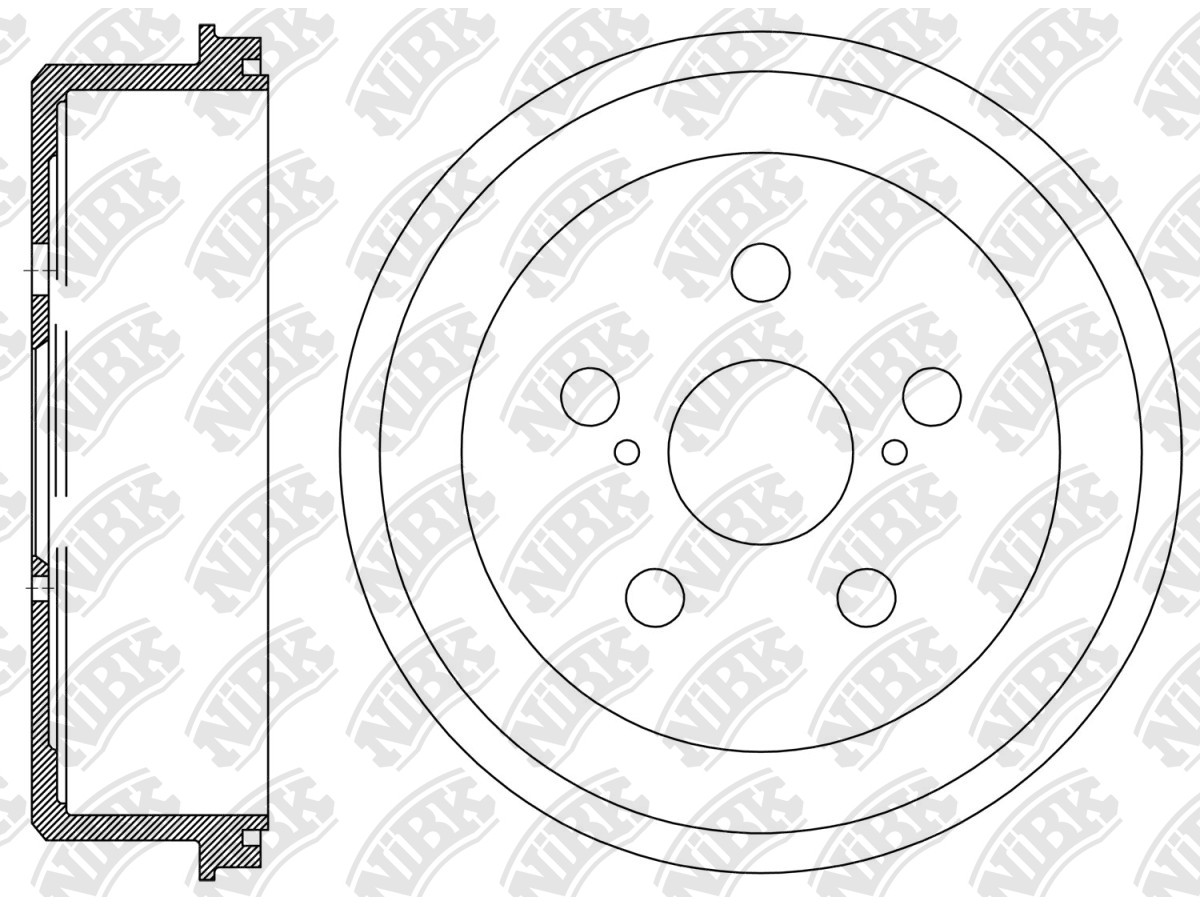

DRUM BRAKE » DN1249
Specification
Outter Ø
235
Num. of holes
5
Hole Ø
14.5
Centering Diameter
55
Height
65.6
Pitch Circle Ø
100
Drum Ø
200
Structure Material
G3000
Cross Reference
TOYOTA
42431-05010
TOYOTA
42431-20190
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 11.92~01.96 | 1800 | 4S-FE | ST190G | RN1058V | PN1322 | DN1249 | FN2285 | |
| 01.96~08.97 | 1800 | 7A-FE | AT191G | RN1058V | PN1322 | DN1249 | FN2311 | |
| 08.97~09.02 | 1800 | 7A-FE | AT211G | RN1058V | PN1322 | DN1249 | FN2311 | |
| 11.92~08.97 | 2000 | 2C | CT190G | RN1058V | PN1322 | DN1249 | FN2285 | |
| 11.92~08.97 | 2000 | 3S-FE | ST191G | RN1058V | PN1322 | RN1232DN1249 | PN1321FN2311 | FN0633 |
| 02.97~09.02 | 2000 | 3S-FE | ST210G | RN1058V | PN1322 | DN1249 | FN2311 | FN0633 |
| 08.92~08.96 | 1500 | 5A-FE | AT192 | RN1058VRN1484V | PN1322PN1077 | DN1244DN1249 | FN2285 | |
| 08.96~08.01 | 1500 | 5A-FE | AT212 | RN1058VRN1484V | PN1322PN1077 | DN1249DN1244 | FN2311 | |
| 08.92~08.96 | 1600 | 4A-FE | AT190 | RN1058V | PN1322 | DN1249DN1244 | FN2285 | |
| 08.92~08.94 | 1800 | 4S-FE | ST190 | RN1058V | PN1322 | DN1249 | FN2285 | |
| 08.94~06.97 | 1800 | 7A-FE | AT191 | RN1058V | PN1322 | DN1249DN1244 | FN2285 | |
| 08.96~12.01 | 1800 | 7A-FE | AT211 | RN1058V | PN1322 | DN1249 | FN2311 | |
| 08.92~08.96 | 2000 | 2C | CT190 | PN1322 | DN1249 | FN2285 | ||
| 08.96~08.98 | 2000 | 2C-T | CT210 | RN1058V | PN1322 | DN1249 | FN2311 | |
| 08.98~12.01 | 2200 | 3C-TE | CT211 | RN1058V | PN1322 | DN1249 | FN2311 |
| 01.92~12.97 | 1600 | 4A-FE | AT190L | RN1058VRN1069V | PN1322 | DN1249 | FN2354FN2285 | |
| 01.92~12.97 | 1800 | 7A-FE | AT191L | RN1069VRN1058V | PN1322 | DN1249 | FN2285FN2354 | |
| 02.92~10.97 | 1800 | 7A-FE | AT191R | RN1069V | PN1322 | DN1249 | FN2354 | |
| 01.92~12.97 | 2000 | 2C | CT190L | RN1058VRN1069V | PN1322 | DN1249 | FN2285FN2354 | |
| 01.92~12.97 | 2000 | 2C-T | CT190 | RN1069VRN1058V | PN1322 | DN1249 | FN2354FN2285 | |
| 01.92~12.97 | 2000 | 3S-#E | ST191L | RN1059V | PN1362PN1322 | RN1232DN1249 | PN1321FN2285FN2354 | FN0633 |
| 09.93~04.98 | 1800 | 4S-FE | ST200 | RN1058V | PN1322 | DN1249 | FN2285 | |
| 09.93~10.94 | 1800 | 4S-FE | ST201 | PN1322 | DN1249 | FN2285 |
| 02.92~07.98 | 1600 | 4A-FE | AT190 | RN1058VRN1069V | PN1322 | DN1249 | FN2285 | |
| 03.92~11.97 | 1600 | 4A-FE | AT190R | RN1058V | PN1322 | DN1249 | FN2354FN2285 | |
| 01.96~12.01 | 1600 | 4A-FE | AT210R | RN1058V | PN1322 | DN1249 | FN2311 | |
| 01.92~01.96 | 1800 | 4S-FE | ST190 | RN1058V | PN1322 | DN1249 | FN2285 | |
| 02.92~10.97 | 2000 | 2C | CT190 | RN1058V | PN1322 | DN1249 | FN2285 |
| 09.93~04.98 | 1800 | 4S-FE | ST200 | RN1058V | PN1322 | DN1249 | FN2285 | |
| 09.93~10.94 | 1800 | 4S-FE | ST201 | RN1058VRN1069V | PN1322 | DN1249 | FN2285 |
