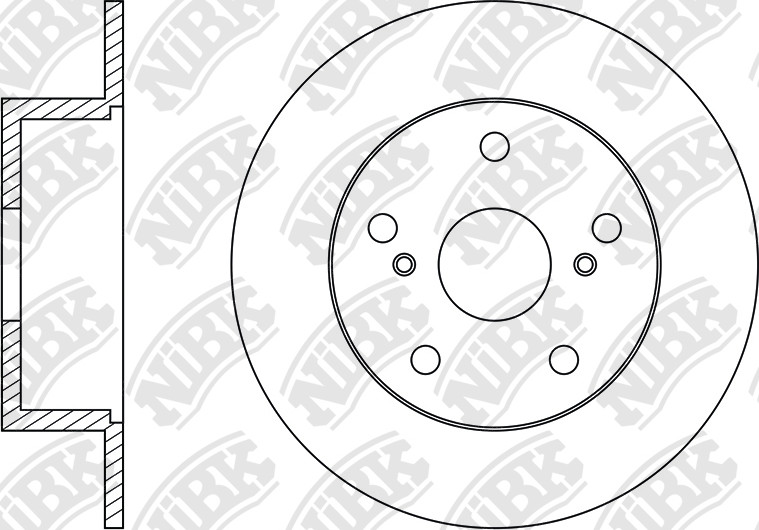

ROTOR DISC » RN1487
Specification
Type
Solid
Disc Thickness (Max)
10
Num. of holes
5
Height
66.9
Centering Diameter
62
Pitch Circle Ø
114.3
Outter Ø
291
Drum Ø:
176
Disc Thickness (Min)
9
Structure Material
G3000
Variation
Cross Reference
TOYOTA
42431-22180
TOYOTA
42431-22220
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 08.98~07.01 | 2000 | 1G-FE | GX105 | RN1305V | PN1228 | RN1487 | PN1363 | FN0669 |
| 10.92~09.96 | 2400 | 2L-TE | LX90 | RN1305V | PN1322 | RN1487 | PN1323 | |
| 10.92~09.96 | 2500 | 1JZ-G## | JZX90 | RN1305VRN1150V | PN1228PN1324 | RN2029VRN1487 | PN1363PN1323 | FN0669 |
| 08.96~06.01 | 2500 | 1JZ-GE | JZX100 | RN1305V | PN1228 | RN1487 | PN1363 | FN0669 |
| 09.96~07.01 | 2500 | 1JZ-GE | JZX105 | RN1305V | PN1228 | RN1487 | PN1363 | FN0669 |
| 10.93~09.96 | 2500 | 1JZ-GE | JZX93 | RN1305V | PN1228 | RN1487 | PN1363 | FN0669 |
| 09.96~07.01 | 3000 | 2JZ-GE | JZX101 | RN1305V | PN1228 | RN1487 | PN1363 | FN0669 |
| 10.93~09.96 | 3000 | 2JZ-GE | JZX91 | RN1305V | PN1228 | RN1487 | PN1323 | FN0669 |
| 08.98~06.01 | 2000 | 1G-FE | GX105 | RN1305V | PN1228 | RN1487 | PN1363 | FN0669 |
| 09.96~07.01 | 2500 | 1JZ-GE | JZX100 | RN1305V | PN1228 | RN1487 | PN1363 | FN0669 |
| 09.96~07.01 | 2500 | 1JZ-GE | JZX105 | RN1305V | PN1228 | RN1487 | PN1363 | FN0669 |
| 10.92~09.96 | 2500 | 1JZ-GE | JZX90 | RN1305V | PN1228 | RN1487 | PN1323PN1363 | FN0669 |
| 10.93~09.96 | 2500 | 1JZ-GE | JZX93 | RN1305V | PN1228 | RN1487 | PN1363 | FN0669 |
| 09.96~07.01 | 3000 | 2JZ-GE | JZX101 | RN1305V | PN1322PN1228 | RN1487 | PN1363 | FN0669 |
| 08.95~12.01 | 2000 | 1G-FE | GS151H | RN1305V | PN1228 | RN1487 | PN1363 | |
| 12.95~02.01 | 2000 | 1G-GPE | GS151 | PN1322 | RN1487 | PN1323 | ||
| 08.95~09.99 | 2400 | 2L-TE | LS151H | RN1305V | PN1228 | RN1487 | PN1363 | FN0669 |
| 08.95~08.01 | 2500 | 1JZ-GE | JZS151 | RN1305V | PN1228 | RN1487 | PN1363 | FN0669 |
| 10.91~12.95 | 3000 | 2JZ-GE | JZS135 | PN1157 | RN1487 | PN1142 | ||
| 12.95~12.01 | 3000 | 2JZ-GE | JZS155L | RN1305V | PN1228 | RN1487 | PN1363 | FN0669 |
| 10.91~08.95 | 3000 | 2JZ-GE | JZS143 | PN1157 | RN1487 | PN1142 | ||
| 10.91~08.95 | 3000 | 2JZ-GE | JZS145 | PN1157 | RN1487 | PN1142 | ||
| 01.95~12.01 | 3000 | 2JZ-GE | JZS155 | RN1305V | PN1228 | RN1487 | PN1363 | FN0669 |
| 08.98~01.01 | 2000 | 1G-FE | GX105 | RN1305V | PN1228 | RN1487 | PN1363 | FN0669 |
| 09.96~07.01 | 2500 | 1JZ-GE | JZX100 | RN1305VRN1150V | PN1228PN1324 | RN2029VRN1487 | PN1409PN1363PN1421 | FN0669 |
| 09.96~10.00 | 2500 | 1JZ-GE | JZX105 | RN1305V | PN1228 | RN1487 | PN1363 | FN0669 |
| 10.92~09.96 | 2500 | 1JZ-GE | JZX90 | RN1150VRN1305V | PN1324PN1228 | RN1487RN2029V | PN1323 | FN0669 |
| 01.92~09.96 | 2500 | 1JZ-GE | JZX93 | RN1305V | PN1228 | RN1487 | PN1363 | FN0669 |
| 10.92~09.95 | 3000 | JZX91 | RN1305V | PN1228 | RN1487 | PN1323PN1363 | ||
| 09.96~07.01 | 3000 | 2JZ-GE | JZX101 | RN1305V | PN1228 | RN1487 | PN1363 | FN0669 |
