NiBK Brakes:: Application Cross Reference and Image for NiBK : ROTOR DISC : RN1343V

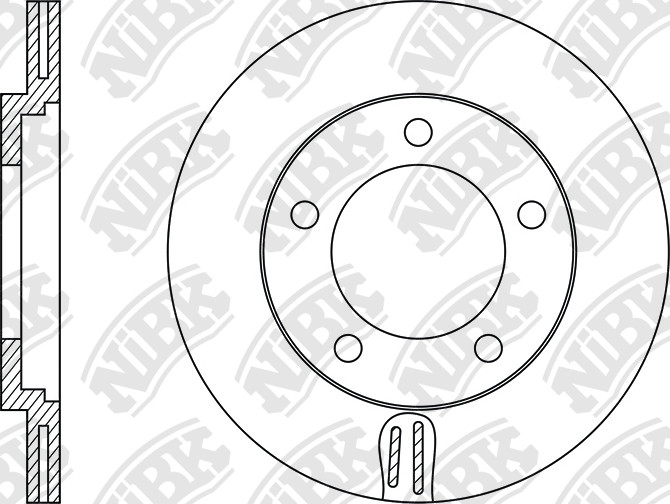

ROTOR DISC » RN1343V

Specification

Type

Vented

Disc Thickness (Max)

18

Num. of holes

5

Height

32.4

Centering Diameter

96

Front/Rear

Front

Pitch Circle Ø

118

Outter Ø

277

Disc Thickness (Min)

17

Drum Ø:

142

Cross Reference

BENDIX

561557B

DAIHATSU

4351287604000

DAIHATSU

4351287608000

OEM

4351287605000

TOYOTA

43512-87608

TOYOTA

4351287604

TOYOTA

4351287605

years	Eng	Eng No	Body	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

DAIHATSU » Feroza

01.89~12.97	1600	HD-#	F310	RN1343V	PN1291	DN1432	FN0022
01.89~12.97	1600	HD-E	F300	RN1343V	PN1291	DN1432	FN0022

DAIHATSU » Rocky

04.84~12.98	2800	DL#	F70	RN1343V	PN1291		FN0022
01.93~12.98	2800	DL#	F73	RN1343V	PN1291		FN2317
04.84~12.98	2800	DL#	F75	RN1343V	PN1291		FN0022
04.84~12.93	2800	DL#	F77	RN1343V	PN1291		FN0022
01.93~12.98	2800	DL#	F78	RN1343V	PN1291		FN2317

DAIHATSU » Rugger

09.87~04.93	2800	DL-T	F76G	RN1343V	PN1098 PN1291		FN0022
04.93~05.97	2800	DL-T	F78RG	RN1343V	PN1291		FN2317
