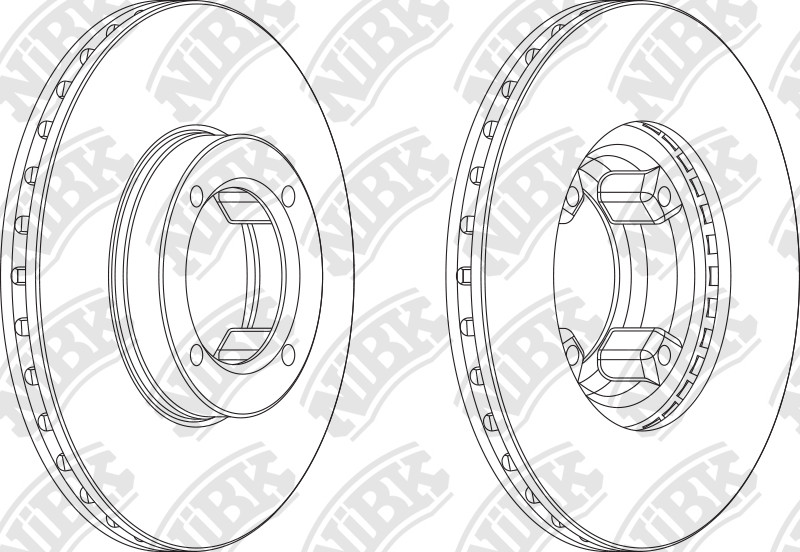

ROTOR DISC » RN1336V
Specification
Type
Vented
Disc Thickness (Max)
20
Num. of holes
4
Height
43.6
Centering Diameter
74
Front/Rear
Front
Pitch Circle Ø
94
Outter Ø
230
Disc Thickness (Min)
18.5
Drum Ø:
81
Structure Material
G3000
Cross Reference
BENDIX
561431B
TOYOTA
43512-28020
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 09.85~01.92 | 1500 | 5K-J | KM36V | RN1336V | PN1328 | DN1243 | FN2232FN2220 | |
| 10.82~09.84 | 1600 | 1Y-J | YM20V | RN1336V | PN1328 | DN1243 | FN2220 | |
| 10.82~08.85 | 1800 | 1C | CM20V | RN1336V | PN1328FN2267 | DN1243 | FN2232FN2220 | |
| 01.86~12.98 | 1800 | 1C | CM35LV | RN1336V | PN1328 | DN1243 | FN2220 | |
| 09.85~08.88 | 1800 | 1C | CM35V | RN1336V | PN1328 | DN1243 | FN2220 | |
| 01.86~09.92 | 2000 | 2C | CM30G | RN1336V | PN1328 | FN2220FN2232 | ||
| 08.88~01.92 | 2000 | 2C | CM31V | RN1336V | PN1328 | DN1243 | FN2220FN2232 | |
| 11.82~08.88 | 2000 | 2C | CR21G | RN1345VRN1533VRN1342VRN1336V | PN1404PN1328 | FN2232FN2220FN2252 | ||
| 09.84~04.92 | 2000 | 2C | CR27V | RN1534VRN1336V | PN1404PN1328 | DN1243 | FN2232FN2220 | |
| 08.85~01.92 | 2000 | 2C-T | CR21G | RN1336VRN1345VRN1533VRN1342V | PN1328PN1404 | DN1243 | FN2220FN2232 | |
| 08.87~08.87 | 2000 | 2C-T | CR28G | RN1336VRN1345VRN1533V | PN1328PN1404 | DN1243 | FN2232FN2220 |
| 10.86~08.90 | 1300 | 4K | KM50 | RN1336V | PN1328 | DN1243 | FN2220FN2232 | |
| 10.82~09.86 | 1300 | 4K-J | KM21 | RN1336V | PN1328FN2267 | DN1243 | FN2220FN2232 | |
| 10.86~06.99 | 1500 | 5K | KM51 | RN1336V | PN1328 | FN2232 | ||
| 10.82~08.85 | 1800 | 1C | CM20 | RN1336V | PN1328FN2267 | DN1243 | FN2220FN2269FN2232 | |
| 10.82~08.85 | 1800 | 1C | CM20G | RN1336V | PN1328 | DN1243 | FN2220 | |
| 10.82~09.86 | 1800 | 1C | CM25 | RN1336V | PN1328FN2267 | FN2269 | ||
| 10.86~10.89 | 1800 | 1C | CM50 | RN1336V | PN1328 | DN1243 | FN2220 | |
| 10.86~06.99 | 1800 | 2Y | YM55 | RN1336V | PN1328 | DN1243 | FN2220FN2232FN2339 | |
| 10.82~09.86 | 2000 | 2C | CM26 | RN1336V | PN1328FN2267 | FN2269 | ||
| 10.86~06.99 | 2000 | 2C | CM55 | RN1336V | PN1328 | DN1243 | FN2232FN2339FN2220 |
| 10.82~05.85 | 1300 | 4K-J | KM21 | RN1336V | PN1328FN2267 | DN1243 | FN2220FN2232FN2269 | |
| 09.85~01.92 | 1500 | 5K-U | KM30G | RN1336V | PN1328 | DN1243 | FN2220FN2232 | |
| 01.86~01.92 | 2000 | 2C | CM30LG | RN1336V | PN1328 | FN2220FN2232 | ||
| 08.85~01.92 | 2000 | 2C | CM36V | RN1336V | PN1328 | DN1243 | FN2220FN2232 | |
| 09.85~09.92 | 2000 | 2CT | CM30G | RN1336V | PN1328 | DN1243 | FN2220FN2232 |
