ROTOR DISC » RN1326V

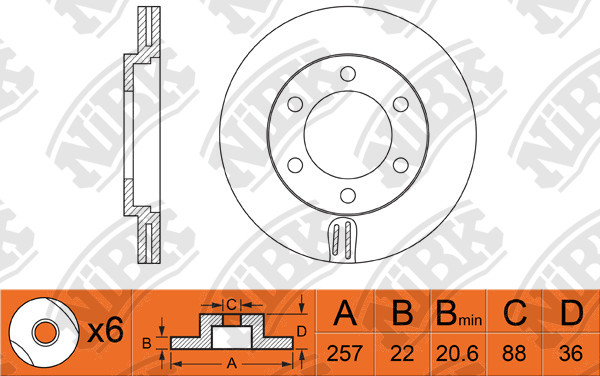

Specification

Type
Vented
Disc Thickness (Max)
22
Num. of holes
6
Height
36
Centering Diameter
88
Front/Rear
Front
Outter Ø
257
Drum Ø:
119
Hole Ø:
M12*1.25
Disc Thickness (Min)
20.6
Structure Material
G3000
Pitch Circle Ø
109

Cross Reference

BENDIX
561643B
GM
94172376
ISUZU
8-94172-376-1
ISUZU
8-94173-344
ISUZU
8-94173344-0
ISUZU
8941733441
ISUZU
8943619270
ISUZU
8943619271
ISUZU
8943724350
ISUZU
94172376
OEM
8941723760
OEM
8941733450
OEM
89436192701
OEM
93589243
OEM
9941723761
OEM
9943619271
OPEL
569801
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
01.02~01.07 3000 4JH1 TFS77 RN1327VRN1326V PN4801 DN1426 FN4467
05.85~09.03 2800 WHR55 RN1326V FN4402FN4434 FN4434FN4428 FN4404
04.98~05.02 2500 4JA1 TFR54 RN1326V PN4196 DN1423 FN4452
01.97~08.01 2500 4JA1-T TF#54H RN1326V PN4196 FN4462FNP4462
08.01~12.03 2500 4JA1-T TF#54H RN1326V PN4196 FNP4462FN4462
01.99~12.03 2800 4JB1 TFS55 RN1326V PN4196 DN1577 FNP4462FN4462
01.88~01.03 3100 4JG2 TFR69HDK RN1326V PN4196 DN1423 FN4452
11.88~02.91 2800 LL2 UBS20 RN1326V PN4196 RN1804
08.91~09.96 2200 C223 TFR RN1326V PN4196 FN4452
08.91~09.96 2200 C223 TFS RN1326V PN4196 FN4452
08.91~09.96 2300 4ZD1 TF RN1326V PN4196 FN4452
06.90~07.94 2500 4JA1 TFR RN1326V PN4196 FN4452
12.92~07.01 3100 4JG2T TF RN1326V PN4196 FN4452
03.92~11.98 2000 C20NE SED52 RN1326VRN1395V PN4258PN4196 RN1105V PN4299FN4452
03.92~11.98 2300 23DTR A RN1326V PN4196 FN4452

Exemption from liability: the catalog data is advisory and can be used for reference only
