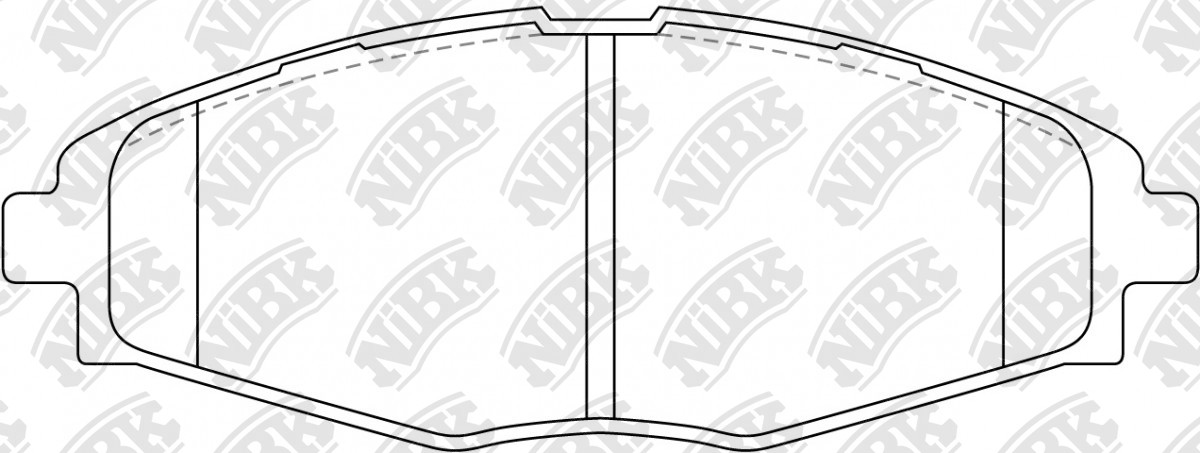

BRAKE PADS » PN0390
Specification
Length-1
126.9
Width-1
47.9
Thickness-1
16.5
Pcs In Set
4
Cross Reference
BENDIX AUS
DB1368
CHANGAN
CV60601502
Chery
S113501080
DAEWOO
96273708
DAEWOO
96281945
DAEWOO
96316582
DAEWOO
9644 6176
DAEWOO
96446175
DAEWOO
S4510004
FMSI
D1321-8433
GM
93747541
GM
96273708
GM
96288629
GM
96316582
GM
96446176
GM
96596770
KASHIYAMA
D11144
WVA
23241
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 01.98~08.00 | 800 | F8CV | M100 | RN1546 | PN0390 | DN1688 | FN11821 | |
| 07.00~12.05 | 800 | F8CV | M150 | RN1546 | PN0390 | DN1688 | FN11821 | |
| 01.03~05.05 | 1000 | B10S1 | M150 | RN1546 | PN0390 | DN1688 | FN11821 | |
| 01.05~09.13 | 1000 | B10S1 | M200 | RN1546 | PN0390 | DN1688 | FN11821 |
| 01.10~01.17 | 800 | F8CV | HB LITE | RN1546RN1206V | PN0390 | DN1688 | FN11821 | |
| 05.07~01.19 | 800 | LBF / A08S3 | KA48 SG RHD | RN1206VRN1546 | PN0390 | DN1688 | FN11821 | |
| 01.05~01.10 | 800 | LBF / A08S3 | M04 GEN LHD | RN1546 | PN0390 | DN1688 | FN11821 | |
| 01.08~01.15 | 800 | LBF / A08S3 | M04 GEN RHD | RN1546 | PN0390 | DN1688 | FN11821 | |
| 01.08~01.15 | 800 | LBF / A08S3 | MD6 GEN LHD | RN1546 | PN0390 | DN1688 | FN11821 | |
| 01.05~05.07 | 800 | LQ2 / A08S3 | KA48 SG RHD | RN1546 | PN0390 | DN1688 | FN11821 | |
| 01.05~01.08 | 800 | LQ2 / A08S3 | MD6 GEN LHD | RN1546 | PN0390 | DN1688 | FN11821 | |
| 01.05~01.10 | 1000 | B10S1 | KF48 RHD | RN1206VRN1546 | PN0390 | DN1688 | FN11821 | |
| 01.08~01.15 | 1000 | B10S1 | MJ61 GL | RN1546 | PN0390 | DN1688 | FN11821 | |
| 01.08~01.15 | 1000 | LA2 | M250 | RN1546 | PN0390 | DN1688 | FN11821 |
| 07.97~12.10 | 1400 | A14SMS | KLAT | PN0234PN0390PN0374 | DN1678DN1841 | FN11622 | ||
| 08.97~06.99 | 1500 | A15SMS | KLAT | PN0390 | DN1841DN1678 | FN11622 | ||
| 04.05~06.09 | 1500 | LX6 | T100 | PN0390 | DN1678DN1841 | FN11622 |
| 05.05~01.10 | 800 | F8CV | HB VTN | RN1546RN1206V | PN0390 | DN1688 | FN11821 | |
| 01.98~08.00 | 800 | F8CV | M100 | RN1546 | PN0390 | DN1688 | FN11821 | |
| 07.00~12.05 | 800 | F8CV | M150 | RN1546 | PN0390 | DN1688 | FN11821 | |
| 07.00~02.16 | 800 | F8CV | M150 (UZ) | RN1546 | PN0390 | DN1688 | FN11821 | |
| 08.07~01.11 | 800 | LBF / A08S3 | M200 | RN1546 | PN0390 | DN1688 | FN11821 | |
| 01.03~05.05 | 1000 | B10S1 | M150 | RN1546 | PN0390 | DN1688 | FN11821 | |
| 01.05~09.13 | 1000 | B10S1 | M150 | RN1546 | PN0390 | DN1688 | FN11821 | |
| 09.04~02.16 | 1000 | B10S1 | M150 (UZ) | RN1546 | PN0390 | DN1688 | FN11821 | |
| 12.01~06.05 | 1000 | F10CV | M150 | PN0390 | DN1688 | FN11821 |
