ROTOR DISC » RN1250V

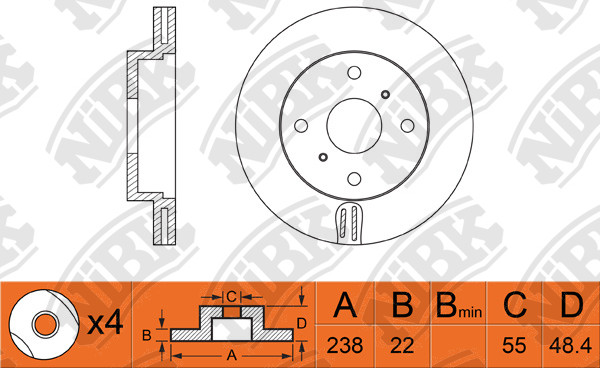

Specification
Type
Vented
Disc Thickness (Max)
22
Num. of holes
4
Height
48.4
Centering Diameter
55
Pitch Circle Ø
100
Front/Rear
Front
Outter Ø
238
Drum Ø:
127
Structure Material
G3000
Disc Thickness (Min)
20.5
Cross Reference
TOYOTA
43512-12350
TOYOTA
43512-12360
TOYOTA
43512-12580
TOYOTA
43512-12590
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 05.91~05.95 | 1500 | 5A-FE | AE100 | RN1250V | PN1077 | FN2311 | ||
| 05.91~08.00 | 1500 | 5A-FE | AE100G | RN1250V | PN1077 | FN2311 | ||
| 10.99~08.00 | 1600 | 3ZZ-FE | ZZE112 | RN1250V | PN1302PN1322PN1194 | RN1228 | PN1321FN2311FN2285 | |
| 11.91~11.01 | 1600 | 4A-FE | AE101 | RN1483VRN1250V | PN1077 | FN2311 | ||
| 09.91~08.00 | 1600 | 4A-FE | AE104 | RN1250V | PN1077 | FN2285 | ||
| 05.96~06.02 | 1600 | 4A-FE | AE109V | RN1250V | PN1077 | FN2313 | ||
| 01.95~12.04 | 1600 | 4A-FE | AE111 | RN1250VRN1483V | PN1077PN1322 | DN1244 | FN2311PN1321 | |
| 05.95~08.00 | 1600 | 4A-FE | AE114 | RN1250V | PN1077 | DN1113 | FN2285 | |
| 06.91~05.95 | 2000 | 2C | CE100 | RN1250V | PN1077PN1322 | DN1244 | FN2311 | |
| 05.95~04.98 | 2000 | 2C | CE100G | RN1250V | PN1077 | DN1244 | FN2311 | |
| 09.91~05.95 | 2000 | 2C | CE104 | RN1250V | PN1077 | DN1113 | FN2285 | |
| 01.91~04.98 | 2000 | 2C | CE109 | RN1250V | PN1077 | FN2313 | ||
| 05.95~04.98 | 2000 | 2C | CE110 | RN1250V | PN1077 | DN1244 | FN2311 | |
| 05.95~04.98 | 2000 | 2C | CE114 | RN1250V | PN1077 | DN1113 | FN2285 | |
| 04.98~08.00 | 2200 | 3C-E | CE113 | RN1250V | PN1077 | DN1244 | FN2311 | |
| 04.98~08.00 | 2200 | 3C-E | CE116 | RN1250V | PN1077 | DN1113 | FN2285 |
| 06.91~05.95 | 1500 | 5A-FE | AE100 | RN1250V | PN1077 | DN1244 | FN2311 | |
| 06.91~05.95 | 1600 | 4A-FE | AE104 | RN1250V | PN1077 | DN1113 | FN2285 | |
| 01.91~01.02 | 1600 | 4A-FE | AE109V | RN1250V | PN1077 | FN2313 | ||
| 05.95~08.00 | 1600 | 4A-FE | AE114 | RN1250V | PN1077 | DN1113 | FN2285 | |
| 09.91~04.98 | 2000 | 2C | CE100 | RN1250V | PN1077 | DN1113 | FN2285 | |
| 09.91~05.95 | 2000 | 2C | CE104 | RN1250V | PN1077 | DN1113 | FN2285 | |
| 01.91~04.98 | 2000 | 2C | CE108G | RN1250V | PN1077PN1322 | FN2311 | ||
| 06.91~04.98 | 2000 | 2C | CE109V | RN1250V | PN1077 | FN2313 | ||
| 05.95~04.98 | 2000 | 2C | CE110 | RN1250V | PN1077 | DN1244 | FN2311 | |
| 05.95~04.98 | 2000 | 2C | CE114 | RN1250V | PN1077 | DN1113 | FN2285 | |
| 04.98~06.02 | 2200 | 3C-E | CE102G | RN1250V | PN1077PN1322 | FN2311 |
