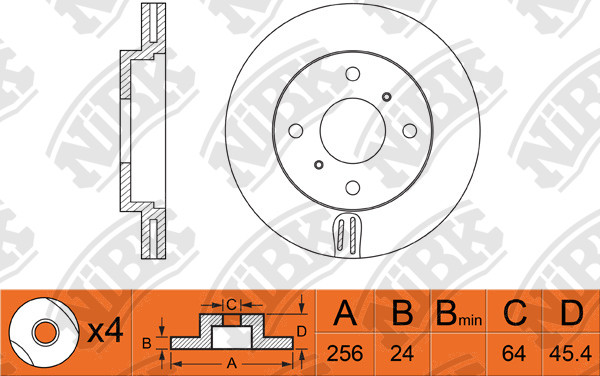

ROTOR DISC » RN1222V

Specification

Type
Vented
Disc Thickness (Max)
24
Num. of holes
4
Height
45.4
Centering Diameter
64
Pitch Circle Ø
100
Front/Rear
Front
Outter Ø
256
Drum Ø:
144.2
Disc Thickness (Min)
22.4
Structure Material
G3000
Notes
Thickness : 24

Cross Reference

MITSUBISHI
MB699285
MITSUBISHI
MR449770
MITSUBISHI
MR449771
MITSUBISHI
MR955636
PROTON
MB699285
PROTON
MR449771
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
07.00~12.05 2000 4G94 CR6W RN1222V PN3271 FN6723
09.00~08.13 1300 4G13 CS1A RN1222V PN3462 DN1340 FN6729
01.03~11.10 1500 4G15 CS2A RN1222V PN3462 DN1340 FN6729FN6723
12.04~07.07 1500 4G15 CS2W RN1222V PN3462 DN1340 FN6729
09.00~06.05 1600 4G18 CS3A RN1237VRN1222VRN1011V PN3462PN3469 DN1340DN1341RN1158 PN3502FN6729 FN6704
09.00~09.13 1600 4G18 CS3A GLX LHD RN1222V PN3462 DN1341DN1340 FN6729
01.91~01.96 1600 4G92 CA4A RN1222V PN3271 RN1923 PN3314
06.92~10.96 1800 4G93 CB5A RN1222V PN3271 RN1923 PN3314
08.96~08.00 1800 4G93 CK5AR RN1222V PN3285 DN1352 FN6701
06.00~06.07 1800 4G93 CS5AR RN1222V PN3462 DN1340 FN6729
12.02~09.09 1800 4G93 CS5AZ RN1222V PN3462 DN1340 FN6729
12.04~08.07 2000 4G94 CS6A RN1222VRN1011V PN3462 DN1341DN1340 FN6729
06.01~12.06 1600 6G74 CS5W RN1222V PN3462 DN1340 FN6729PN3502 FN6704
01.00~08.02 1300 4G13 CQ1A RN1222V PN3462 DN1340 FN6729

Exemption from liability: the catalog data is advisory and can be used for reference only
