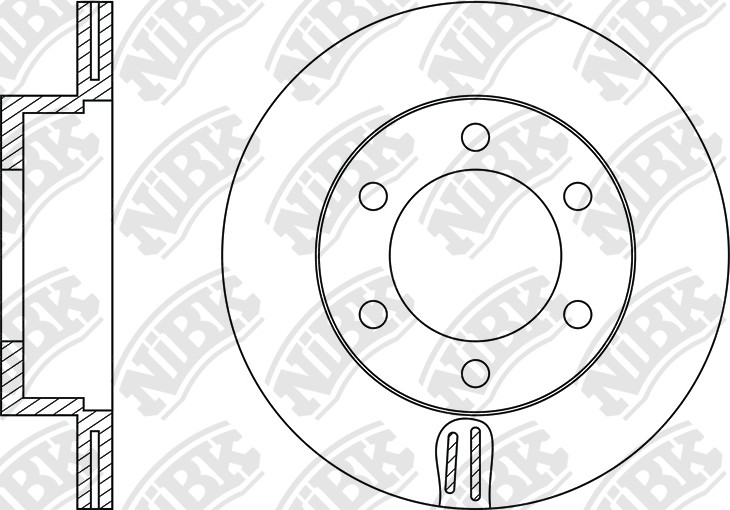

ROTOR DISC » RN1128V

RN1128V

Specification

Type
Vented
Disc Thickness (Max)
21.8
Num. of holes
6
Height
70
Centering Diameter
108
Front/Rear
Front
Pitch Circle Ø
139.7
Outter Ø
319
Disc Thickness (Min)
20
Drum Ø:
173
Structure Material
G3000

Variation

RN1128DSET[NiBK]

Cross Reference

BENDIX
562168B
TOYOTA
43512-35210
TOYOTA
4351260120
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

FOTON   »   Tunland

08.15~ 2800 ISF28S51 RN1128V PN1219PN6036

TOYOTA   »   4 Runner

11.95~11.02 2700 3RZ-FE RZN180L RN1128VRN1830V PN1219PN1387 DN1214 FN2305
11.95~12.02 2700 3RZ-FE RZN185 RN1128VRN1830V PN1219PN1387 DN1214 FN2305
11.95~12.02 3000 1KZ-T KZN185L RN1830VRN1128V PN1219 DN1214 FN2305
11.95~08.02 3400 5VZ-FE VZN180L RN1830VRN1128V PN1387PN1219 DN1214 FN0686FN2305
11.95~12.02 3400 5VZ-FE VZN185 RN1128VRN1830V PN1219PN1387 DN1214 FN2305

TOYOTA   »   Hilux Surf

07.98~11.02 2700 3RZ-FE RZN180W RN1128V PN1219 DN1214 FN2305
11.95~11.02 2700 3RZ-FE RZN185W RN1128V PN1219 DN1214 FN2305
08.00~11.02 3000 1KD-FTV KDN185W RN1128V PN1219 DN1214 FN2305
11.95~08.00 3000 1KZ-TE KZN185W RN1128V PN1219 DN1214 FN2305
11.95~11.02 3400 5VZ-FE VZN185W RN1128V PN1219 DN1214 FN2305

TOYOTA   »   Land Cruiser Prado

04.96~10.02 2700 3RZ-FE RZJ90 RN1128V PN1219 RN1216V PN1243
04.96~11.02 2700 3RZ-FE RZJ95L RN1128V PN1387PN1219 RN1216V PN1243FN2305 FN0642
04.97~09.02 2700 3RZ-FE RZJ95R RN1128V PN1219PN1387 RN1216VDN1214 PN1243FN2305 FN0642
04.96~11.02 2700 3RZ-FE RZJ95W RN1128V PN1219PN1387 RN1216V FN2305PN1243 FN0642
04.96~08.20 2800 3L LJ95 RN1128V PN1219 DN1214 FN2305
04.96~09.20 2800 3L LJ95L RN1128V PN1219 DN1214 FN2305
04.96~11.02 3000 1KD-FTV KDJ90L RN1128V PN1387PN1219 RN1216V FN2305PN1243 FN0642
08.00~11.02 3000 1KD-FTV KDJ90W RN1128V PN1219PN1387 RN1216V PN1243 FN0642
08.00~09.02 3000 1KD-FTV KDJ95L RN1128V PN1387PN1219 RN1216V PN1243 FN0642
08.00~09.02 3000 1KD-FTV KDJ95R RN1128V PN1387PN1219 RN1216V PN1243 FN0642
08.00~11.02 3000 1KD-FTV KDJ95W RN1128V PN1387PN1219 RN1216V PN1243 FN0642
04.96~10.02 3000 1KZ-TE KZJ90L RN1128V PN1387PN1219 RN1216V FN2305PN1243 FN0642
04.96~08.00 3000 1KZ-TE KZJ90R RN1128V PN1387PN1219 RN1216V FN2305PN1243 FN0642
04.96~08.00 3000 1KZ-TE KZJ90W RN1128V PN1219 RN1216V PN1243 FN0642
04.96~09.02 3000 1KZ-TE KZJ95L RN1128V PN1387PN1219 RN1216V PN1243 FN0642
04.95~11.02 3000 1KZ-TE KZJ95W RN1128V PN1219 RN1216V PN1243 FN0642
04.96~10.02 3400 5VZ-FE VZJ90W RN1128V PN1219 RN1216V PN1243 FN0642
04.96~10.03 3400 5VZ-FE VZJ95L RN1128V PN1219PN1387 RN1216V PN1243 FN0642
04.96~10.02 3400 5VZ-FE VZJ95R RN1128V PN1219PN1387 RN1216V FN2305PN1243 FN0642
04.96~11.02 3400 5VZ-FE VZJ95W RN1128V PN1387PN1219 RN1216V PN1243 FN0642

TOYOTA   »   Tacoma (USA)

01.95~09.04 3400 5VZ-FE VZN170 RN1830VRN1128V PN1830PN1387PN1219 DN1214 FN2305FN0686
