NiBK Brakes:: Application Cross Reference and Image for NiBK : ROTOR DISC : RN1120V

ROTOR DISC » RN1120V

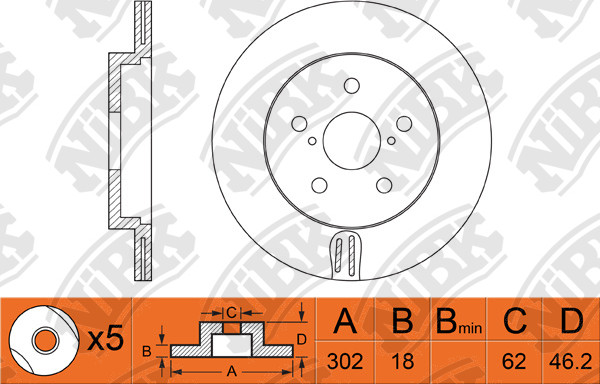

Specification

Type

Vented

Disc Thickness (Max)

18

Num. of holes

5

Height

46.2

Centering Diameter

62

Front/Rear

Front

Pitch Circle Ø

114.3

Outter Ø

302

Drum Ø:

156

Hole Ø:

14.7

Disc Thickness (Min)

16

Structure Material

G3000

Variation

RN1120DSET[NiBK]

Cross Reference

BENDIX

562119B

TOYOTA

43512-42010

years	Eng	Eng No	Body	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

TOYOTA » RAV 4

08.96~05.00	2000	3S-#E	SXA10W	RN1120V	PN1322	DN1211 RN1207	FN2333 PN1424	FN0567
04.95~05.00	2000	3S-#E	SXA11	RN1120V	PN1322	RN1207 DN1211	FN2333 PN1424
01.94~05.00	2000	3S-FE	SXA10G	RN1120V	PN1322	DN1211	FN2333
04.95~08.00	2000	3S-FE	SXA11L	RN1120V	PN1322	DN1211	FN2333
04.95~05.00	2000	3S-FE	SXA11R	RN1120V	PN1322	DN1211	FN2333
09.97~05.00	2000	3S-FE	SXA15G	RN1120V	PN1322	DN1211	FN2333
02.96~08.00	2000	3S-FE	SXA15L	RN1120V	PN1322	DN1211	FN2333
09.97~05.00	2000	3S-FE	SXA16G	RN1120V	PN1322	DN1211	FN2333
02.96~08.00	2000	3S-FE	SXA16L	RN1120V	PN1322	DN1211	FN2333
01.93~01.00	2000	3SFE	SXA10L	RN1120V	PN1322	DN1211	FN2333
