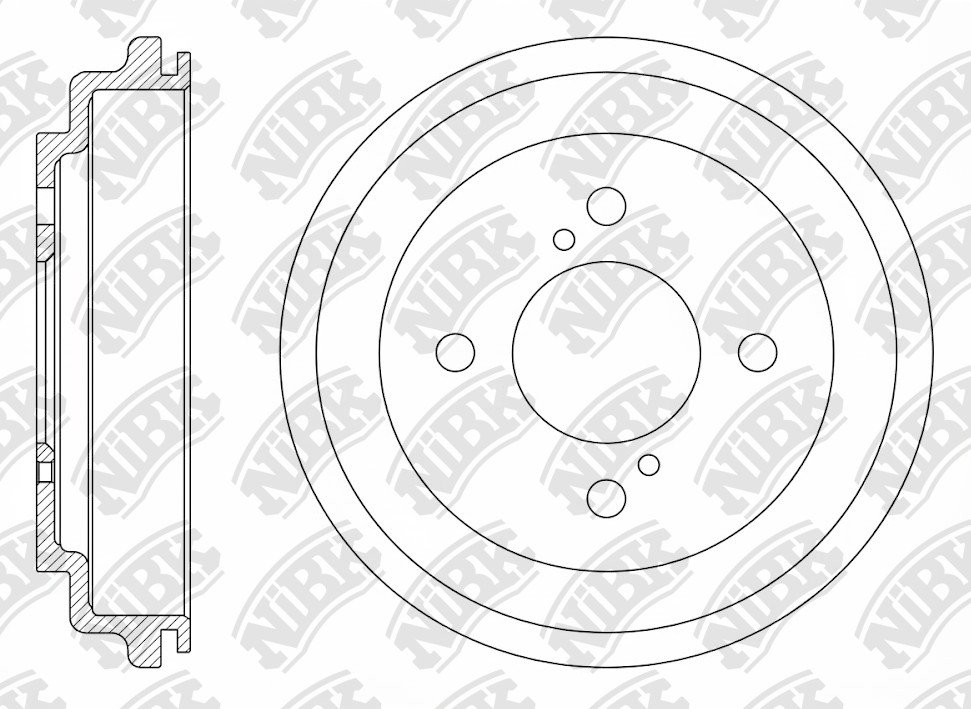

DRUM BRAKE » DN1138

Specification

Outter Ø

216

Num. of holes

4

Hole Ø

12.6

Centering Diameter

62

Height

50.5

Pitch Circle Ø

100

Drum Ø

180

Structure Material

G3000

Cross Reference

SUZUKI

43511-84M00

SUZUKI

43511-84M00-000

SUZUKI

43511M76M00

years	Eng	Eng No	Body	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

MARUTI SUZUKI » CELERIO

01.14~07.21

1000

K10B

FC42S LHD

PN9426

DN1138

FN0660

SUZUKI » Celerio

01.14~07.21	1000	K10B	FE42S		PN9426	DN1138	FN0660
03.14~	1000	K10B	LF	RN2721V	PN9443	DN1138	FN9804
01.14~06.17	1000	K10BN	FC42S TYPE1		PN9426	DN1138	FN0660
06.17~07.21	1000	K10BN	FC42S TYPE2		PN9426	DN1138	FN0660
01.14~07.21	1000	K10C	AVK310		PN9426	DN1138	FN0660
