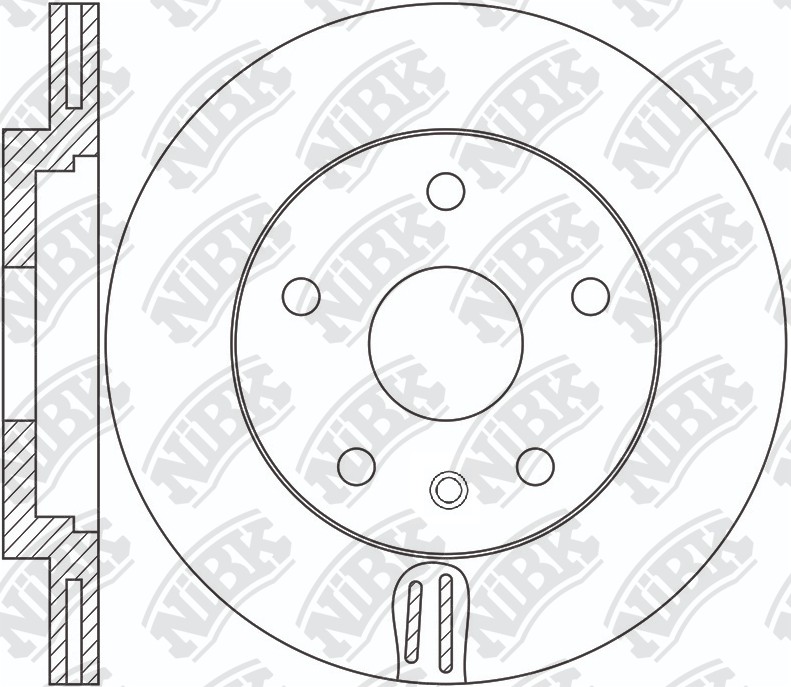

ROTOR DISC » RN2813V

RN2813V

Specification

Type
Vented
Outter Ø
292
Num. of holes
5
Hole Ø:
15.3
Disc Thickness (Max)
26
Disc Thickness (Min)
24
Height
50.1
Centering Diameter
65
Pitch Circle Ø
112
Drum Ø:
144.3
Front/Rear
Front
Structure Material
G3000

Cross Reference

FORD (JMC)
FS1-1125-AA
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

FORD   »   Territory

08.20~ 1500 JX4G15C5L JX6462 RN2813V PN51026PN51037 RN2814 PN0044PN51038
