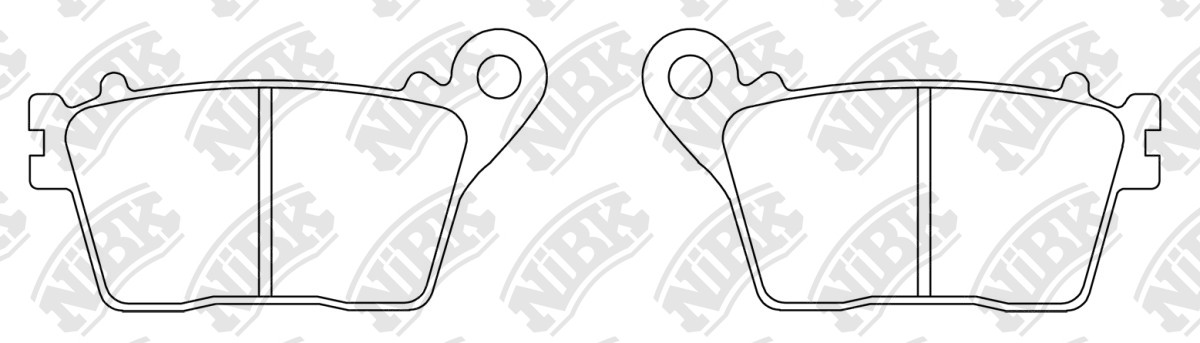

MOTORCYCLE BRAKE PADS » PM242

PM242

Specification

Length-1
77.3
Width-1
41.5
Thick-1
9
Length-2
77.3
Width-2
41.5
Thick-2
9
TYP
R

Cross Reference

HONDA
06435 MEL D21
HONDA
06435 MEL D22
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

HONDA   »   CB-600

01.07~ 600 PM205 PM242

HONDA   »   CBR-1000

01.06~01.07 1000 PM203 PM242
01.08~01.08 1000 PM203 PM242
01.09~ 1000 PM203 PM242

HONDA   »   CBR-600

01.07~ 600 PM203 PM242
01.08~ 600 PM203 PM242
01.09~ 600 PM203 PM242
01.11~ 600 PM205PM029 PM242

KAWASAKI   »   ZX-10R-1000

01.11~ 1000 PM204 PM242

SUZUKI   »   GSX-R-1000

01.09~01.11 1000 PM204 PM242
01.12~ 1000 PM601 PM242

SUZUKI   »   GSX-R-600

01.11~ 600 PM601 PM242

SUZUKI   »   GSX-R-750

01.11~ 750 PM601 PM242
Copyright © 2003-2024 JNBK Corporation. All Rights Reserved

Exemption from liability: the catalog data is advisory and can be used for reference only
