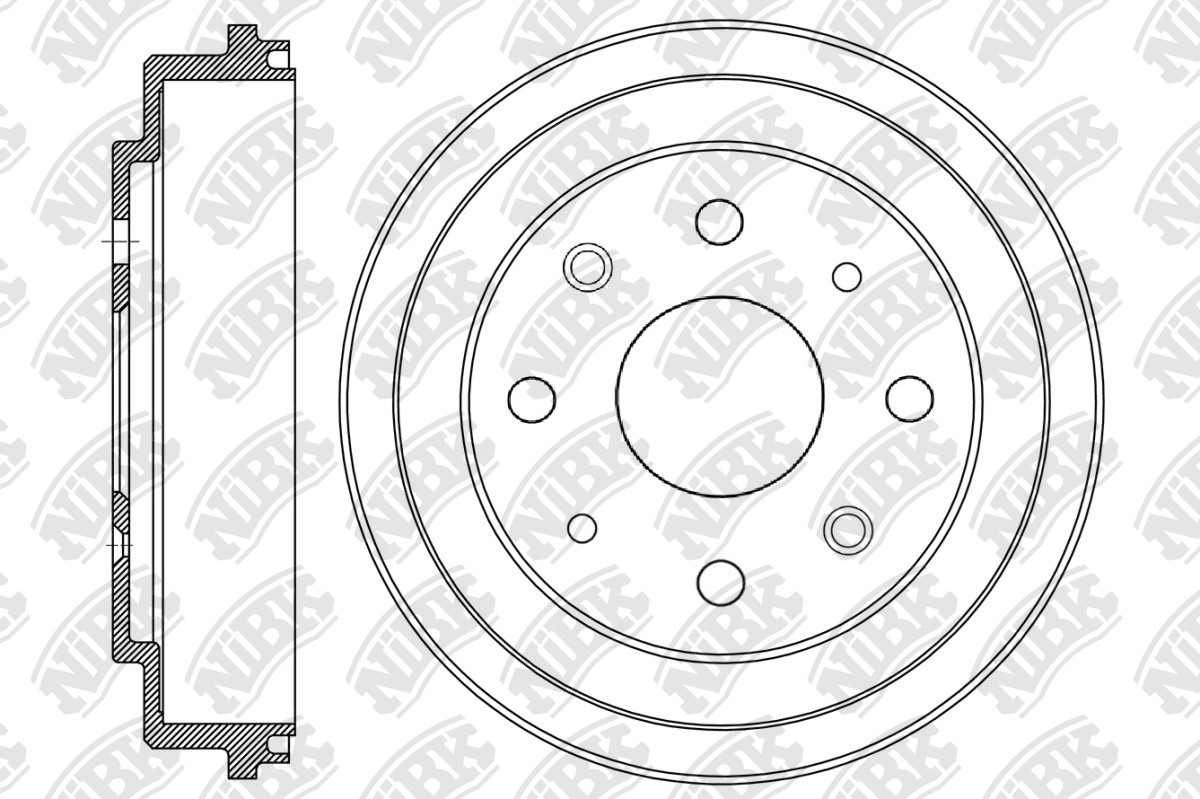

DRUM BRAKE » DN1128

DN1128

Specification

Outter Ø
240
Num. of holes
4
Hole Ø
12.7
Centering Diameter
59
Height
62.2
Pitch Circle Ø
100
Drum Ø
200.4
Structure Material
G3000

Cross Reference

CHANGAN
3502300-BS01
CHANGAN
3502301-BS01
CHANGAN
3502400-BS01
CHANGAN
B511F260302-1300
CHANGAN
B511F260302-1400
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

CHANGAN   »   Alsvin

05.18~ 1500 JL473QF B511 (SC7152) RN2532V PN8012 DN1128 FN0825
