MOTORCYCLE BRAKE PADS » PM209

PM209

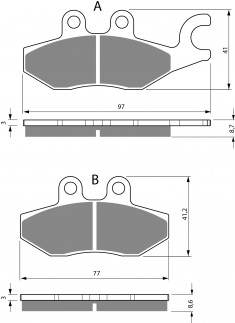

Specification

Length-1
97
Width-1
41
Thick-1
8.7
Length-2
77
Width-2
41.2
Thick-2
8.6
TYP
R

Cross Reference

years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

PIAGGIO VESPA   »   Beverly-300

01.08~01.10 300 PM172 PM209
01.08~01.11 300 PM168 PM209

PIAGGIO VESPA   »   MP3-300

01.10~ 300 PM031 PM209PM283

PIAGGIO VESPA   »   MP3-500

01.09~01.10 500 PM031 PM209

PIAGGIO VESPA   »   X7-125

01.08~01.09 125 PM172 PM209

PIAGGIO VESPA   »   X7-250

01.08~01.09 250 PM172 PM209

PIAGGIO VESPA   »   X7-300

01.09~ 300 PM172 PM209

PIAGGIO VESPA   »   X9-125

01.06~01.07 125 PM209 PM220

PIAGGIO VESPA   »   X9-250

01.05~01.06 250 PM172PM209 PM220
