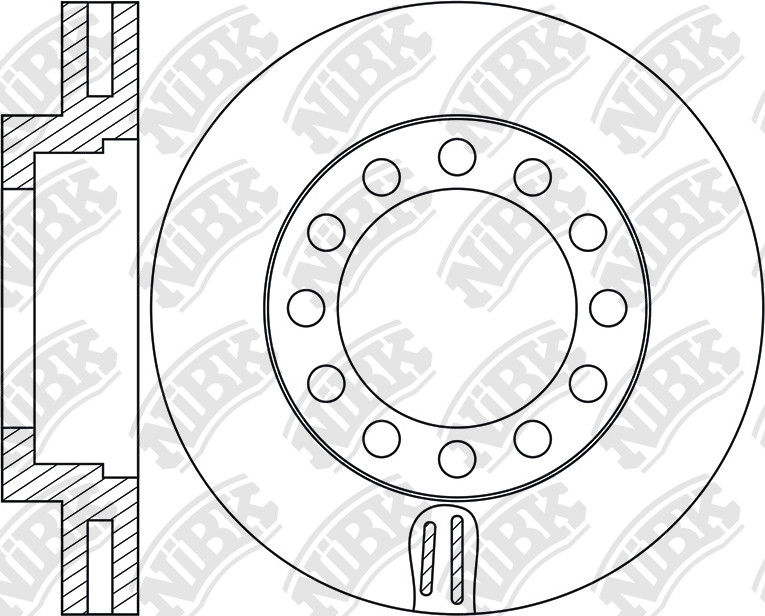

ROTOR DISC » RN2049V

RN2049V

Specification

Type
Vented
Outter Ø
282
Num. of holes
12
Hole Ø:
12.5
Disc Thickness (Max)
35
Height
62.6
Centering Diameter
110
Pitch Circle Ø
136
Drum Ø:
160
Structure Material
G3000

Cross Reference

ISUZU
8-94475-286-1
ISUZU
8-94475-286-2
ISUZU
8-94475-286-3
ISUZU
8-94475-286-4
ISUZU
8-97015-857-0
ISUZU
8-97015-887-0
NISSAN
40206-89TA2
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

ISUZU   »   ELF

05.93~05.03 4300 4HF1 NPR66 RN2049V PN4288FN4451BL1054 FN4459BL1055 FN4466
