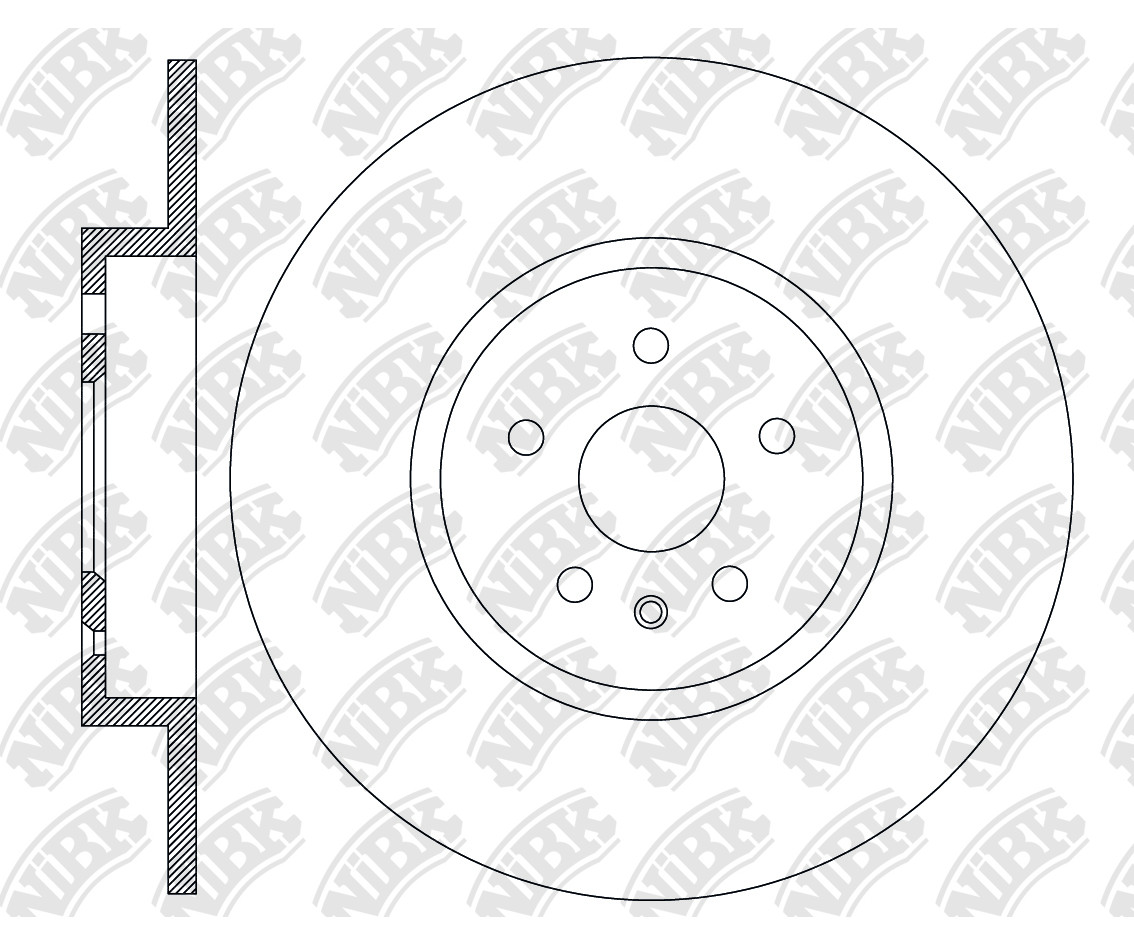

ROTOR DISC » RN2637

Specification

Type
Solid
Outter Ø
260
Num. of holes
5
Disc Thickness (Max)
10.5
Height
34.3
Centering Diameter
60
Pitch Circle Ø
105
Front/Rear
Rear
Structure Material
G3000
Disc Thickness (Min)
8.4

Cross Reference

GM
90905240
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
05.20~ 1000 LIW SK8 RN2635V PN52023 RN2637 PN52024
03.18~ 1000 LJI SK2 RN2635V PN52023 RN2637 PN52024
05.21~ 1300 LIY 1K#19 SDN MX RN2635V PN52023 RN2637 PN52024PN52028
04.20~ 1500 L2B SK8 RN2635V PN52023 RN2637 PN52028PN52024

Exemption from liability: the catalog data is advisory and can be used for reference only
