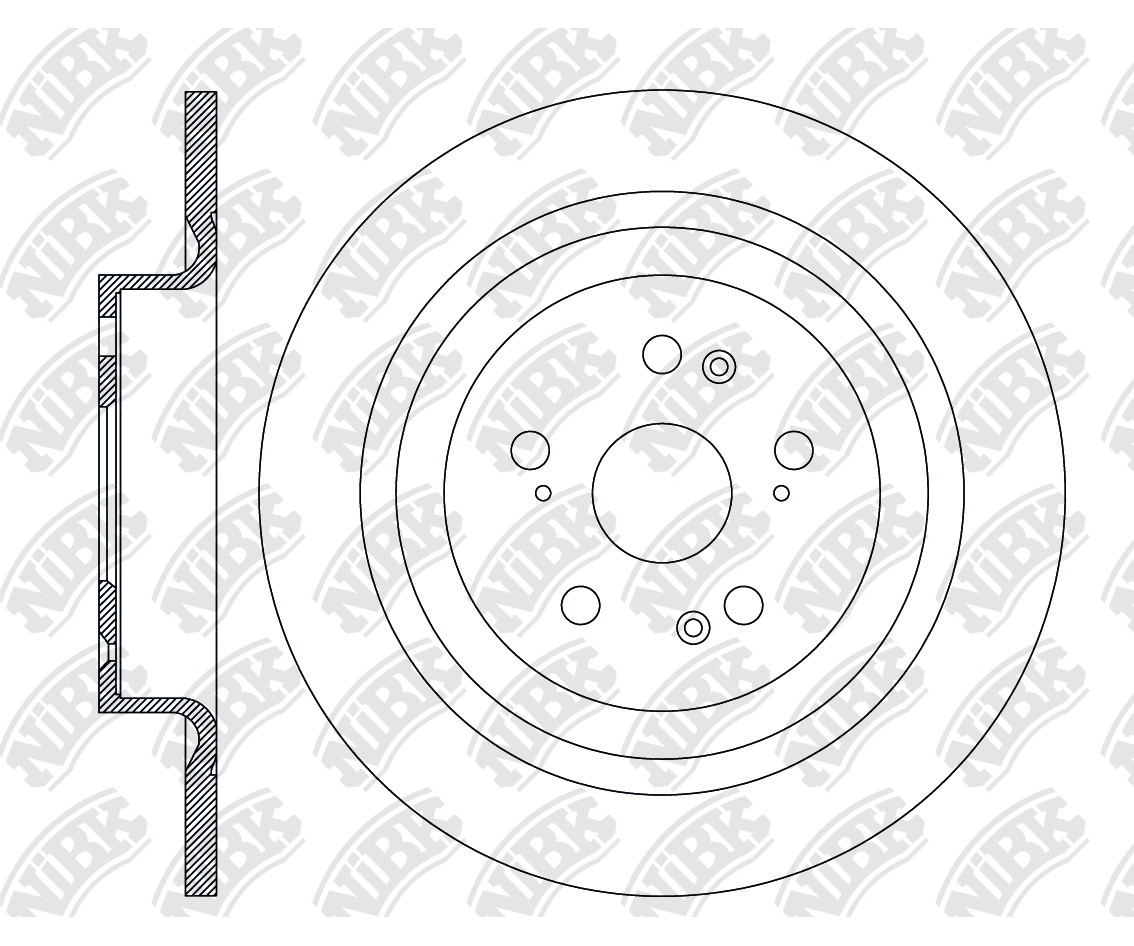

ROTOR DISC » RN2585

Image Not Available

Specification

Type
Solid
Outter Ø
`309
Num. of holes
5
Hole Ø:
15
Disc Thickness (Max)
10
Disc Thickness (Min)
8
Height
33
Centering Diameter
68.5
Pitch Circle Ø
114.3
Drum Ø:
170
Front/Rear
Rear
Structure Material
G3000

Cross Reference

GREAT WALL
3502105XGW01A
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

HAVAL   »   Big Dog DaGou

01.21~ GW4N20 CC6460AZ RN2559V PN6070 RN2585 PN6045
09.20~ 1500 GW4B15A CC6460AZ RN2559V PN6049PN6071 RN2585 PN6068

HAVAL   »   Big Dog DaGou II

02.23~ 1500 GW4B15L CC6470CF RN2559V PN6071 RN2585 PN6045

HAVAL   »   Dargo

04.22~ 2000 GW4N20 CC6460 RN2559V PN6049PN6070 RN2585 PN6068PN6045

HAVAL   »   F7 II

08.24~ 1500 GW4B15D CC6480AL RN2559V PN6049 RN2585 PN6068
08.24~ 2000 GW4N20 CC6480AL RN2559V PN6070 RN2585 PN6068

HAVAL   »   H6

01.21~ 2000 GW4N20 CC6470AH RN2559V PN6049 RN2585 PN6068

HAVAL   »   H6S

10.21~ 2000 GW4N20 CC6470BK RN2559V PN6049 RN2585 PN6045
