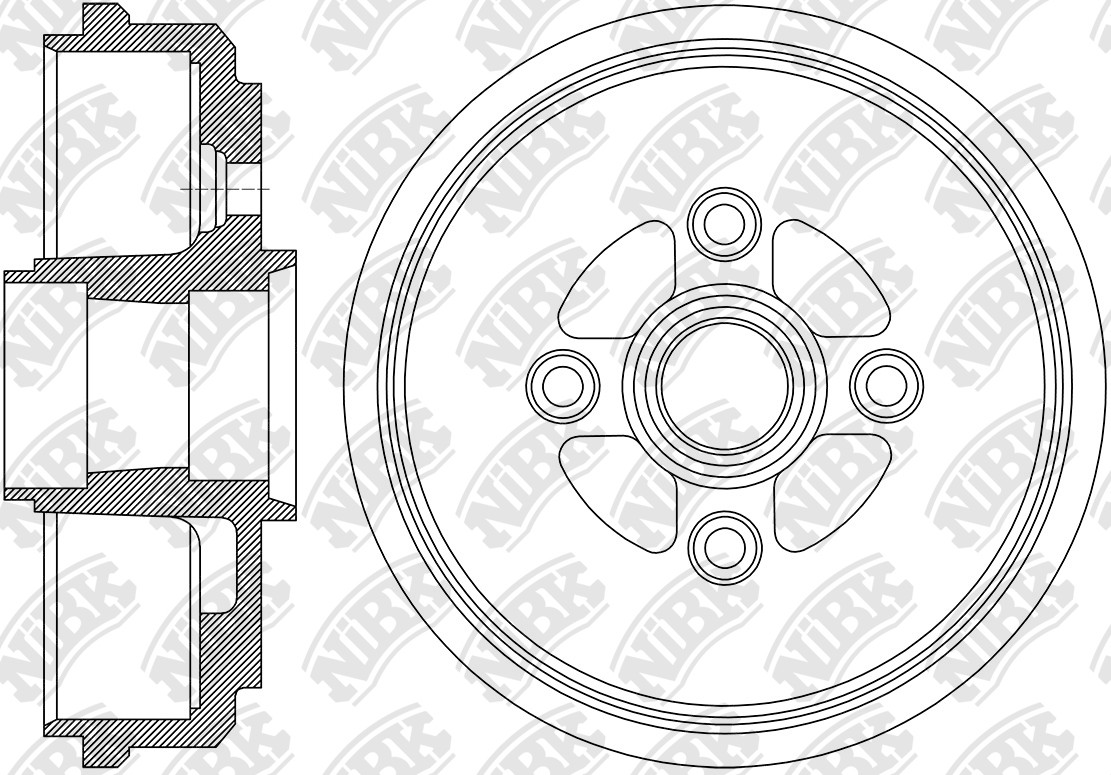

DRUM BRAKE » DN1688H
Specification
Outter Ø
205.5
Num. of holes
4
Hole Ø
11.8
Centering Diameter
51.9
Height
80
Pitch Circle Ø
114.3
Drum Ø
180
Structure Material
G3000
Notes
w/Bearings
Variation
Cross Reference
DAEWOO
96316636
GM
96316636
GM
96318925
GM
96320387
GM
96457238
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 01.98~08.00 | 800 | F8CV | M100 | RN1546 | PN0390 | DN1688 | FN11821 | |
| 07.00~12.05 | 800 | F8CV | M150 | RN1546 | PN0390 | DN1688 | FN11821 | |
| 01.03~05.05 | 1000 | B10S1 | M150 | RN1546 | PN0390 | DN1688 | FN11821 | |
| 01.05~09.13 | 1000 | B10S1 | M200 | RN1546 | PN0390 | DN1688 | FN11821 |
| 01.10~01.17 | 800 | F8CV | HB LITE | RN1206VRN1546 | PN0390 | DN1688 | FN11821 | |
| 05.07~01.19 | 800 | LBF / A08S3 | KA48 SG RHD | RN1546RN1206V | PN0390 | DN1688 | FN11821 | |
| 01.05~01.10 | 800 | LBF / A08S3 | M04 GEN LHD | RN1546 | PN0390 | DN1688 | FN11821 | |
| 01.08~01.15 | 800 | LBF / A08S3 | M04 GEN RHD | RN1546 | PN0390 | DN1688 | FN11821 | |
| 01.08~01.15 | 800 | LBF / A08S3 | MD6 GEN LHD | RN1546 | PN0390 | DN1688 | FN11821 | |
| 01.05~05.07 | 800 | LQ2 / A08S3 | KA48 SG RHD | RN1546 | PN0390 | DN1688 | FN11821 | |
| 01.05~01.08 | 800 | LQ2 / A08S3 | MD6 GEN LHD | RN1546 | PN0390 | DN1688 | FN11821 | |
| 01.05~01.10 | 1000 | B10S1 | KF48 RHD | RN1206VRN1546 | PN0390 | DN1688 | FN11821 | |
| 01.08~01.15 | 1000 | B10S1 | MJ61 GL | RN1546 | PN0390 | DN1688 | FN11821 | |
| 01.08~01.15 | 1000 | LA2 | M250 | RN1546 | PN0390 | DN1688 | FN11821 |
| 05.05~01.10 | 800 | F8CV | HB VTN | RN1206VRN1546 | PN0390 | DN1688 | FN11821 | |
| 01.98~08.00 | 800 | F8CV | M100 | RN1546 | PN0390 | DN1688 | FN11821 | |
| 07.00~12.05 | 800 | F8CV | M150 | RN1546 | PN0390 | DN1688 | FN11821 | |
| 07.00~02.16 | 800 | F8CV | M150 (UZ) | RN1546 | PN0390 | DN1688 | FN11821 | |
| 08.07~01.11 | 800 | LBF / A08S3 | M200 | RN1546 | PN0390 | DN1688 | FN11821 | |
| 01.03~05.05 | 1000 | B10S1 | M150 | RN1546 | PN0390 | DN1688 | FN11821 | |
| 01.05~09.13 | 1000 | B10S1 | M150 | RN1546 | PN0390 | DN1688 | FN11821 | |
| 09.04~02.16 | 1000 | B10S1 | M150 (UZ) | RN1546 | PN0390 | DN1688 | FN11821 | |
| 12.01~06.05 | 1000 | F10CV | M150 | PN0390 | DN1688 | FN11821 |
