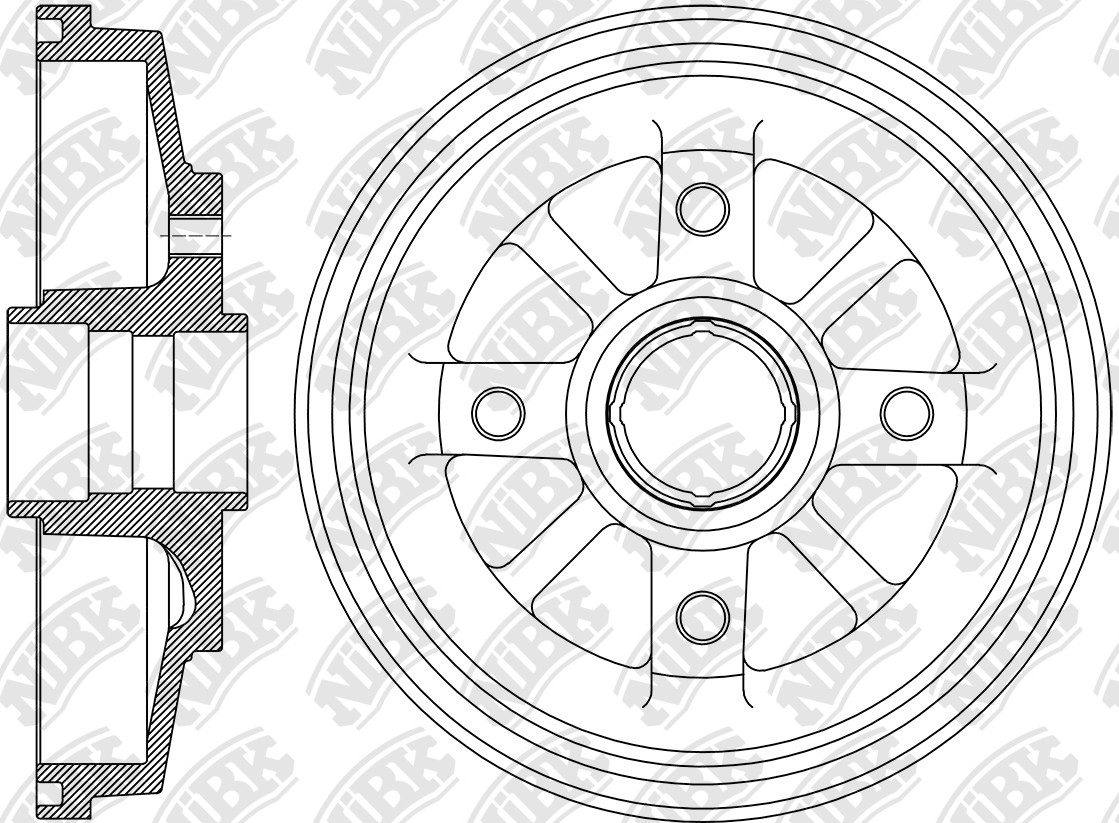

DRUM BRAKE » DN1499H

DN1499H

Specification

Outter Ø
230
Num. of holes
4
Hole Ø
12.5
Centering Diameter
45.2
Height
67.5
Pitch Circle Ø
100
Drum Ø
200
Structure Material
G3000
Notes
w/Bearing

Variation

DN1499[NiBK]

Cross Reference

KIA
58411-FD100
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

KIA   »   Rio

07.02~03.05 1300 A3E DC2 PN0702 DN1499DN1511H FN3347
07.02~10.05 1500 A5D DC24 5DR EU PN0702 DN1511HDN1499 FN3347
01.99~10.05 1500 A5D SDN / HB PN0702PN5232 DN1446DN1511HDN1499 FN3347
01.99~10.05 1500 A5E FDAD PN0702PN5232 DN1499DN1446DN1511H FN3347
