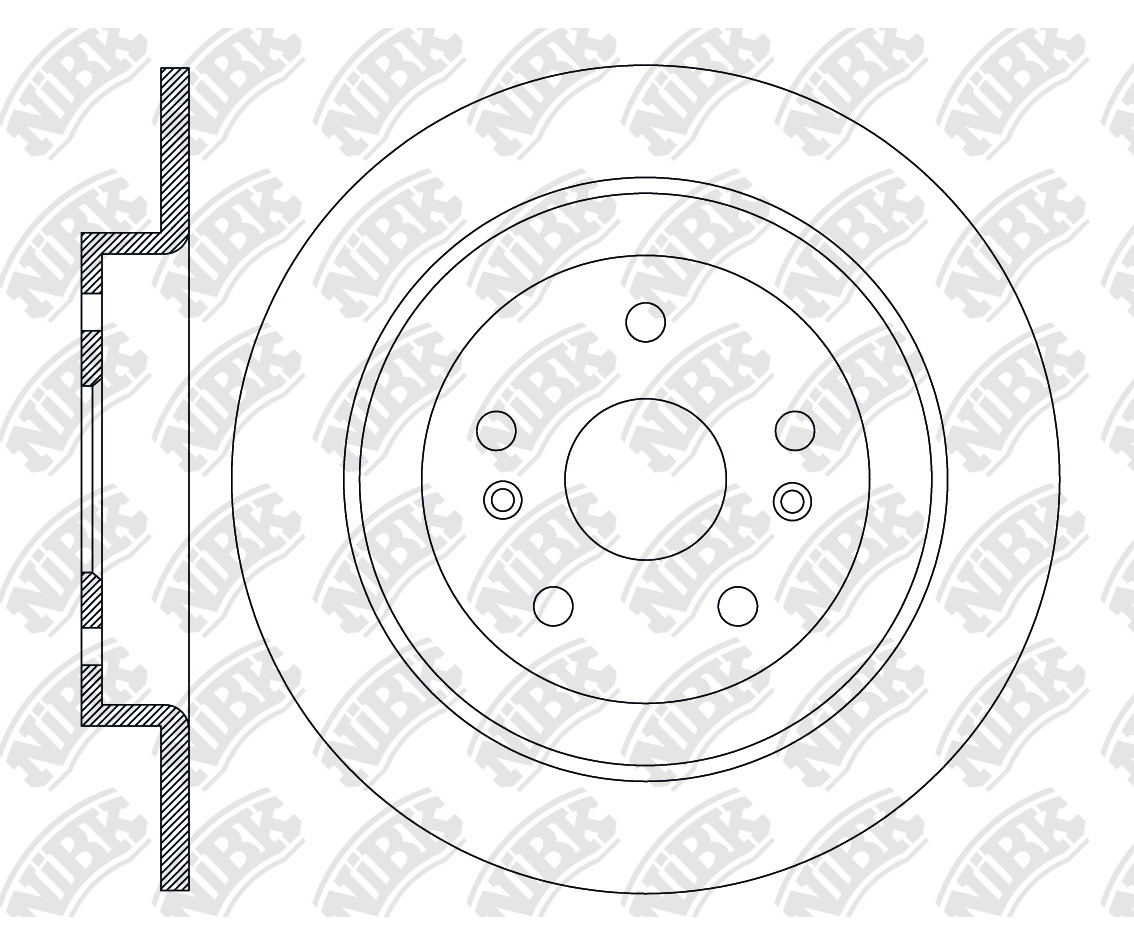

ROTOR DISC » RN2540

RN2540

Specification

Type
Solid
Outter Ø
311
Num. of holes
5
Hole Ø:
13.1
Disc Thickness (Max)
10
Disc Thickness (Min)
8
Height
34
Centering Diameter
62
Pitch Circle Ø
108
Drum Ø:
142.2
Front/Rear
Rear
Structure Material
G3000

Cross Reference

Chery
204000479AA
Chery
204001641AA
Chery
204005567AA
LADA
8460015159
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

CHERY   »   Tiggo 7 Plus

09.21~ 1500 SQRE4T15C T1E RN2326V PN0377 RN2540 PN6041

CHERY   »   Tiggo 7 Pro

03.20~ 1500 SQRE4T15C DB21B2L RN2326V PN0377 RN2540 PN6041
03.23~ 1500 SQRE4T15C T1EFL1 RN2652V PN8802 RN2540 PN6041

CHERY   »   Tiggo 7 Pro Max

09.21~ 1500 SQRE4T15C T1EFL1 RN2326V PN0377 RN2540 PN6041
08.23~ 1600 SQRF4J16B TDB21BXN RN2326V PN0377 RN2540 PN6041
08.23~ 1600 SQRF4J16E T1EFL1 RN2326V PN0377 RN2540 PN6041

CHERY   »   Tiggo 7L

03.25~ 1600 SQRF4J16B T1E PN0377 RN2540 PN6041

EXEED (CHERY)   »   LX

07.20~ 1500 SQRE4T15C T1C RN2326V PN0377 RN2540 PN6041
12.22~ 1600 SQRF4J16A T1C RN2326V PN0377 RN2540 PN6041

OMODA (CHERY)   »   C5

07.22~ 1600 SQRF4J16 T19C RN2326V PN0377 RN2540 PN6041

TENET   »   T7

07.25~ 1600 SQRF4J16B T1E PN0377 RN2540 PN6041

XCITE   »   X-Cross 7

05.24~ 1500 SQRE4T15C RN2326V PN0377 RN2540 PN6041
