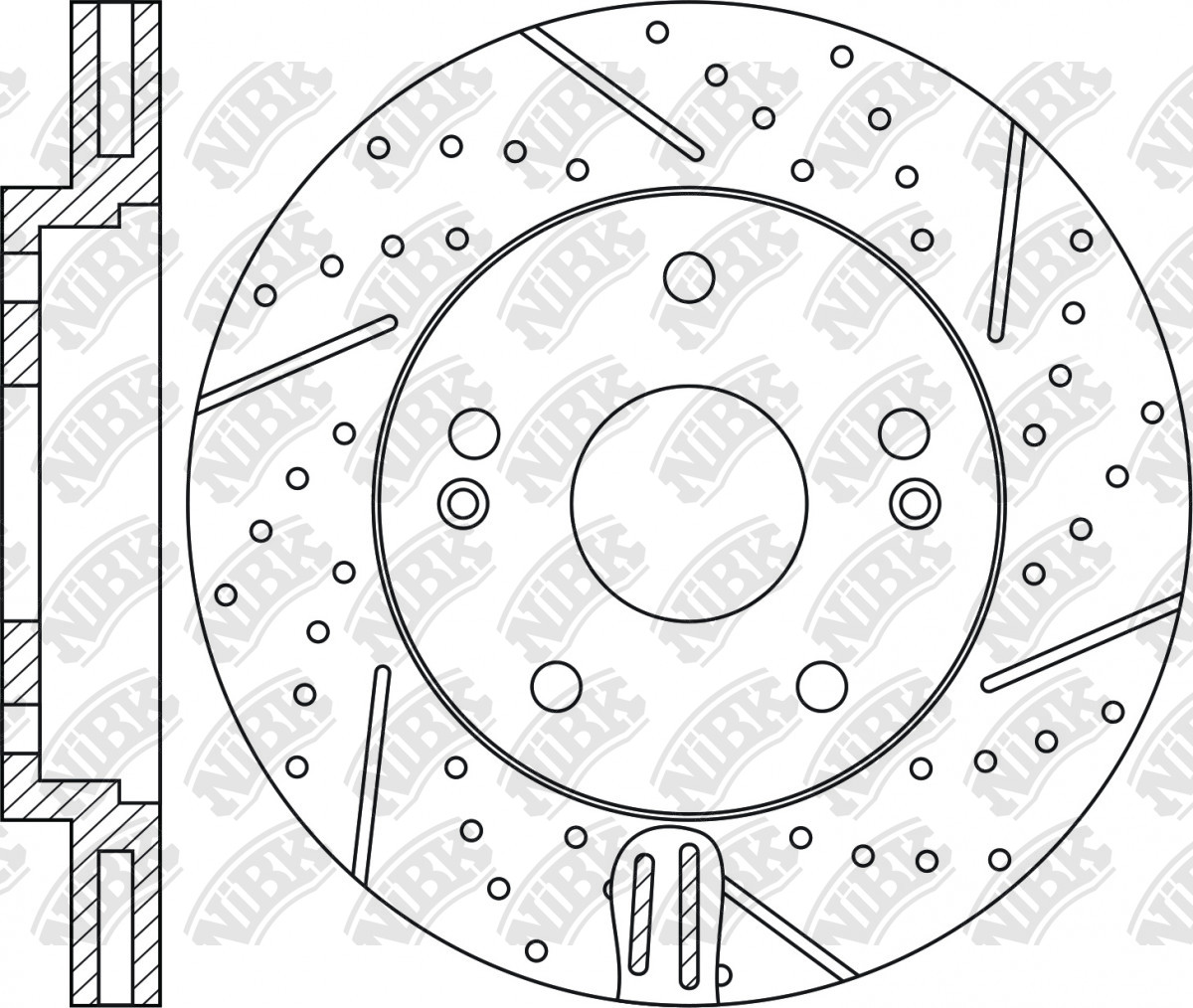

PERFORMANCE ROTOR DISC » RN1209DSET
Specification
Outter Ø
294
Num. of holes
5
Disc Thickness (Max)
26
Height
46.3
Centering Diameter
69
Pitch Circle Ø
114.3
Type 1:
Vented
Disc Thickness (Min)
24
Drum Ø:
145
Structure Material
GG20
Variation
Cross Reference
CHRYSLER
05105 514AA
CHRYSLER
2AMV5 514AA
CHRYSLER
5105514AA
HYUNDAI
51712-26100
MITSUBISHI
05105 514AA_SET
MITSUBISHI
4615A075
MITSUBISHI
4615A117
MITSUBISHI
4615A159
MITSUBISHI
4615A178
MITSUBISHI
4615A178_SET
MITSUBISHI
4615A227
MITSUBISHI
MN116331
Peugeot / Citroen
16 075 005 80
Peugeot / Citroen
16 106 230 80
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 01.07~12.14 | 2400 | ED3 | JSZS41 | RN1209V | PN3469 | RN1402 | PN3450 | FN23001 |
| 09.06~12.10 | 2700 | EER | JS | RN1209V | PN3469 | RN1367RN1402 | PN3502PN3450 | FN23001 |
| 04.12~04.17 | 1800 | 4N13 | RN1209V | PN3469 | RN1567RN1402 | PN25003PN3450 | FN23001 | |
| 04.12~04.17 | 2000 | 4B11 | RN1209V | PN3469 | RN1567RN1402 | PN25003PN3450 | FN23001 |
| 01.07~12.14 | 2400 | ED3 | JS#E41 | RN1209V | PN3469 | RN1367 | PN3502 | FN23001 |
| 01.07~12.10 | 2700 | EER | JSDP41 | RN1209V | PN3469 | RN1402 | PN3450 | FN23001 |
| 08.10~12.14 | 3600 | ERB | RN1209V | RN1367 |
| 05.06~06.09 | 2000 | ECD | PMBH49 | RN1209V | PN3469 | RN1402 | PN3450 | FN23001 |
| 06.06~11.12 | 2000 | ECN | PM_H49 | RN1366VRN1209V | PN3469 | DN1635RN1402 | PN3450FN1264 | FN23001 |
| 06.00~03.06 | 2000 | D4EA | PA00 LHD | RN1178VRN1209V | PN0103 | RN1176DN1521 | FN0581PN0539 | FN0644 |
| 06.00~03.06 | 2700 | G6BA | KM8S US | RN1209V | PN0103 | RN1176 | PN0539 | FN0644 |
| 06.00~03.06 | 2700 | G6BA | SM | RN1209V | PN0103 | RN1176 | PN0539 | FN0644 |
| 10.99~09.04 | 2000 | D4EA | RN1178VRN1209V | PN0103 | DN1474RN1176 | PN0539FN0581 | ||
| 10.04~09.08 | 2000 | D4EA | MH81 | RN1209VRN1178V | PN0103 | RN1176DN1474 | PN0539FN0581 | |
| 10.99~09.04 | 2700 | G6BA | RN1209V | PN0103 | RN1176 | PN0539 |
| 01.07~12.17 | 2000 | ECN | MKB_49 | RN1209V | PN3469 | RN1367 | PN3502 | FN23001 |
| 01.08~12.17 | 2400 | ED3 | MK__49 | RN1209V | PN3469 | RN1367 | PN3502 | FN23001 |
| 01.07~12.17 | 2400 | ED3 | MKJL74 | RN1209V | PN3469 | RN1367RN1402 | PN3450PN3502 | FN23001 |
| 01.06~12.17 | 2400 | ED3 | MKUH74 | RN1209V | PN3469 | RN1367 | PN3502 | FN23001 |
| 08.10~08.23 | 1600 | 4A92 | GA1W | RN1209V | PN3469 | RN1567RN1402 | PN3450PN25003 | FN23001 |
| 07.17~08.19 | 1600 | 4A92 | JMA#GA1W RHD | RN1209V | PN3469 | RN1567 | PN25003 | |
| 04.15~06.18 | 1600 | 9HD | GA7W | RN1209V | PN3469 | RN1567 | PN25003 | |
| 05.10~11.15 | 1800 | 4B10 | GA3W | RN1209V | PN3469 | RN1402RN1567 | PN25003PN3450 | FN23001 |
| 04.10~03.15 | 1800 | 4N13 | GA6W | RN1209V | PN3469 | RN1567RN1402 | PN25003PN3450 | FN23001 |
| 05.10~ | 2000 | 4B11 | GA2W | RN1209V | PN3469 | RN1567RN1402 | PN25003PN3450 | FN23001 |
| 05.13~06.18 | 2200 | 4N14 | GA8W | RN1209V | PN3469 | RN1567 | PN25003 |
| 12.09~11.11 | 2000 | 4B11 | CV4W | RN1209V | PN3469 | RN1404 | PN3450 | FN0625 |
| 12.11~12.19 | 2000 | 4J11 | CV2W | RN1209V | PN3469 | RN1567 | PN25003 | |
| 12.12~12.18 | 2300 | 4N14-T | CV1W | RN1209V | PN3469 | RN1567 | PN25003 | |
| 02.19~ | 2300 | 4N14-T | CV1W | RN1209V | PN3816 | RN1567 | PN3815 | |
| 12.06~12.19 | 2400 | 4B12 | CV5W | RN1209V | PN3469 | RN1404 | PN3450 | FN0625 |
| 10.17~ | 1500 | 4B40 | GK1W | RN1209VRN2273V | PN3816PN3813 | RN1567 | PN3815PN3814 | |
| 03.17~11.20 | 1500 | 4B40 | GK1W JPN | RN1209V | PN3816 | RN1567 | PN3815 | |
| 12.17~ | 2000 | 4B11 | GK2W | RN1209V | PN3816 | RN1567 | PN3815PN3814 | |
| 06.19~ | 2300 | 4N14-T | GK9W | RN1209V | PN3816 | RN1567 | PN3815PN3814 |
| 11.08~03.15 | 1800 | 4B10 | CX3A | RN1209V | PN3469 | RN1402 | PN3450 | FN23001 |
| 11.08~02.12 | 1800 | 4J10 | CY3A | RN1209VRN1366V | PN3469 | RN1402RN1367DN1355 | FN1267PN3502PN3450 | FN23001 |
| 12.08~03.15 | 2000 | 4B11-T | CX4A | RN1209V | PN3469 | RN1402 | PN3450 | FN23001 |
| 01.07~12.17 | 2000 | 4B11 | CY4A | RN1209VRN1403VRN1366V | PN3469PN3233 | RN1404RN1367RN1402 | PN3450PN3502 | FN23001 |
| 06.09~09.12 | 2000 | 4B11 | CW4W RHD | RN1209V | PN3469 | RN1402 | PN3450 | FN23001 |
| 04.12~ | 2000 | 4B11 | GF2W | RN1209V | PN3469 | RN1567 | PN3815PN25003 | |
| 01.12~ | 2300 | 4N14-T | GF6W | RN1403VRN1209V | PN3469PN3233 | RN1567 | PN3815PN25003 | |
| 09.05~09.12 | 2400 | 4B12 | CW5W | RN1209V | PN3469 | RN1402 | PN3450 | FN23001 |
| 09.05~09.12 | 2400 | 4B12 | CW5W JPN | RN1209V | PN3469 | RN1402 | PN3450 | FN23001 |
| 04.12~ | 2400 | 4B12 | GF3W | RN1209V | PN3469 | RN1567 | PN3815PN25003 | |
| 08.12~01.21 | 2400 | 4J12 | GF8W | RN1209V | PN3469 | RN1567 | PN3815PN25003 | |
| 11.06~04.12 | 3000 | 6B31 | CW6W | RN1403VRN1209V | PN3469PN3233 | RN1404RN1402 | PN3450 | FN0625FN23001 |
| 02.13~ | 3000 | 6B31 | GF4W | RN1209V | PN3469 | RN1567 | PN3815PN25003 |
| 07.10~07.20 | 2000 | 4B11 | GA2W | RN1209V | PN3469 | RN1402RN1567 | PN25003PN3450 | FN23001 |
| 01.15~ | 2400 | 4B12 | GA5W | RN1209V | PN3469 | RN1567 | PN25003 |
| 02.10~10.12 | 1800 | 4B10 | GA3W | RN1209V | PN3469 | RN1402 | PN3450 | FN23001 |
| 10.11~ | 1800 | 4J10 | GA4W | RN1209V | PN3469 | RN1402RN1567 | PN3450PN25003 | FN23001 |
| 08.12~11.22 | 1600 | 4A92 | GA1W | RN1209V | PN3469 | RN1402 | PN3450 | |
| 08.12~11.19 | 2000 | 4B11 | GA2W | RN1209V | PN3469 | RN1402 | PN3450 | |
| 12.18~11.22 | 2000 | 4J11 | GA9W | RN1209V | PN3469 | RN1402 | PN3450 |
