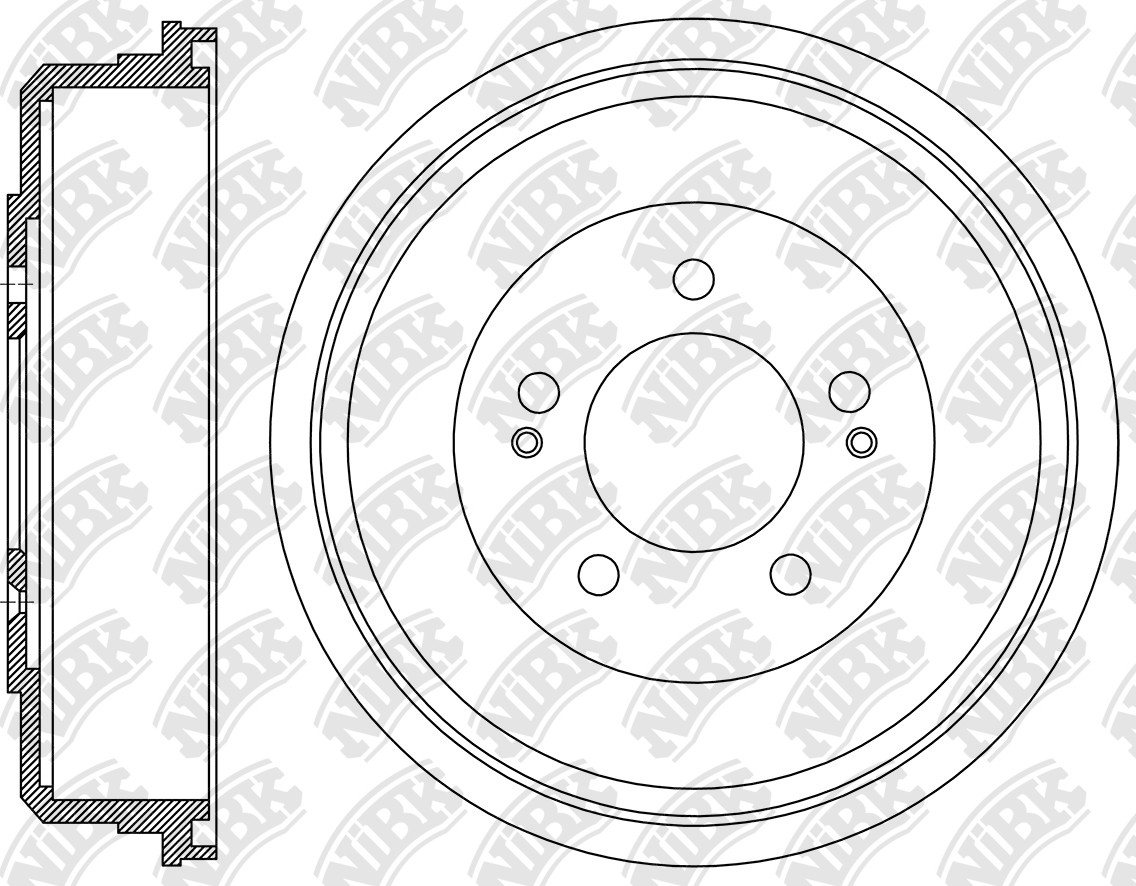

DRUM BRAKE » DN1521

DN1521

Specification

Outter Ø
299
Num. of holes
5
Hole Ø
12,8
Centering Diameter
76
Height
75.6
Pitch Circle Ø
114.3
Drum Ø
254
Structure Material
G3000

Cross Reference

HYUNDAI
58329-25500
HYUNDAI / KIA
58329-26000
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

HYUNDAI   »   Santa Fe 00

06.00~03.06 2000 D4EA PA00 LHD RN1178VRN1209V PN0103 DN1521RN1176 FN0581PN0539 FN0644
06.00~03.06 2000 G4JP SM RN1178V PN0103 RN1176DN1521 FN0581PN0539 FN0644
06.00~03.06 2400 G4JS SM RN1178V PN0103 DN1521RN1176 PN0539FN0581 FN0644
06.00~07.04 2400 G4JS SM US RN1178V PN0103 RN1176DN1521 FN0581PN0539 FN0644
