NiBK Brakes:: Application Cross Reference and Image for NiBK : ROTOR DISC : RN2496

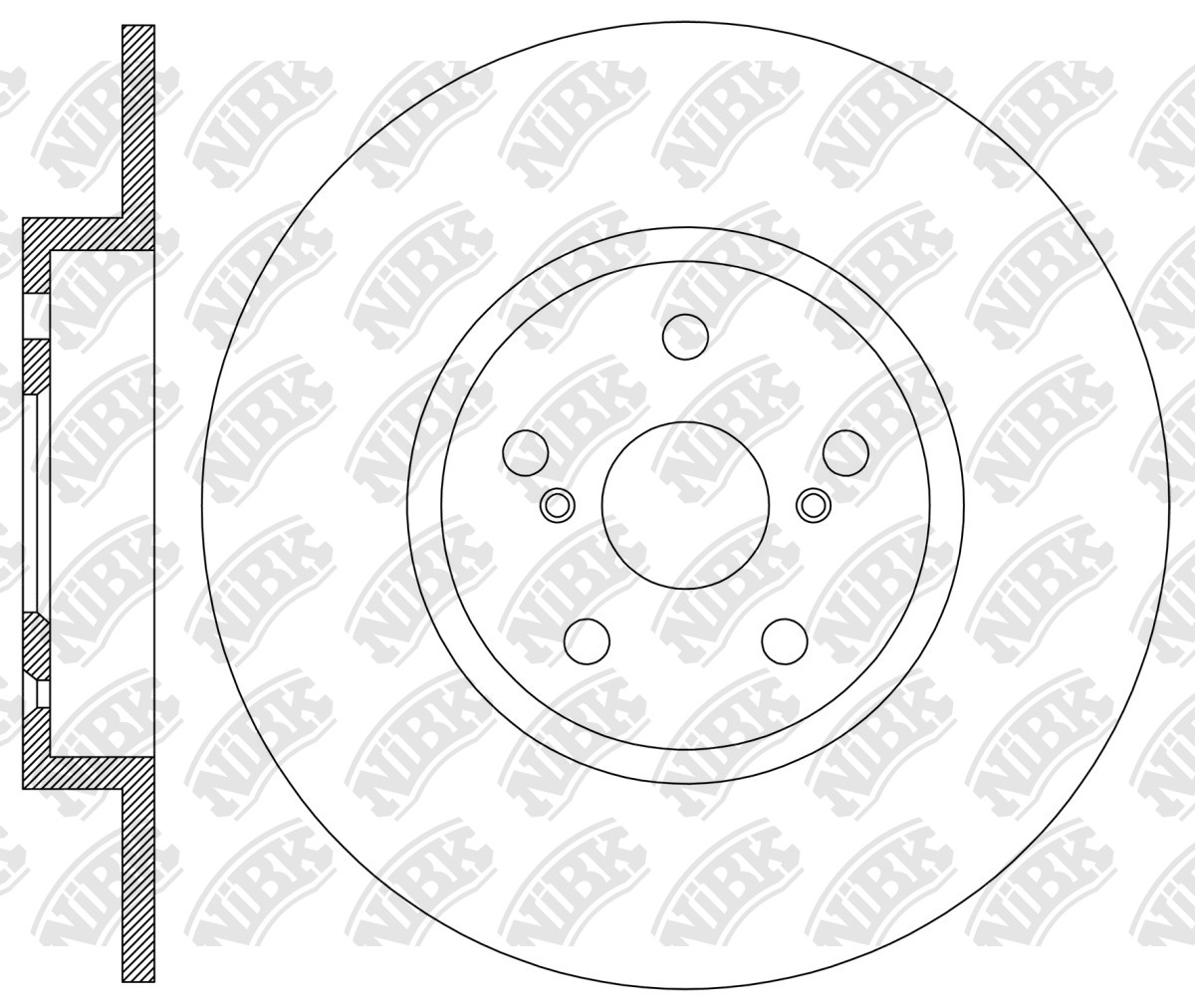

ROTOR DISC » RN2496

Specification

Type

Solid

Outter Ø

290

Num. of holes

5

Hole Ø:

14.8

Disc Thickness (Max)

11

Disc Thickness (Min)

9

Height

33.8

Centering Diameter

62

Pitch Circle Ø

114.3

Drum Ø:

155

Front/Rear

Rear

Structure Material

G3000

Cross Reference

TOYOTA

42431-05070

years	Eng	Eng No	Body	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

TOYOTA » Avensis

11.08~07.18	1600	1ZR-FAE	ZRT270L	RN1471V	PN1837	RN2496	PN1838
11.08~07.18	1800	2ZR-FAE	ZRT271L	RN1471V	PN1837	RN2496	PN1838
11.08~07.18	1800	2ZR-FAE	ZRT271R	RN1471V	PN1837	RN2496	PN1838
10.08~02.15	2000	1ADFTV	ADT270L	RN1471V	PN1837	RN2496	PN1838
11.08~05.15	2000	1ADFTV	ADT270R	RN1471V	PN1837	RN2496	PN1838
10.08~02.15	2000	2ADFTV	ADT271L		PN1843	RN2496	PN1838
11.08~07.18	2000	3ZR-FAE	ZRT272L	RN1471V	PN1837	RN2496	PN1838
07.11~09.15	2000	3ZR-FAE	ZRT272W	RN1471V	PN1837	RN2496	PN1838
