NiBK Brakes:: Application Cross Reference and Image for NiBK : ROTOR DISC : RN2439V

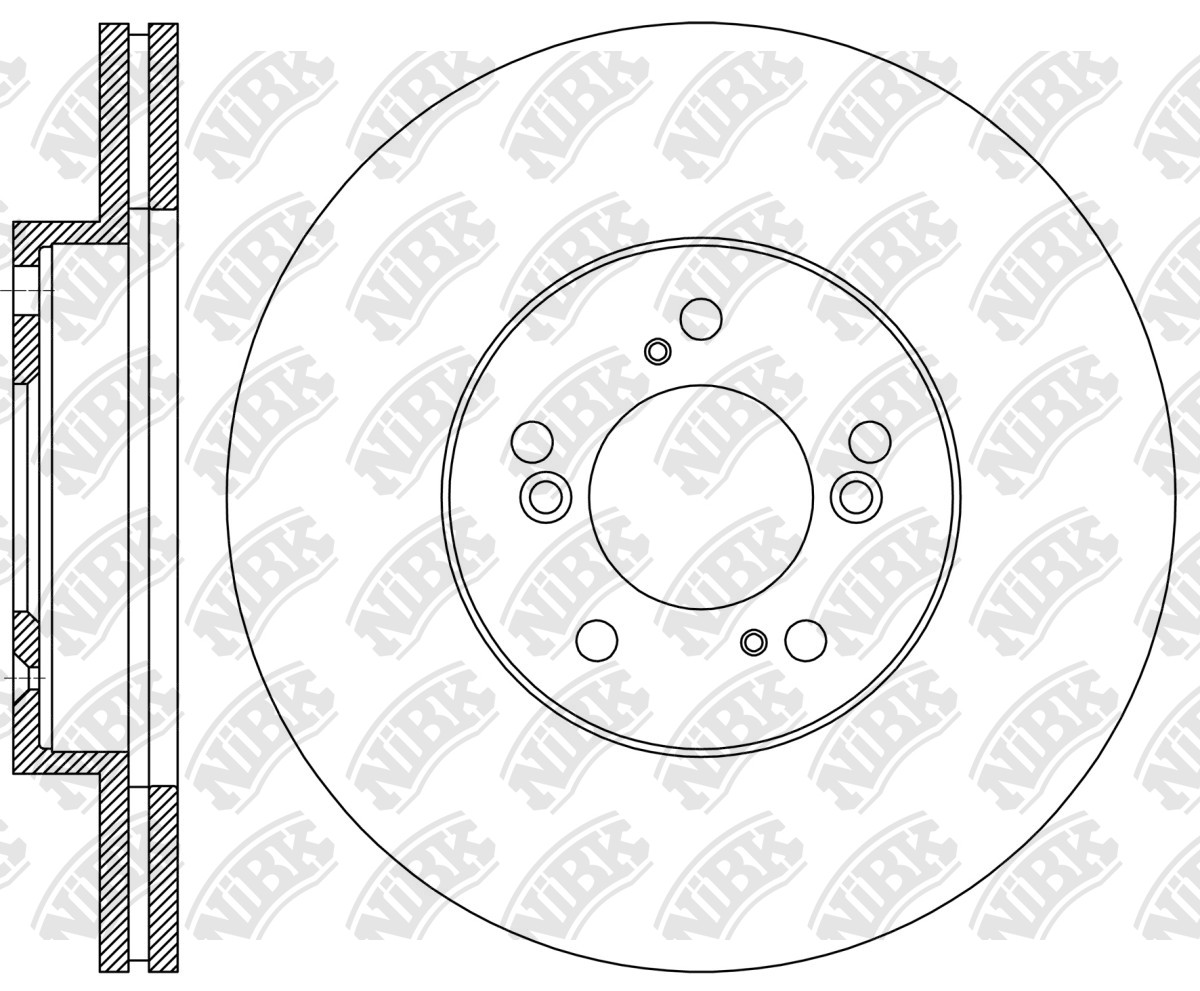

ROTOR DISC » RN2439V

Specification

Type

Vented

Outter Ø

262

Num. of holes

5

Hole Ø:

12.6

Disc Thickness (Max)

21

Disc Thickness (Min)

19

Height

44.7

Centering Diameter

64.1

Pitch Circle Ø

114.3

Drum Ø:

141

Front/Rear

Front

Structure Material

G3000

Cross Reference

HONDA

45251-T6P-H00

HONDA

45251-TDK-J00

years	Eng	Eng No	Body	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

HONDA » Freed

09.16~	1500	L15B	GB5 JPN	RN2439V	PN8868		FN5524
08.19~	1500	L15B	GB5 RHD	RN2439V	PN8868		FN5524
09.16~	1500	L15B	GB6	RN2439V	PN8868		FN5524
