NiBK Brakes:: Application Cross Reference and Image for NiBK : ROTOR DISC : RN2436V

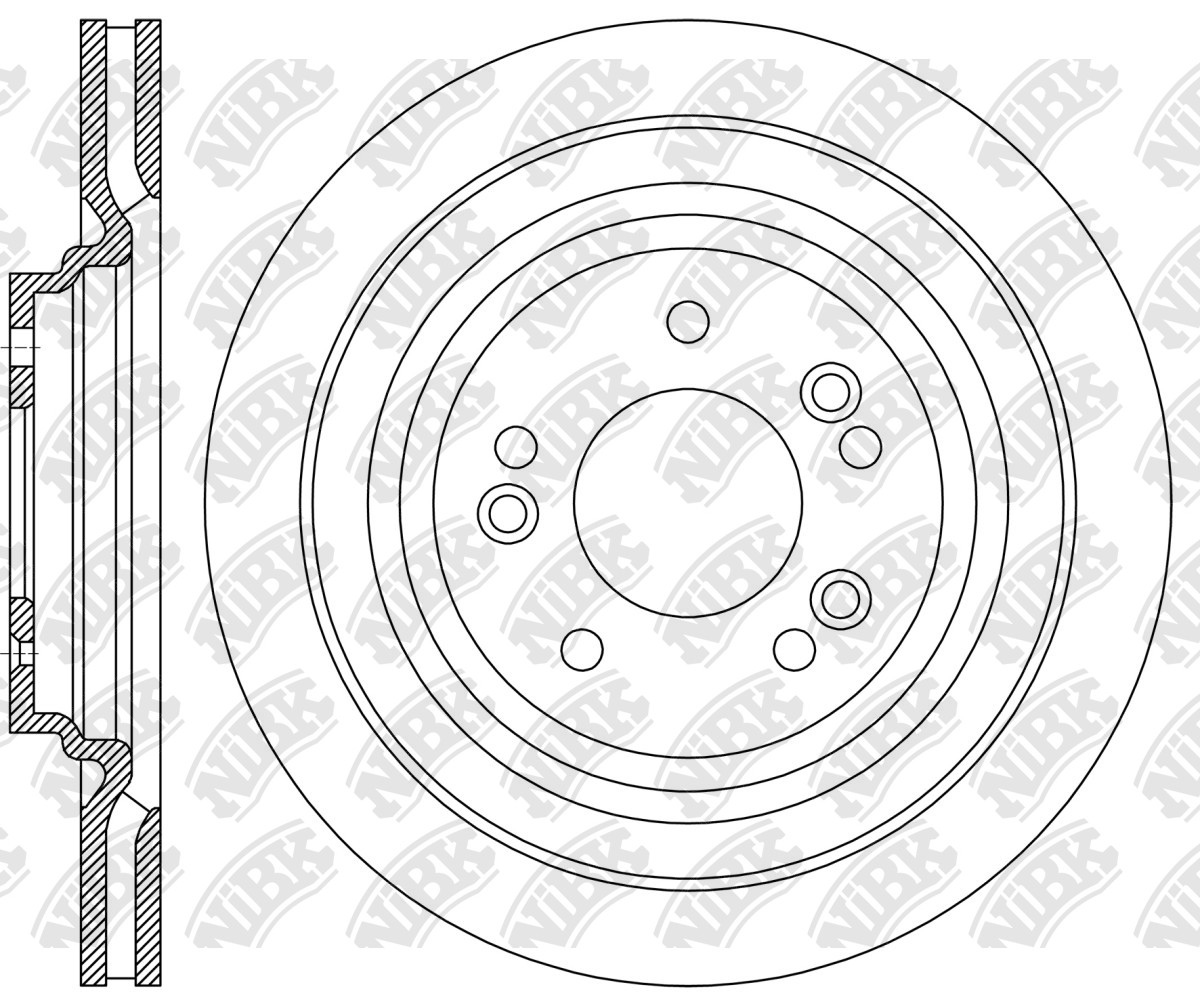

ROTOR DISC » RN2436V

Specification

Type

Vented

Outter Ø

360

Num. of holes

5

Hole Ø:

14.6

Disc Thickness (Max)

30

Disc Thickness (Min)

28

Height

56.7

Centering Diameter

69

Pitch Circle Ø

114.3

Drum Ø:

157

Front/Rear

Front

Structure Material

G3000

Cross Reference

HYUNDAI / KIA

51712-T6200

years	Eng	Eng No	Body	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

GENESIS » GV80

11.19~	2500	G4KR	JX1	RN2436V	PN6133 PN6144	RN2437V	PN6134
11.19~	3000	D6JA	JX1	RN2436V	PN6133 PN6144	RN2437V	PN6134
