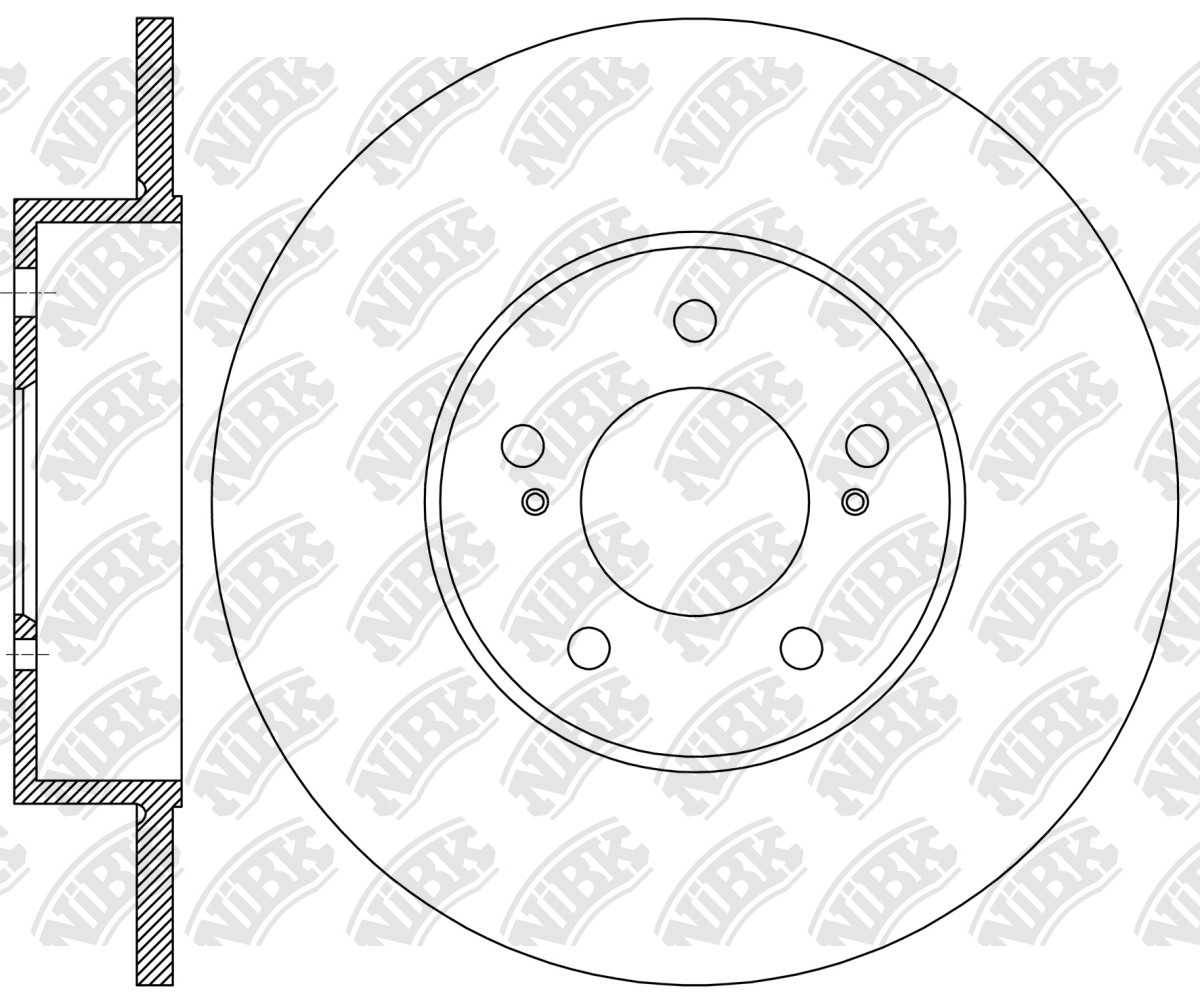

ROTOR DISC » RN2427

Specification

Type

Solid

Outter Ø

274

Num. of holes

5

Hole Ø:

14.6

Disc Thickness (Max)

10

Disc Thickness (Min)

8.5

Height

47.4

Centering Diameter

62

Pitch Circle Ø

114.3

Drum Ø:

158

Front/Rear

Rear

Structure Material

G3000

Cross Reference

SUZUKI

T4243-10232

TOYOTA

42431-02320

years	Eng	Eng No	Body	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

SUZUKI » Swace

05.20~

1800

2ZR-FXE

Z93BE LHD

RN2192V

PN1863

RN2427

PN1867

TOYOTA » Corolla

02.19~	1200	8NRFTS	NRE210L	RN2389V RN2192V	PN1863 PN1866	RN2400 RN2427	PN1867 PN1865
11.20~	1500	M15AFKS	MZEA11	RN2192V	PN1863	RN2247 RN2427	PN1867 PN1864
04.19~	1600	1ZR-FE	ZRE210R	RN2192V	PN1863	RN2427	PN1864
02.19~	2000	M20AFXS	MZEH12R	RN2032V	PN1858	RN2427	PN1867

TOYOTA » Corolla Altis

04.19~	1600	1ZR-FE	ZRE210R	RN2192V	PN1863	RN2427	PN1864
04.19~	1800	2ZR-FE	ZRE211L	RN2192V	PN1863	RN2427	PN1867
